7
3

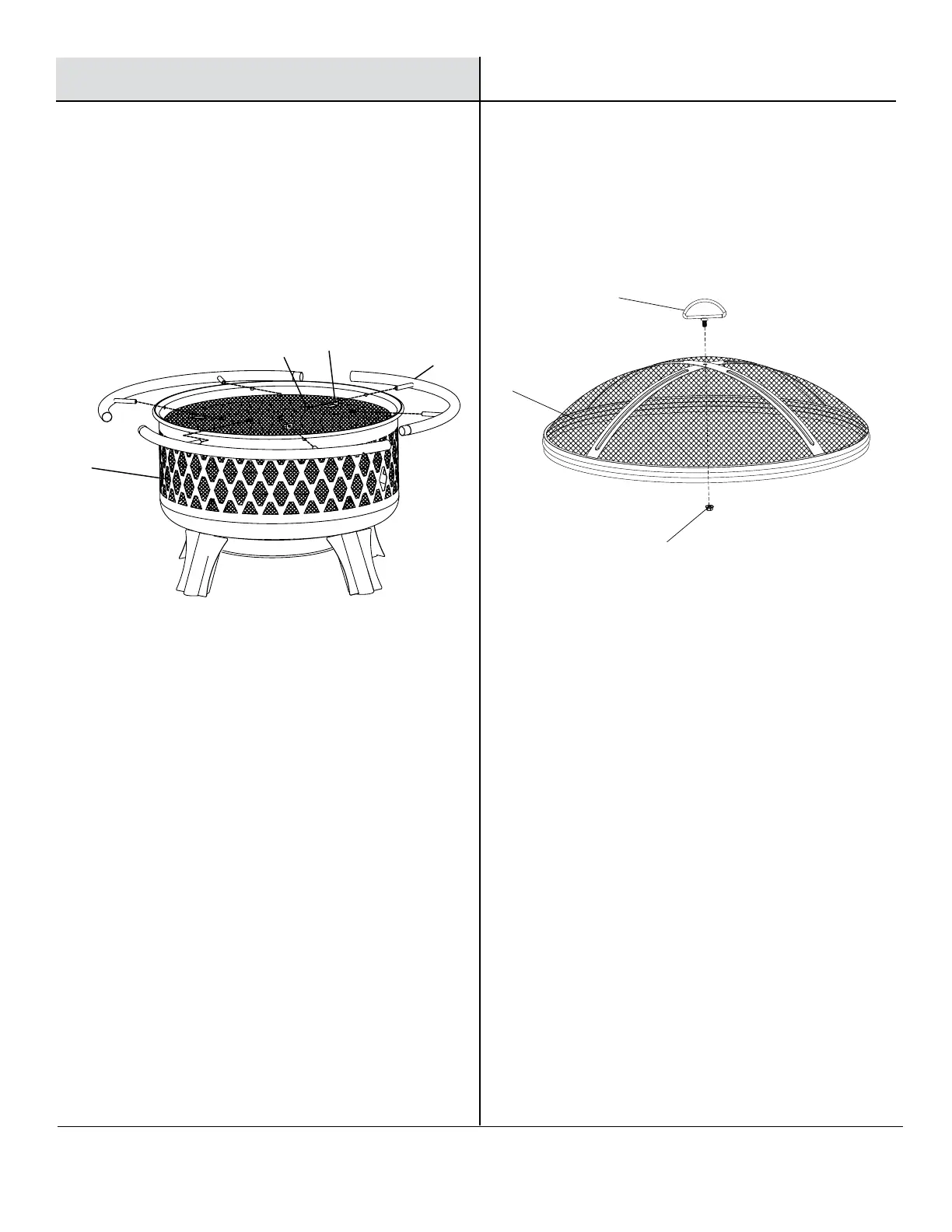

Assembling the Ring Sections
c
Assemble each of the three outer ring sections (F) to the fire bowl (H)
using two bolts (AA). For each ring section, assemble one mesh cover
rest (G) as shown between the bolt and the fire bowl. Space the mesh
cover rests (G) evenly. Tighten bolts securely.
F
G
H
AA
BB
B
A
Assembly
c
Assemble the mesh cover bracket (A) to the mesh cover (B) using
one M6 nut (BB).
4
Assembling the Mesh Cover
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
