HAMPTON BAY OT-70C - Hardware List; Assembly Steps; Step 1: Attach Side Frames

ITEM NO.: OT-70C
REVISED SEP 05, 2014
Printed in Vietnam
- 3 -

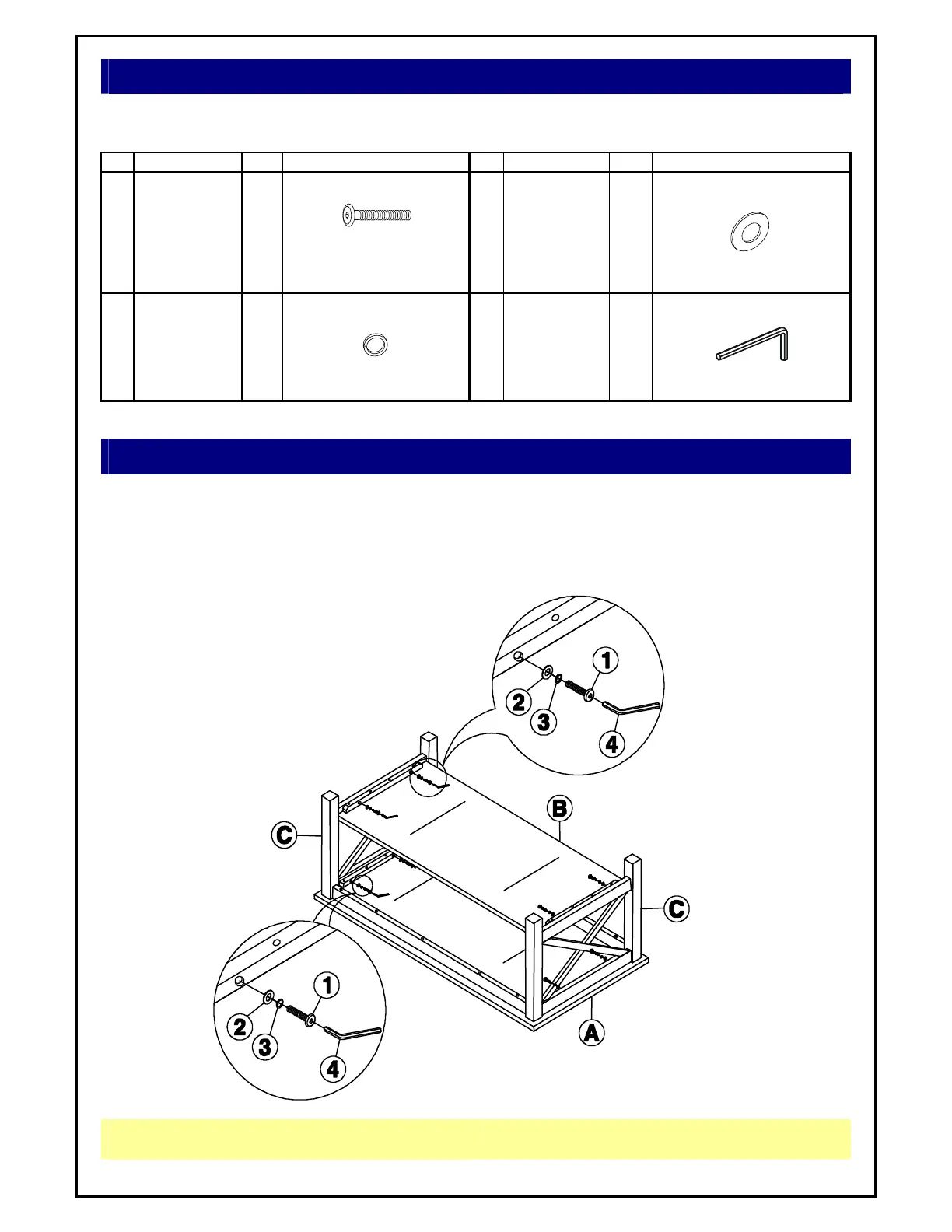

HARDWARE LIST
When unpacking, please carefully not to discard any parts with the packaging. Before continuing,
please make sure you have all of the following hardware:
NO
Description
Q’ty
Sketch
NO
Description
Q’ty
Sketch
1
Bolt
(M6x35mm)
8 2
Flat washer
(6.5x16mm)
8
3
Lock washer
(6.5x11mm)
8 4
Allen Key
(4x 80mm)
1
STEP 1
Attach side frame (C) to the top (A) with bolt (1), washer (2) and (3) as shown below. Tighten with
Allen key (4).
Attach side frame (C) to the shelf (B) with bolt (1), washer (2) and (3) as shown below. Tighten with
Allen key (4).
