INSTALLATION
WARNING:
• The transmitter wire’s positive terminal and minus terminal must
be connected to the positive terminal and minus terminal for the
reversing light on the car.
• Make sure to connect the wires to the right terminals. Incorrect
connection risks damaging the transmitter and the camera.
• Do not place the transmitter antenna near a metal part, or cover it.
This can reduce the transmission range.
1. Mount the camera in a suitable place. Use the supplied screws
and grommet if necessary.
2. Connect the transmitter to the power from the reversing light
via the trunk in the car (diagram 1).
– Put the transmitter’s red cable end in the red slot in the
splice clip.
– Put the reversing light’s positive wire in the other slot.
– Close the splice clip.

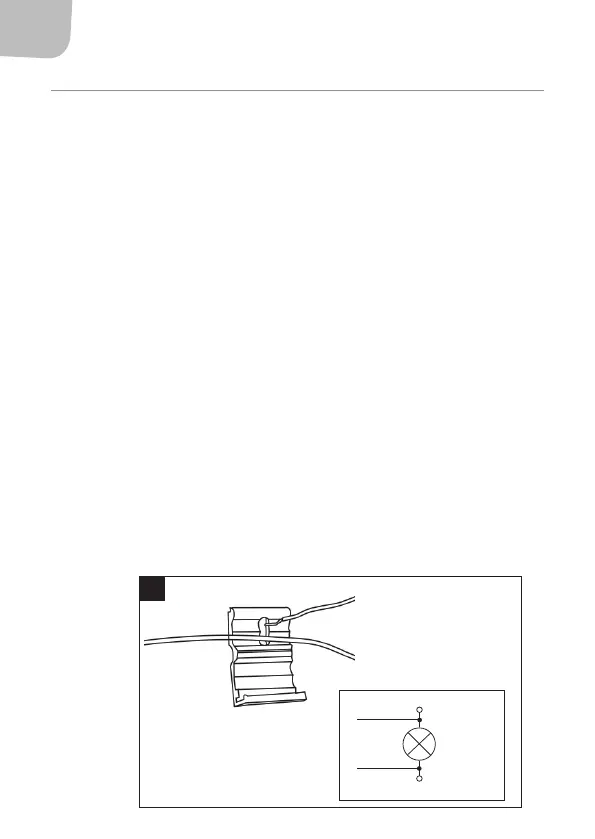

1
Transmitter wire
Reversing light wire
Red +
Back lamp
Black -
