Figure 73
Figure 74
Figure 72Figure 71
24 HANDICARE 2000 SIMPLICITY / STYLE INSTALLATION MANUAL

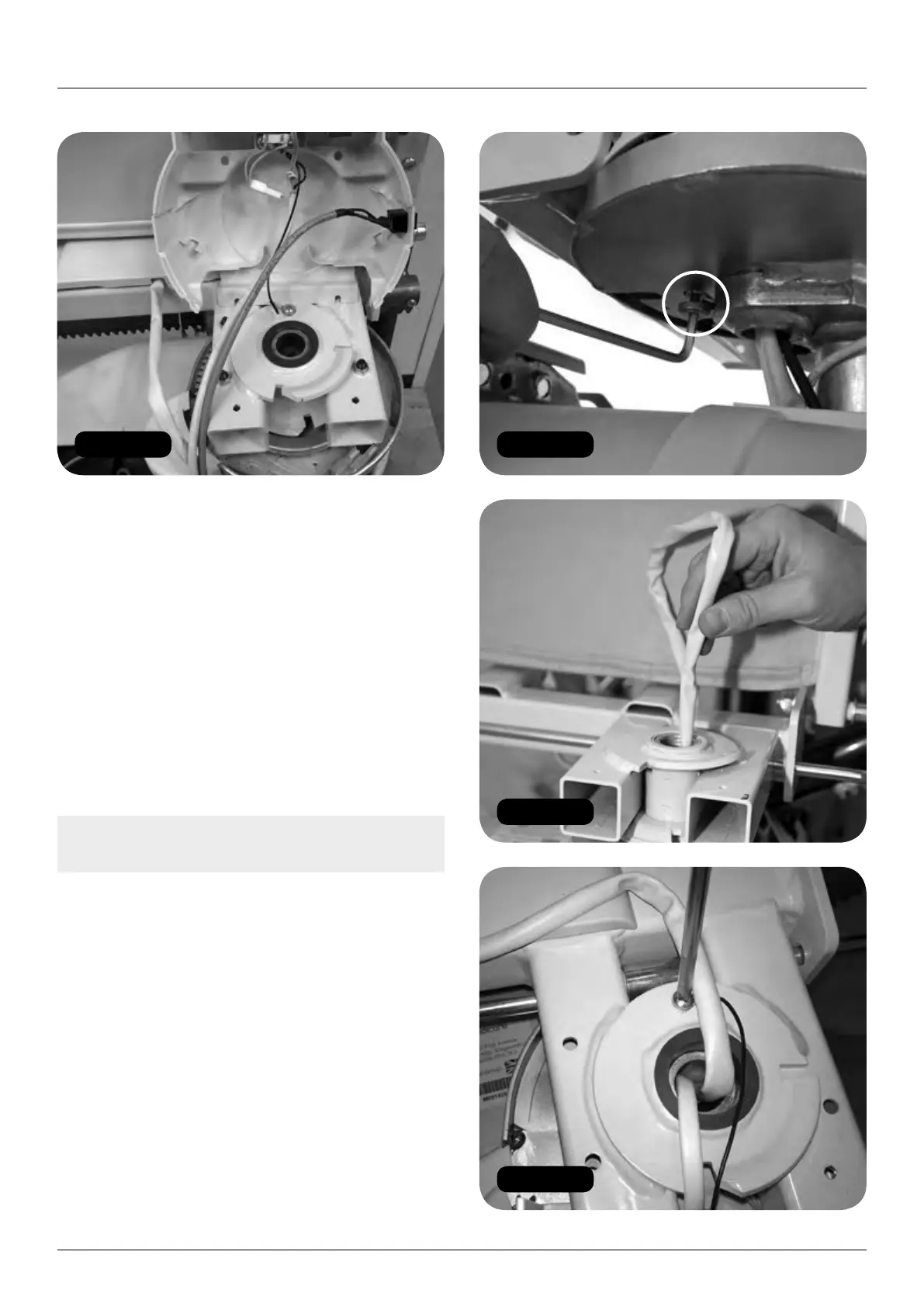

Fitting the Style seat (manual)
4 Drop the seat onto the stem (Figure 71).
5 Gently rotate the seat backwards and
forwards until the swivel locking peg locates.
6 Fully swivel the seat using the swivel levers.
7 Refit the seat base bolt and washer
(Figure 72).
8 Swivel the seat back to the drive position
using the swivel levers.
9 Remove the drive toggle and link cables and
make the seat cable connections by feeding
through the seat stem/post (Figure 73).
Note: Ensure that no cables are pinched or
trapped when fitting the Power Pack front cover.
10 Fit the earth cable to the top of the seat plate
(Figure 74).
11 Fit the plastic cap to the seat frame
(Figure 75).
12 Tuck the seat cables into the slot of the
plastic blanking plate (Figure 76).
To Next Page
