Handicare 2000 SIMPLICITY - Testing Procedures; All Variants Testing

ENGLISH
Figure 118
Figure 119
HANDICARE 2000 SIMPLICITY / STYLE INSTALLATION MANUAL 39
Testing
Testing
Items required: Tools required:
• Handsets • None
All variants
1 Sit on the lift and drive up and down the
track to ensure that the footplate clears
the nose of the risers along the complete
length of the track.
2 Check that the lift charges correctly:
a Drive the lift to the top charge contacts
and ensure that ‘-’ shows in the diagnostic
display.
b Drive the lift to the bottom charge contacts
and ensure that ‘-’ shows in the diagnostic
display.
3 Check the key switch operation:
a Turn the key to the off position and ensure
that the lift will not drive - ‘0’ should show in
the diagnostic display when you try to drive
the lift with the key switch in the off position.
b Turn the key switch back on.

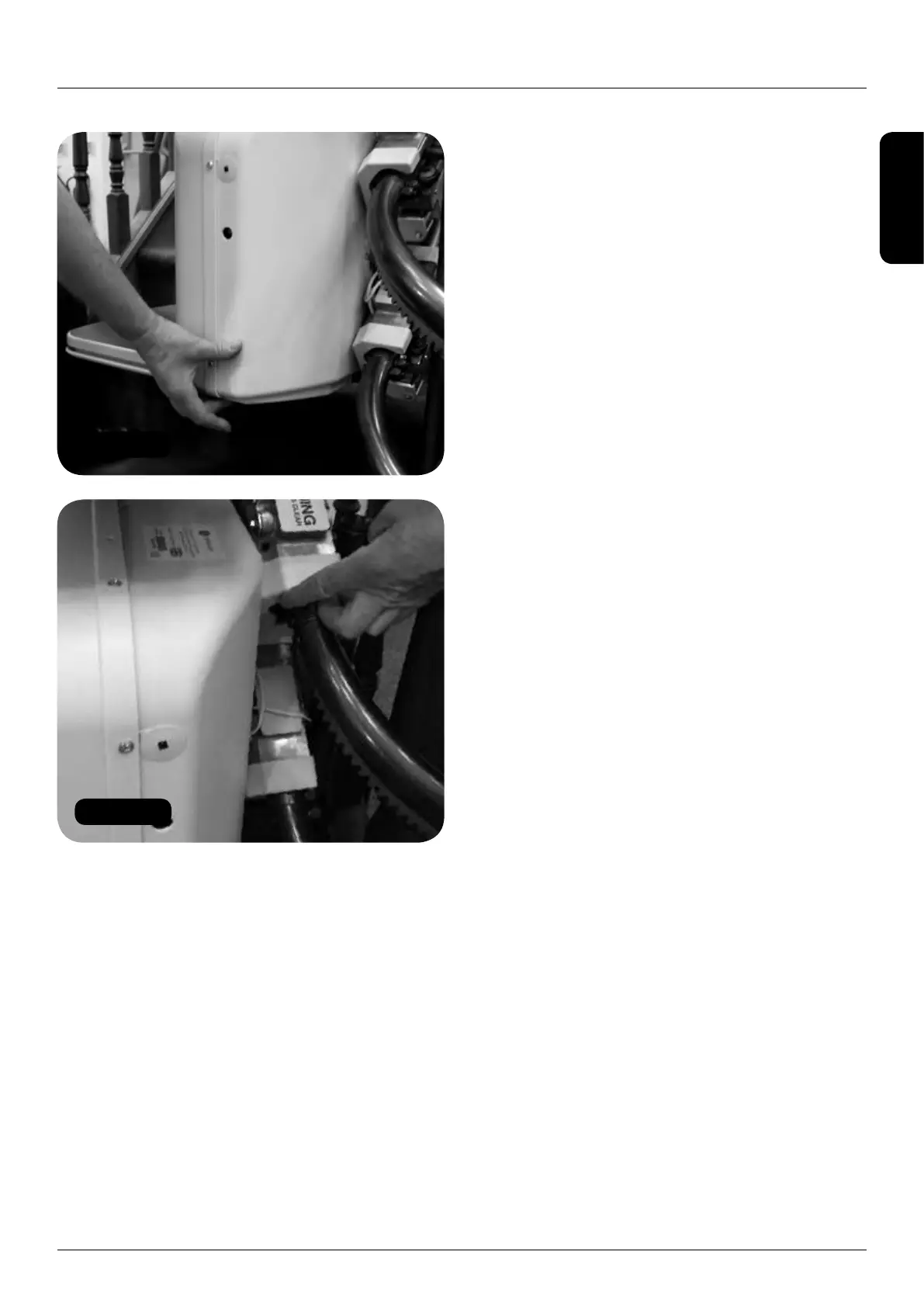

4 Ensure that the under chassis safety edge on
the power pack is functioning (Figure 118):
a Drive the lift in the down direction.
b Press the under chassis safety edge
– the lift should stop.
5 Ensure that all of the safety edges on the
trunnions are functioning (Figure 119):
a Drive the lift in the up direction.
b Press the upside top trunnion safety edge
– the lift should stop.
c Drive the lift in the up direction.
d Press the upside bottom trunnion safety
edge – the lift should stop.
e Drive the lift in the down direction.
