Figure 120 Figure 121
40 HANDICARE 2000 SIMPLICITY / STYLE INSTALLATION MANUAL
Testing
f Press the downside top trunnion safety
edge – the lift should stop. Drive the lift
in the down direction.
g Drive the lift in the down direction.
h Press the downside bottom trunnion safety
edge – the lift should stop.

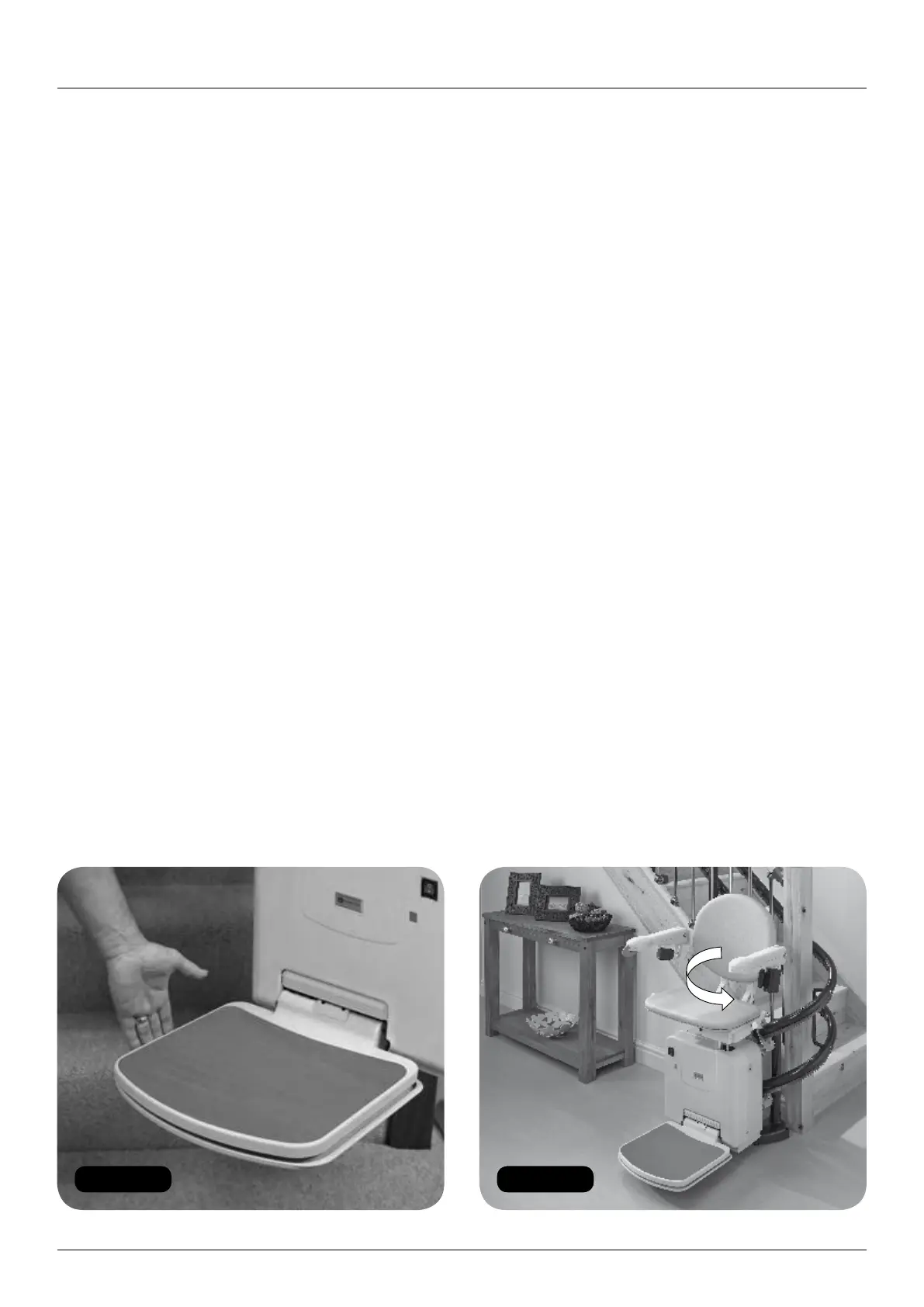

6 Check the safety edges on the footplate
(Figure 120):
a Drive the lift in the up direction.
b Press the upstairs edge of the footplate
– the lift should stop.
c Drive the lift in the down direction.
d Press the downstairs edge of the footplate
– the lift should stop.
e Drive the unit in the down direction.
f Press the underside of the footplate
– the lift should stop.
7 Check the swivel interlock (Figure 121)
a Drive the lift in the up direction.
b Swivel the seat – the lift should stop.
c Drive the lift in the down direction.
d Swivel the seat – the lift should stop.
8 Check the stopping distance of the lift:
a Using the handset, drive the lift in the down
direction.
b After the lift has travelled for about 2
seconds, release the down button.
c Check that the lift stopped within 20mm of
the point where the button was released.
Power footplate only
1 For seat operated versions:
a Lift the front seat squab.
b The footplate should lift.
c Lower the front seat squab.
d The footplate should lower.
Manual swivel only
1 Check the swivel interlock:
a Drive the lift in the up direction.
b Swivel the seat – the lift should stop.
c Drive the lift in the down direction.
d Swivel the seat – the lift should stop.
