Handicare 2000 SIMPLICITY - Page 52

2000 POWERED FOOTPLATE SCHEMATIC
FOOTPLATE
MOTOR
BLACK
RED
24VDC BATTERY
RED
M
M
B
-
M
+
B
+
M
-
M
FUSED B
+
F
M F
BLACK
RING
TERMINAL
TAB4 TAB5 TAB2 TAB3
FU1
TAB6
PART NO 000200.52002
TAB1
1
1
1
2
11
11
SPADE
CONNECTOR
SPADE
CONNECTOR
SPADE
CONNECTOR
BROWN
YELLOW
YELLOW
TO FOOTPLATE
CONTROL SWITCH
N/C
=
FOOTPLATE UP
N/O
=
FOOTPLATE DOWN
BLUE
(24VDC CONNECTOR IS AVAILABLE ON RED WIRE THAT
PLUGS INTO ON/OFF ROCKER SWITCH ON FRONT PANEL)
SWIVEL MOTOR
NOTE: THERE ARE NO
END LIMITS ON THE
POWER SWIVEL
FROM HAN201 PCB
DIP-SWITCH
NEGATIVE
GREY
ENSURE JUMPER IS
PRESENT ON CONNECTOR
M1 M2
ON
1 2 3 4
BLK 0
MOTOR STOPS USING
CURRENT LIMIT
NUMBER 1 = OFF
NUMBER 2 = OFF
NUMBER 3 = ON
NUMBER 4 = OFF
BLACK
COMMS
GRY 8
FROM HAN201 PCB
FILTER PCB
HAN201
RH MOTOR CONNECTIONS
BLUE (BLU 6) = M2
BROWN (WHT 9) = M1
LH MOTOR CONNECTIONS
BLUE (BLU 6) = M1
BROWN (WHT 9) = M2
52 HANDICARE 2000 SIMPLICITY / STYLE INSTALLATION MANUAL
Appendix 3

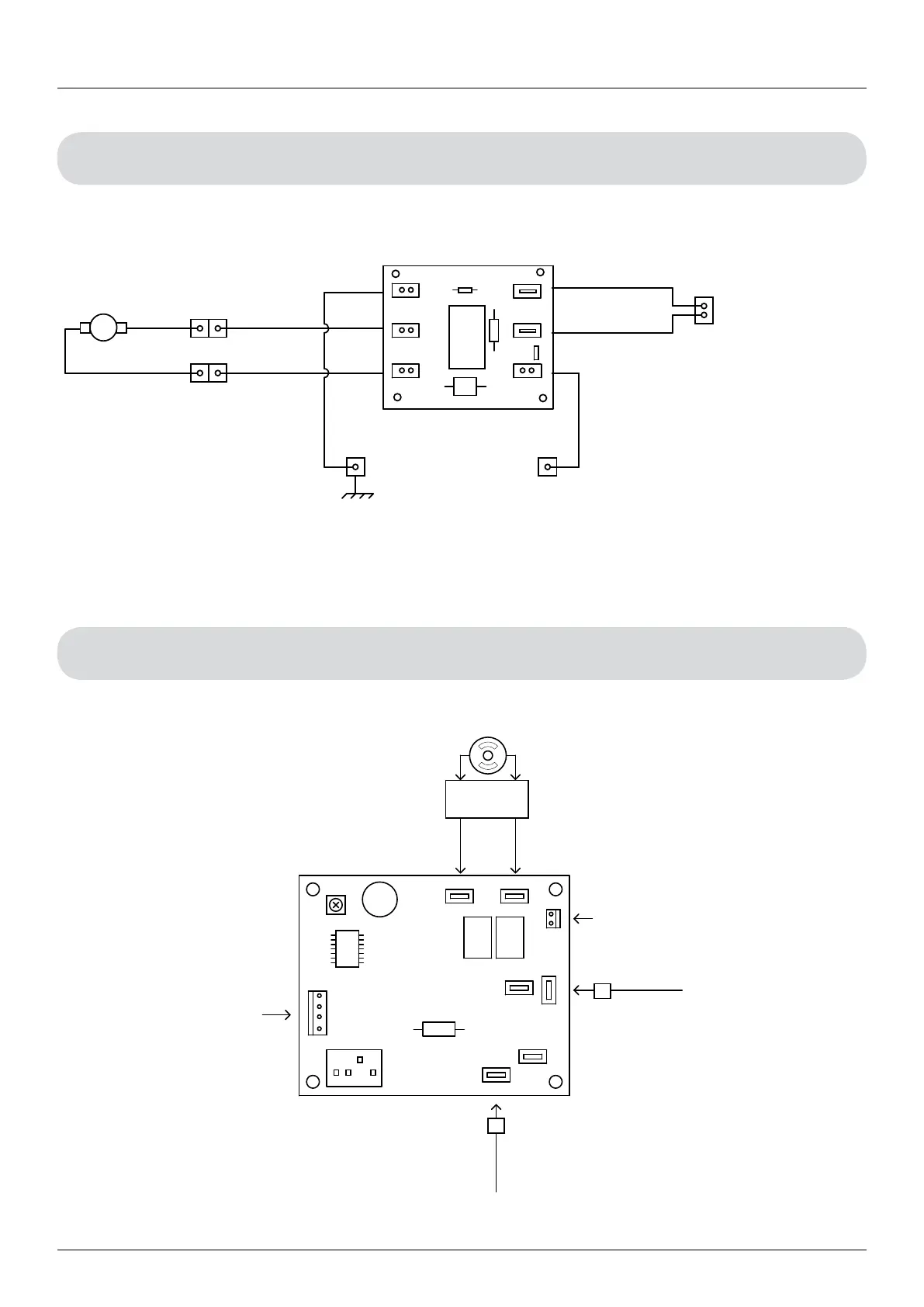

Power footplate PCB connections
HAN126 Style powered swivel PCB connections
