Handicare 2000 SIMPLICITY - Page 60

UP
722
507
57
91
46
127
49
66
Back to Knee line of travel
91
Remove Handrail
3
94
WARNING!
Less than 100mm
bulkhead clearance.
Modifications may
be required.
WARNING!
Less than 50mm
knee clearance.
Modifications may
be required.
Style Seat Applied Due To Knee Clearance
No
Riser
Height
Left
Riser
Height
Right
1199 198
2202 199
3200 202
4196 197
5199 197
6194 197
7199 198
8199 197
9197 198
10 201196
11 200197
12 195208
13 197192
14 200200
USER DETAILS
Standing Ht:
1650
mm
Seated Ht:
840
mm
Back To Knee:
580
mm
Seat Height:
485
mm
DRAWING NUMBER:
CONTRACT / CUSTOMER
DRAWN:
DATE:
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of HANDICARE
LTD.
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written perm
ission.
rtc-91602
Kamaldeep.Bilkhu
18/03/15
Companion Stairlifts
REV
COMMENTS
BY
DATE
REFERENCE
SMITH56033
PG NUMBER:
Hand of Rail: Rail Colour:
DRAWING NUMBER:
Light Grey -
RIGHT
rtc-91602
Track Bolts:
22
Fitting Kit
Joining plugs:
12
Additional Charge Points (section/ by stanchion)
Charge Points:
Standard
End Stops:
MK2
Magnets
:
0
Hand Sets:
RF
Number needed:
2
Stanchion Feet
Standard:
11
Lower:
1
Fan:
0
Wall Brackets
:
0
Heavy Duty Kit:
NO
Wire needed (m):
7
Wood Screws for feet:
36
Stanchion bolts:
24
Located on:
9
Located on:
Located on:
Seat Type:
2000 STYLE
Build parts/ track format
checked By:
Swivel Bracket:
NO
Brace Bar
:
0
UnderFloor Lowe
r
:
0
UnderFloor Standard
:
0
Parts for Build
Product type: RTC-2000
DO NOT SCALE
ALL DIMENSIONS IN MM UNLESS OTHERWISE STATED
1 2 3 4 5
13
11
10
9
6
7 8
12
14
15
60 HANDICARE 2000 SIMPLICITY / STYLE INSTALLATION MANUAL

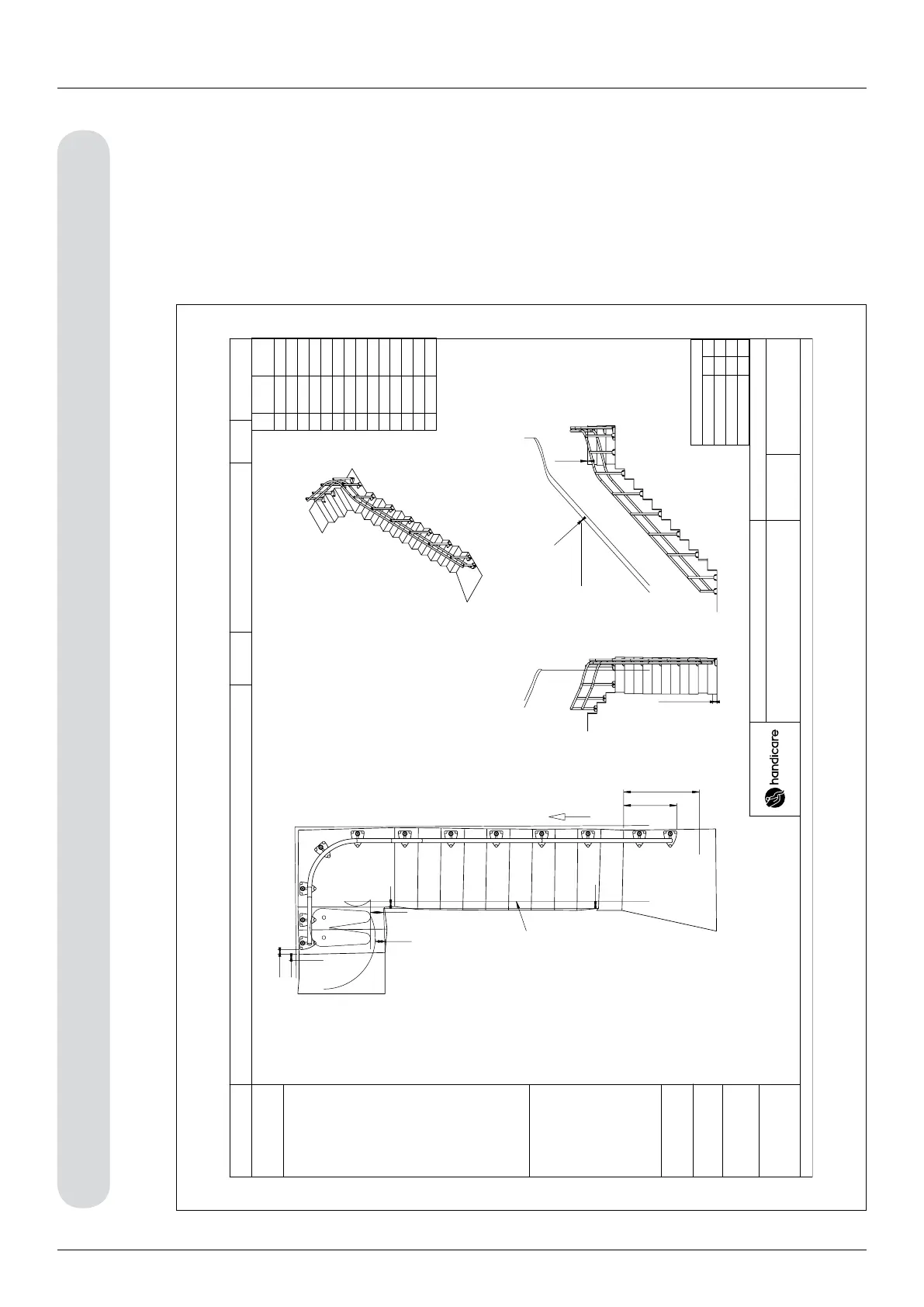

Appendix 4
External track details
1
FITTING KIT DETAILS
2
TRACK PARTS
REQUIRED
3
SEAT TYPE
4
SIDE OF STAIRS
FOR INSTALLATION LOOKING FROM THE BOTTOM
5
TRACK COLOUR
6
APPLICATIONS
ENGINEER
7
CUSTOMER
REFERENCES
8
DRAWING NUMBER
9
TRACK SIDE VIEW
10
CLIENT DETAILS
11
TRACK ISOMETRIC
VIEW
12
TRACK PLAN VIEW
13
SPECIAL
INSTRUCTIONS
14
TRACK FRONT
VIEW
15
RISER HEIGHT
DETAILS
