Handler 26A RED WING - Parts List

26A Red Wing Lathe Instruction 7
RED WING LATHE PARTS LIST
(1) PARTS LIST:

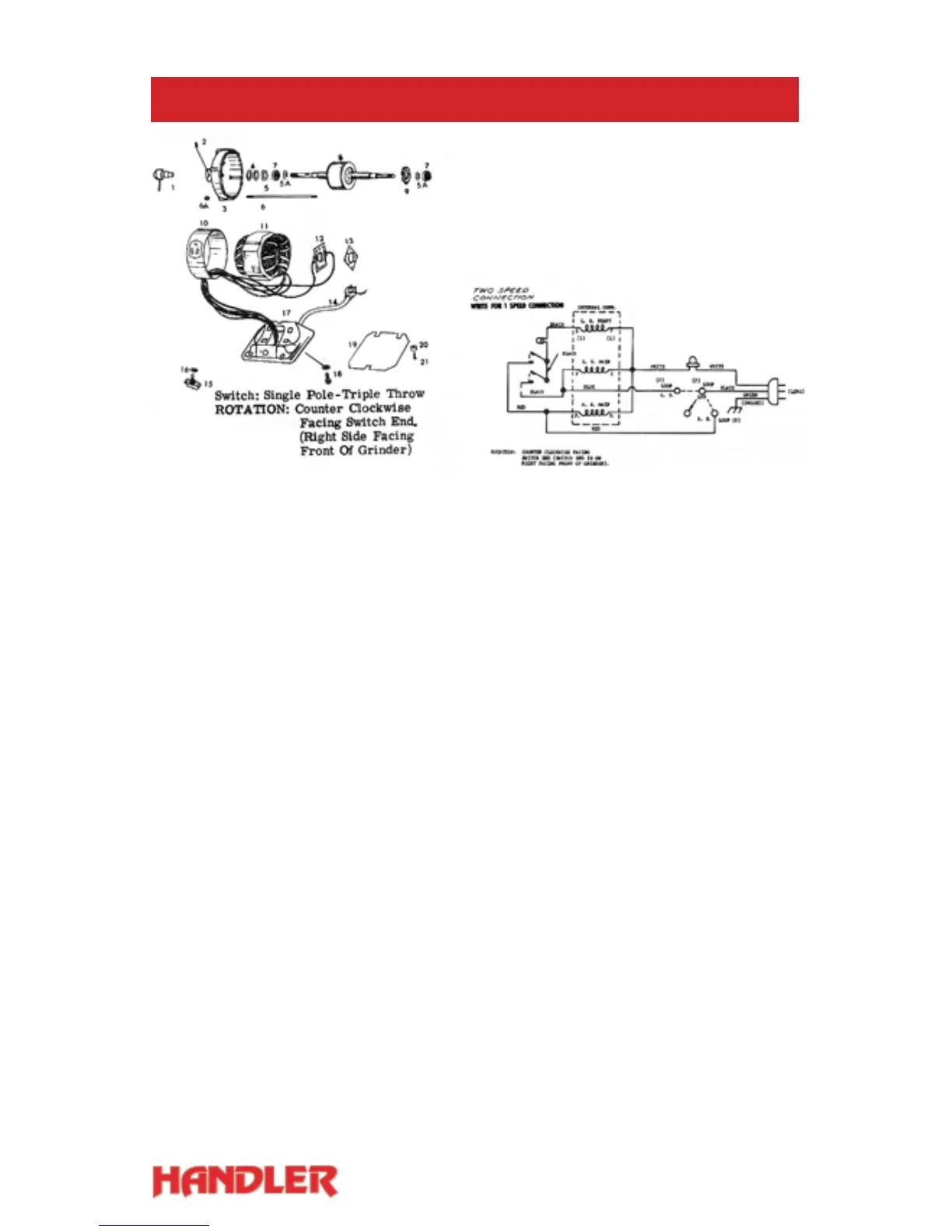

Locate part number on diagram. Specify, on order, identifying part number. Supply all data
on nameplate of your Red Wing Lathe - especially the serial number appearing on the last
line. (L = Left; R = Right)
PARTS:
No.1 Chuck Remover (Throw Off) -
Specify L or R
No.1a Chuck Remover Male Part -
Specify L or R
No.1b Chuck Remover Female Part -
Specify L or R
No.1c Handle for Throw-off
No.2 Chuck Remover -
set screw for male part
No.3 End Bell - one speed -
Specify L or R
No.4 Spacing Washers
No.5 Spring Washers
No.5a Bearing spacer - one speed -
Specify L or R
No.6 Thru-Bold with nuts
No.7 Bearings - two per set -
for right and left side - 1- and 2-
speed lathes.
No.8 Rotor -
specify whether 1 or 2 speed lathe
No.9 Centrifugal Switch -
specify whether 1 or 2 speed lathe
No.10 Field Ring - specify whether 1 or
2 speed lathe
No.11 Stator - specify whether 1 or 2
speed lathe
No.12 Hood Switch - specify whether 1 or
2 speed lathe
No.13 Insulating Washer - for hood
switch - one speed lathe
No.14 Supply Cord - including 2 prong
adaptor
No.14a 2 prong adaptor only
No.15 Switch - two speed (toggle)
No.15a Switch - one speed
No.16 Switch Washer
No.17 Base, Low - 4 1/2” shaft height
No.17a Base, high - 6” shaft height
No.18 Base Bolts and Washers -
low base (4-2 speed, 2-1 speed)
No.19 Base Plate
No.20 Rubber Base Grommets (set, 4)
No.21 Screws for above (set, 4)
No.22 Lubri-Plate - 1 3/4 oz tube
