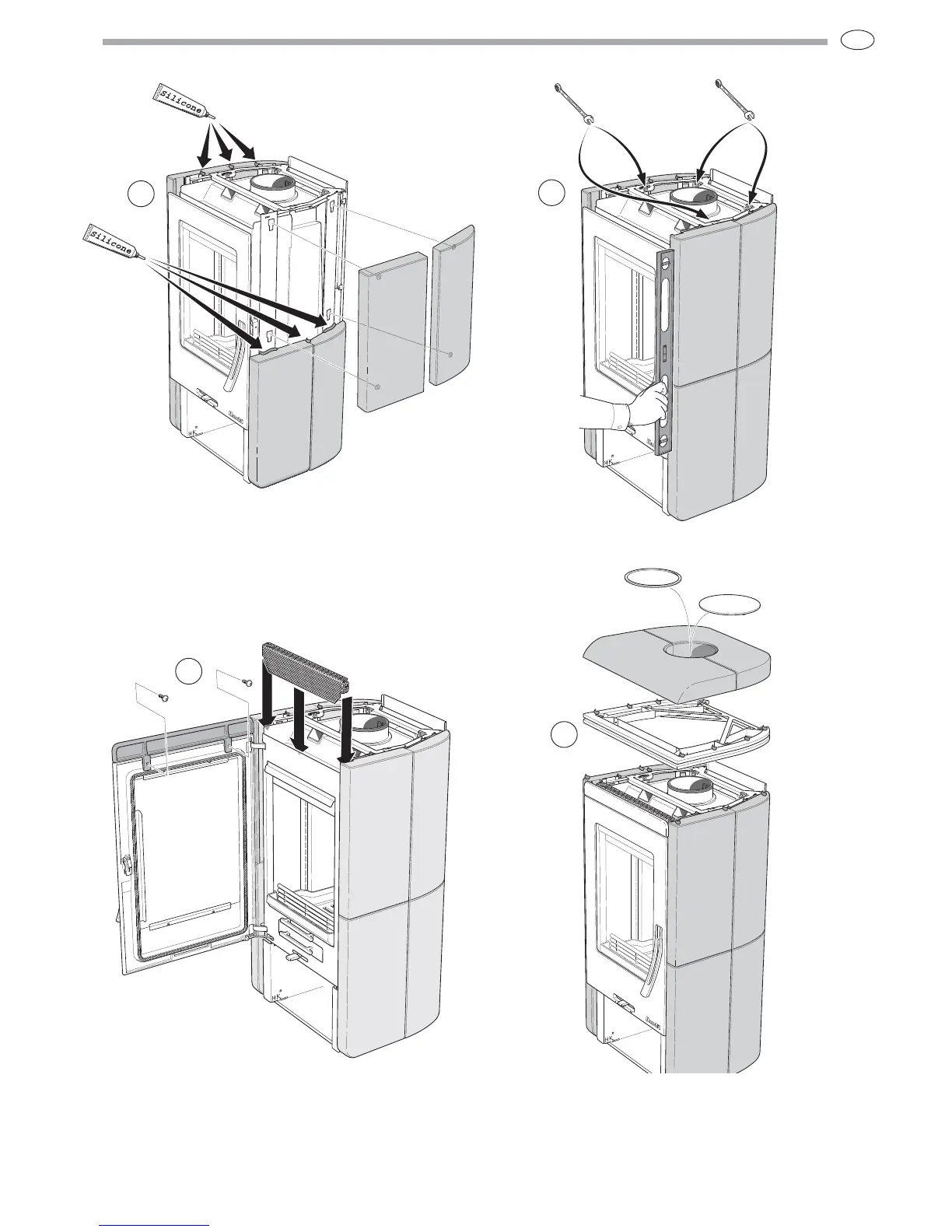

Apply beads of silicone to the edge of the profiles and the
lowest stones. Also apply a blob, near the inside, over the
joint between the lower stones. Hang the upper stones in
position and apply silicone to the edge of the profiles.
Adjust the soapstone panels to each other, door and back.
Screw the top frame into place. Start with the front screws.
Screw the door extension into the door. Leave a 2 mm
gap between the door extension and the door. Slide
down the valence inside the front of the body and
allow the tabs to clamp against the sides of the body.
Apply six small blobs of silicone to each side of the
soapstone sides. Position the top discs and apply eight
small blobs of silicone to the upper side. Then place the
two-piece soapstone top on top of the top discs. Depending
on whether the stove has a rear connection or top
connection, a cover panel or cover ring is used.
