Installing accessories · Drawer

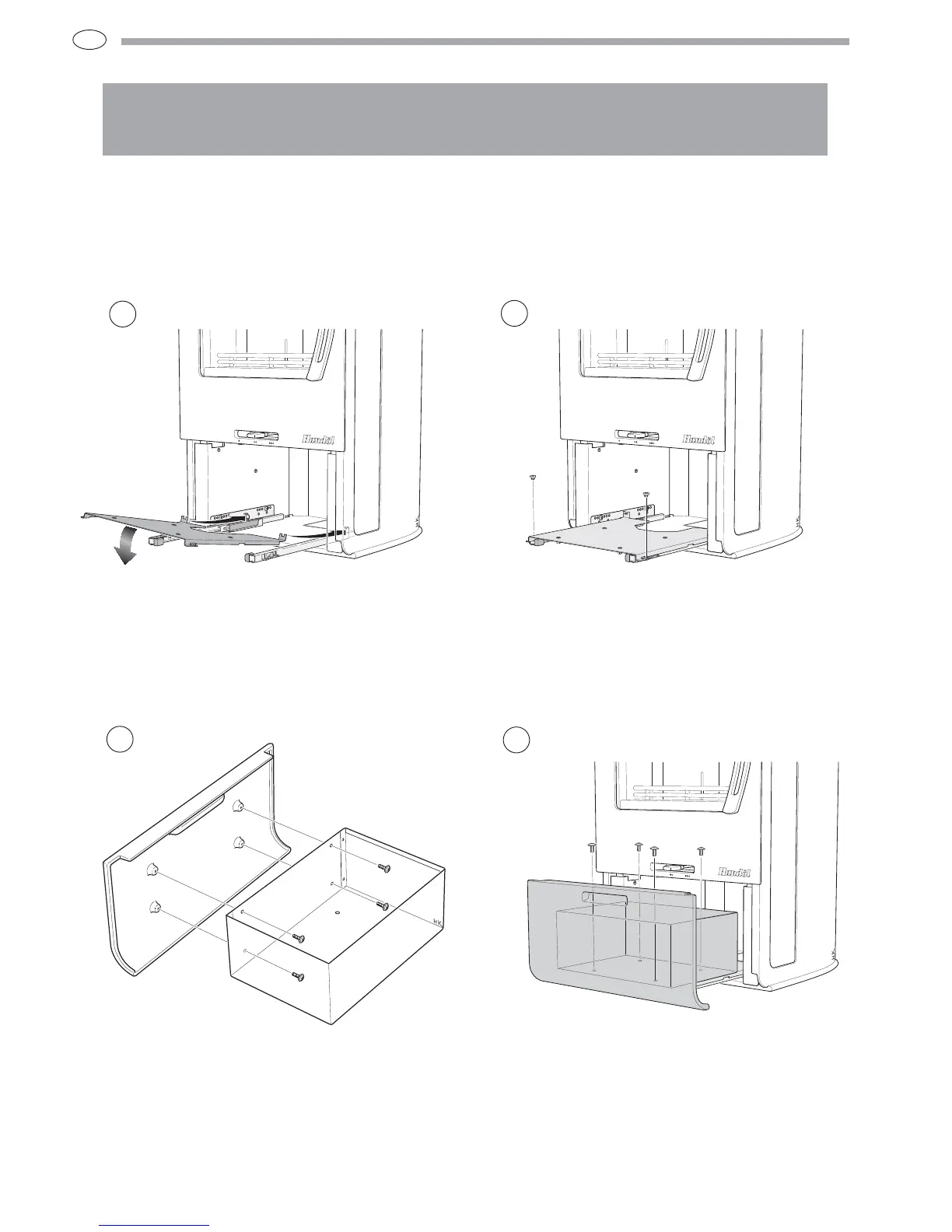

Align the drawer mounting as illustrated so that the
drawer mounting notches come under the drawer rail
lugs.
Screw the drawer mounting into place at the front end
using the star screws as illustrated.
Install the drawer on the pull-out unit using the four Allen
screws. Adjust the drawer so that it is centrally positioned in
relation to the hatch and then tighten the screws.
Screw the drawer into place in the cast iron front using
the Allen screws.
2
3
4
5
