Handol 31 - Installation Distances for H33 T

GB
66
551
Tilluftsstos Ø64
1073
2000
Brännbart tak
523
462
199
Tilluftsstos Ø64
Hål i gjuten fotplatta Ø120
A 956
B 868
D 189
C 75
E 117
F 141
Utv. Ø150
366
Brännbar vägg
100
732
781
289
Brännbar vägg
100
415
43
300
200
100
300 400
200
100
690
Tillåtet område för
brännbart material
248
Brandmur
50*
50
326
316
Brandmur
50*
682
710

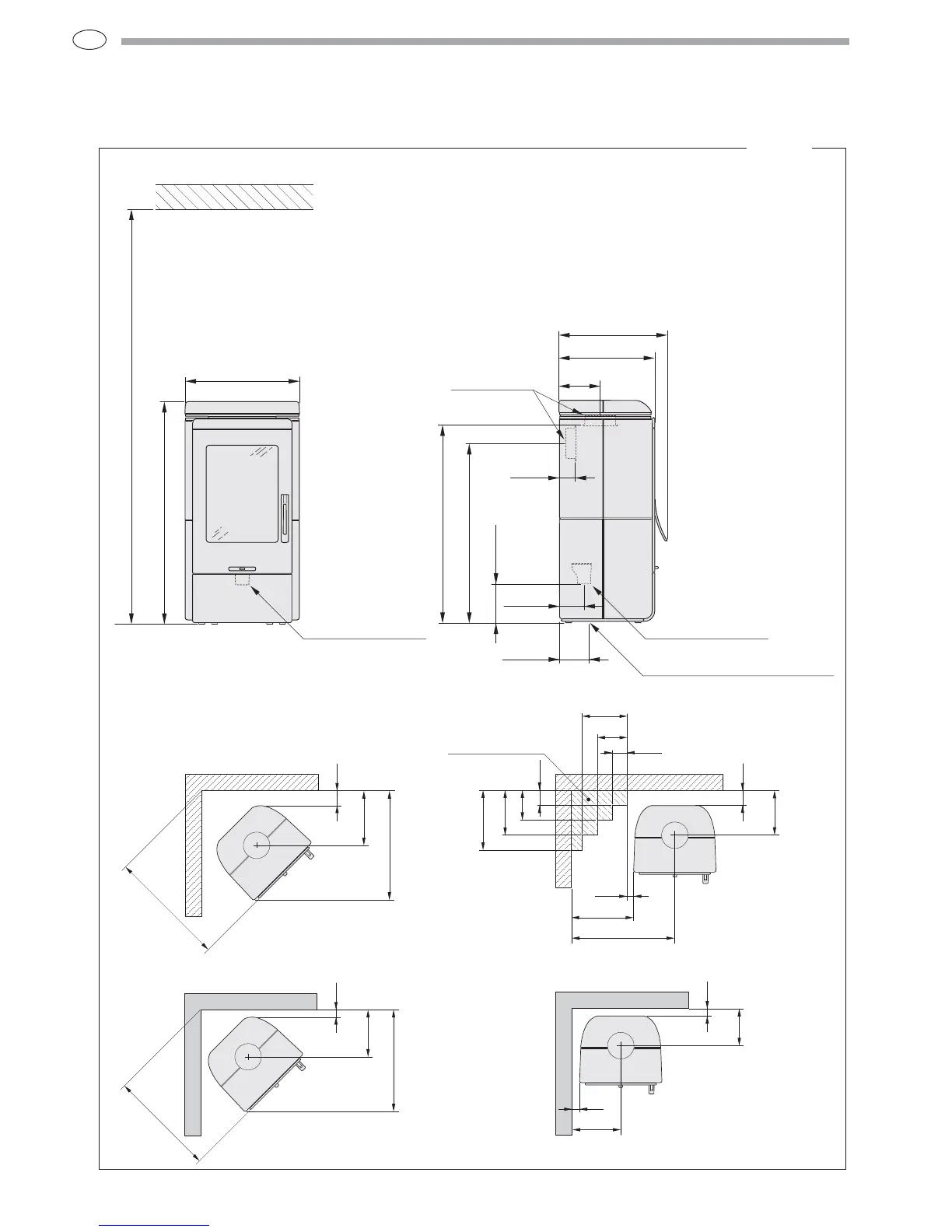

Installation distance to walls and ceiling
Position the stove on a hearth plate and check that the installation distances
given in the diagrams are met. The minimum distance between the stove
opening and combustible parts of the building or décor must be at least 1 m.
When top connecting a steel flue please refer to the relevant manufacturer’s
installation instructions. Observe the safety distances to combustible material
that steel flues require.
* To prevent the discolouring of painted fire walls, we recommend a side distance the same as for the combustible wall.
Permitted area for
combustible material.
Combustible wall
Fire-retardant wall of brick or concrete
Combustible wall
Fire-retardant wall of brick or concrete
H33T
A = height from floor to chimney connection
B = height from floor to c/c smoke outlet rear
C = distance from back to smoke outlet rear
D = height from floor to air inlet
E= distance from back to c/c air inlet
F= distance from back to c/c hole in cast foot plate
Combustible ceiling
Air inlet Ø64
Hole in cast foot plate Ø120
Air inlet Ø64
