§4.2 Welding Operation
§4.2.1 Output Voltage Setting (V)

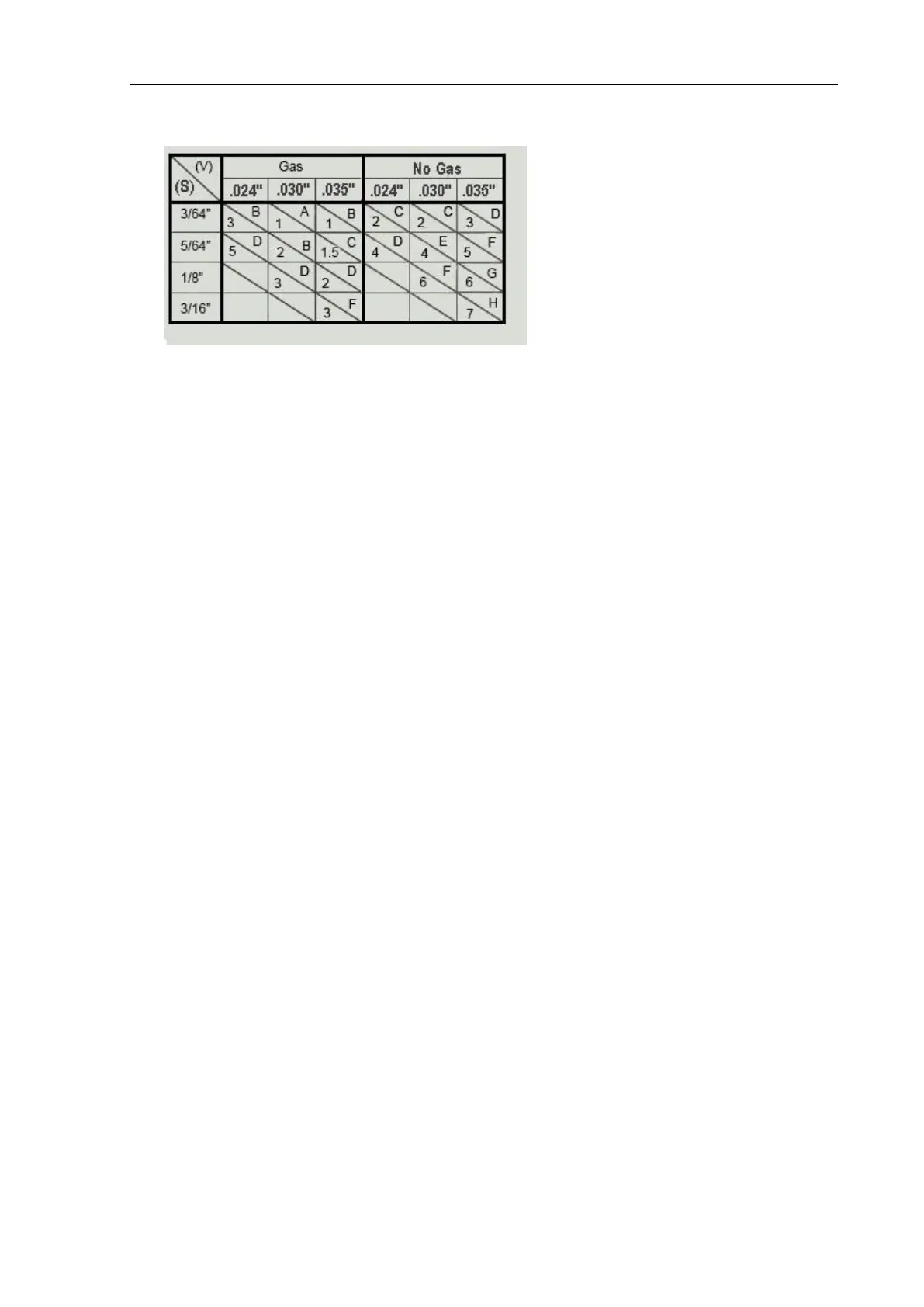

SELECT “Gas” or “No Gas” chart. Follow welding wire diameter (installed in machine) down
the chart to the material thickness to be welder and SET VOLTAGE “V”.
§4.2.2 Wire Speed Setting
SELECT “Gas” or “No Gas” chart. Follow welding wire diameter (installed in machine) down
the chart to the material thickness to be welder and SET SPEED “S”.
§4.3 Operation Environment
● Height above sea level is below 3200 Ft. (1000 meters).
● Operation range: temperature 14
0
F-104
0
F (-10
0
C-40
0
C) & relative humidity below 90 % (20
0
C).
● Ventilation of at least 1 foot (30cm) free space between the machine and any structure.
§4.4 Operation Notices
▲ Read §1 carefully before attempting to use this equipment.
▲ Install ground wire lead on the NEMA5-15 plug directly into the 115VAC outlet.
▲ Insure that the input LINE circuit is rated at 115VAC (50/60Hz) with 20-amp breaker.
▲ Ensure good ventilation of the machine to improve duty-cycle ratio.
▲ Make certain welding area is free of all flammable or combustible materials.
▲ Turn off the power switch when the operation finished for economize energy sources.
▲When power shuts off and ALERT lamp illuminates, do not restart it until problem is resolved.
Otherwise, the range of problem will be extended and machine may be damaged.
▲In case of problems, contact your local dealer or authorized repair center.
