User’s Manual
8
INSTALLATION INSTRUCTIONS
HL190/ HL199/ HL229/ HL249
INSTALL REMOVE

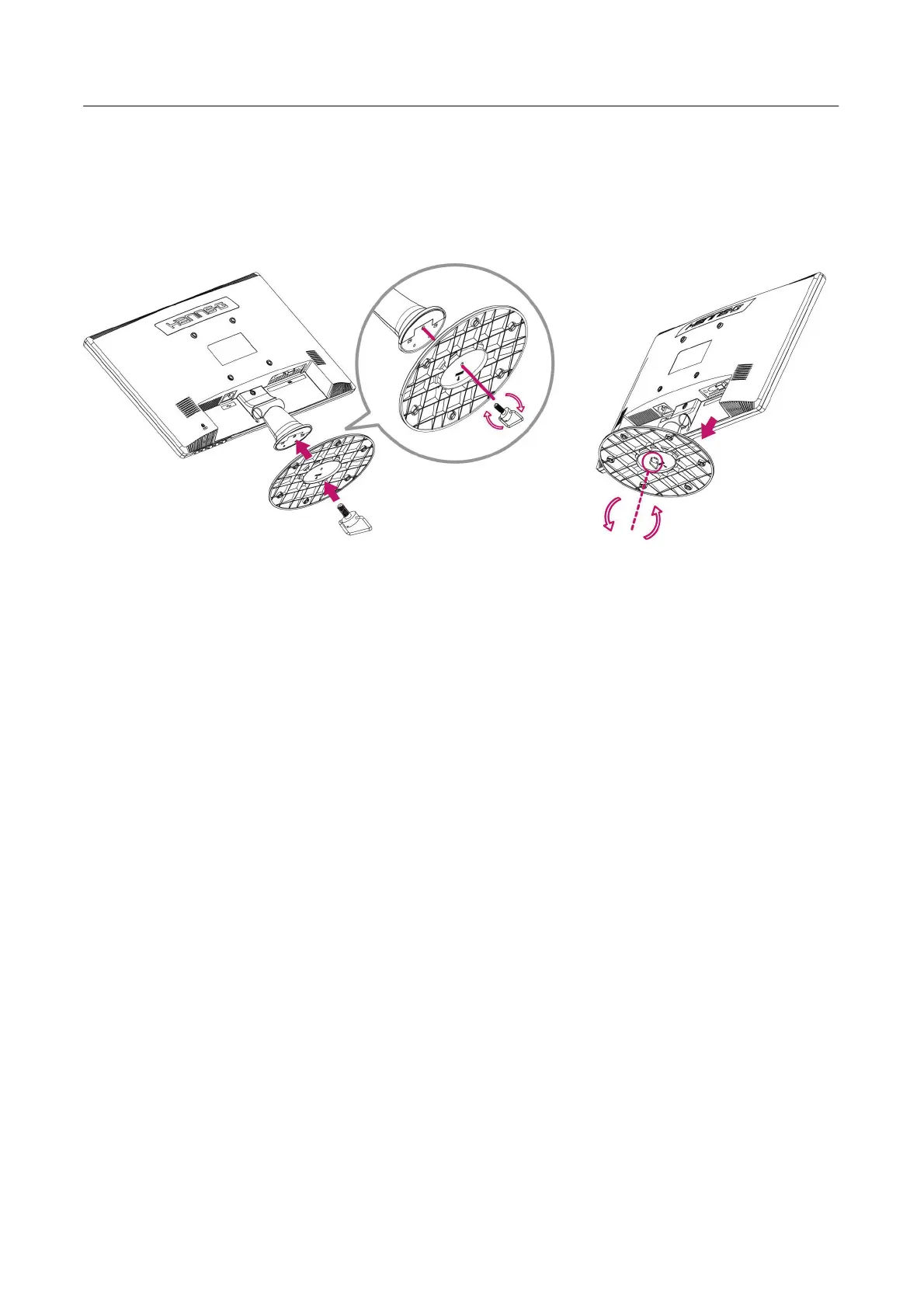

Figure.1. Installing and Removing the Base
INSTALLATION:
1. Turn the monitor over and set it upside down.
2. Align the monitor to the slots on the stand.
3. Pull the screw ring upwards, then turn the screw clockwise to secure. When the stand is securely
attached to the monitor, pull down the screw ring to flatten it with the base of the screw.
4. Check the underside of the stand to ensure that the monitor has been firmly installed to the stand
and that the screws do not loosen.
REMOVAL:
1. Turn the monitor over and set it upside down.
2. Turn the screw counterclockwise to loosen it.
3. Detach the stand from the monitor.
