User’s Manual
10
MAKING CONNECTIONS
CONNECTING TO A PC
Turn off your computer before performing the procedure below.
1. Connect one end of the USB cable to the back of the monitor and connect the other end to the
Memory equipment（USB input must be connected）
2. Connect one end of the USB cable to the back of the monitor and connect the other end to the
computer’s USB port.
3. Connect the audio cable between the monitor audio output and the Speakers or Earphone.
4. Connect the audio cable between the monitor's audio input and the PC's audio output
5. Connect one end of the VGA cable to the back of the monitor and connect the other end to the
computer’s VGA port.
6. Connect one end of the HDMI cable (optional) to the back of the monitor and connect the other
end to the computer’s HDMI port.
7. Connect one end of the DP cable to the back of the monitor and connect the other end to the
computer’s DP port.
8. Plug one end of the 12V DC adapter to the LCD monitor’s DC 12V input socket, plug one end of the
AC power cord to the 12V DC adapter AC input socket, and the other end of the AC power cord to
Wall outlet.
9. Turn on your monitor and computer.

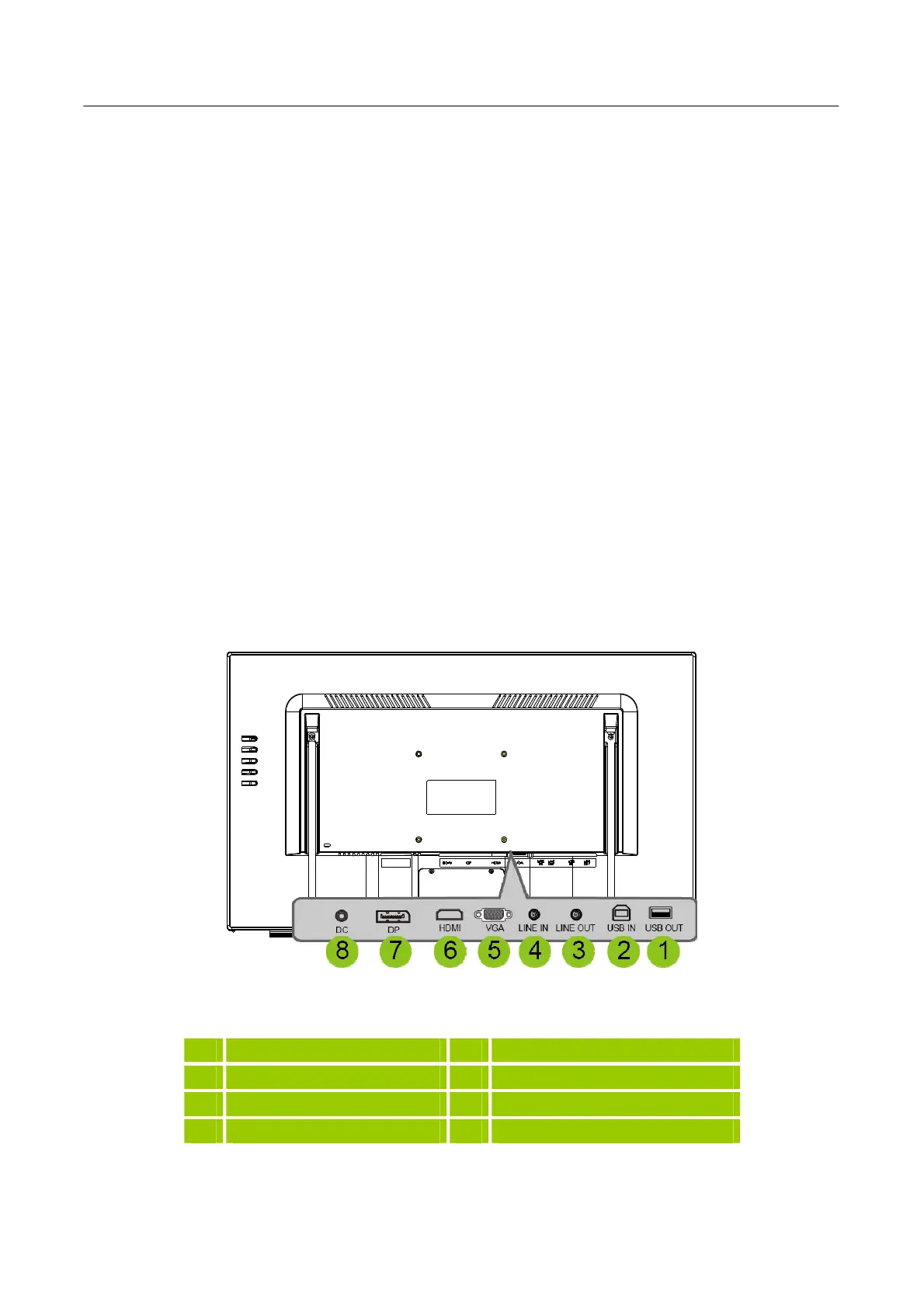

Figure.2. Connecting to a PC
1 USB Output 2 USB-Type A to B
3 LINE OUT 4 LINE IN
5 VGA Input 6 HDMI Input
7 DP Input 8 Power DC 12V Input
