Hanover 9760701 - Inner water container cleaning

19
 Inner water container cleaning
WARNING: Please follow the steps below only when the ice maker is disconnected from the power and
has no water or it may cause electric shock or wet flooring.

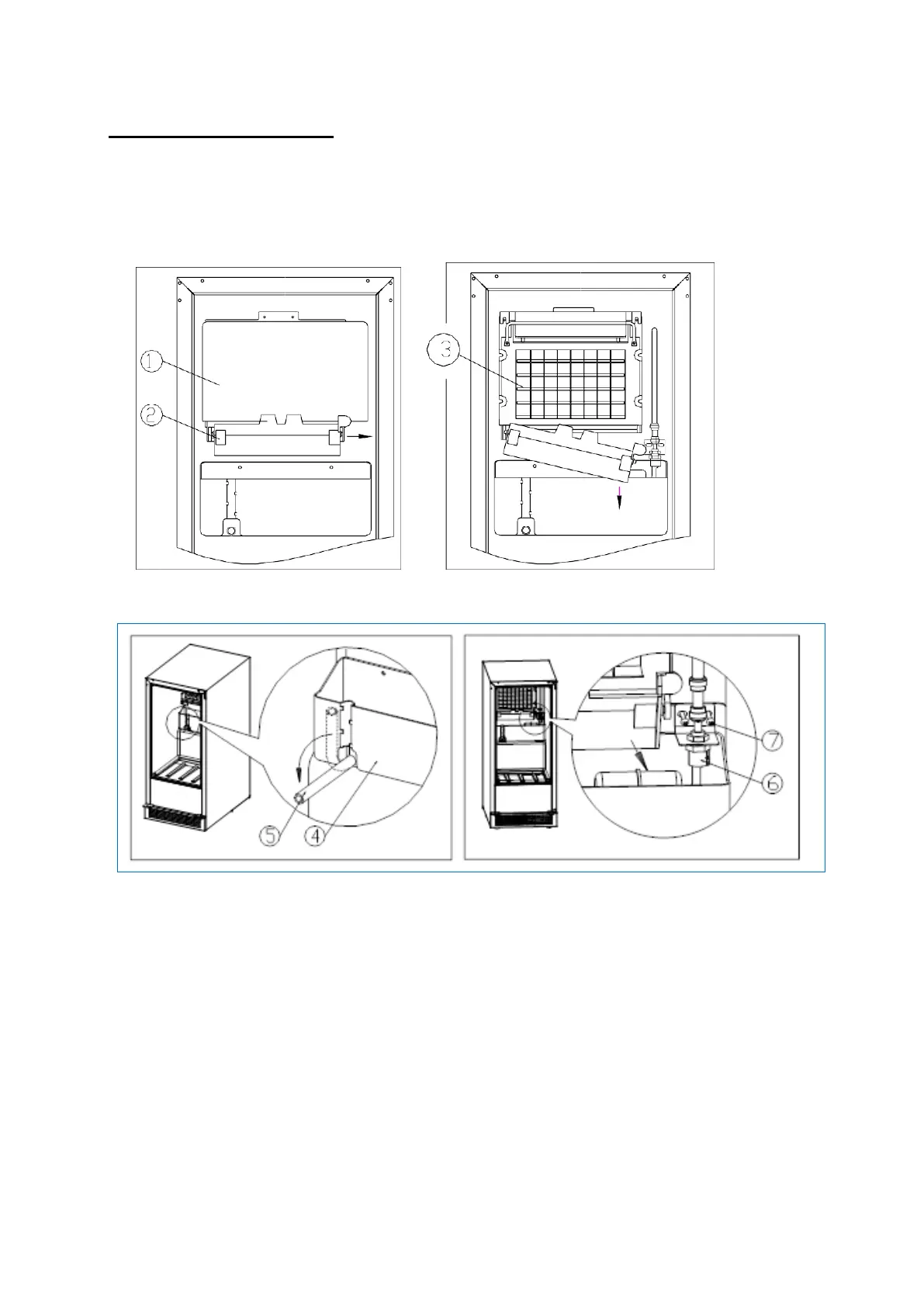

Fig.A Fig.B
Fig.C Fig.D
① Ice maker machine cover board ② Ice maker machine cover plate ③ Ice maker machine
④ Inner water container ⑤ Water pipe ⑥ Valve
⑦ Fixed screw
1. Take out the cover board (1) of the ice maker machine (3) press one side of the cover plate (2) and pull out the
other side, and then it is easily removed. (Fig.A & Fig.B)
2. Prepare a water receptacle, gently pull down the water pipe (5) of the inner water container (4), then drain the
water to the water receptacle. (Fig.C)
3. Remove the valve (6) and fixed screw (7), then clean the valve.
