3
Special accessories (see page 14)
(order as an extra)
extension 25 mm;
#13596000
Extension Set 22 mm (when wall is
not deep enough).
Assembly (see page 4)
Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The product may only be used for bathing, hygienic
and body cleaning purposes.
The hot and cold supplies must be of equal
pressures.
Installation Instructions
• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be observed.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 - 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 70°C
Recommended hot water temp.: 65°C
Thermal disinfection: max. 70°C / 4 min
The product is exclusively designed for drinking water!
English

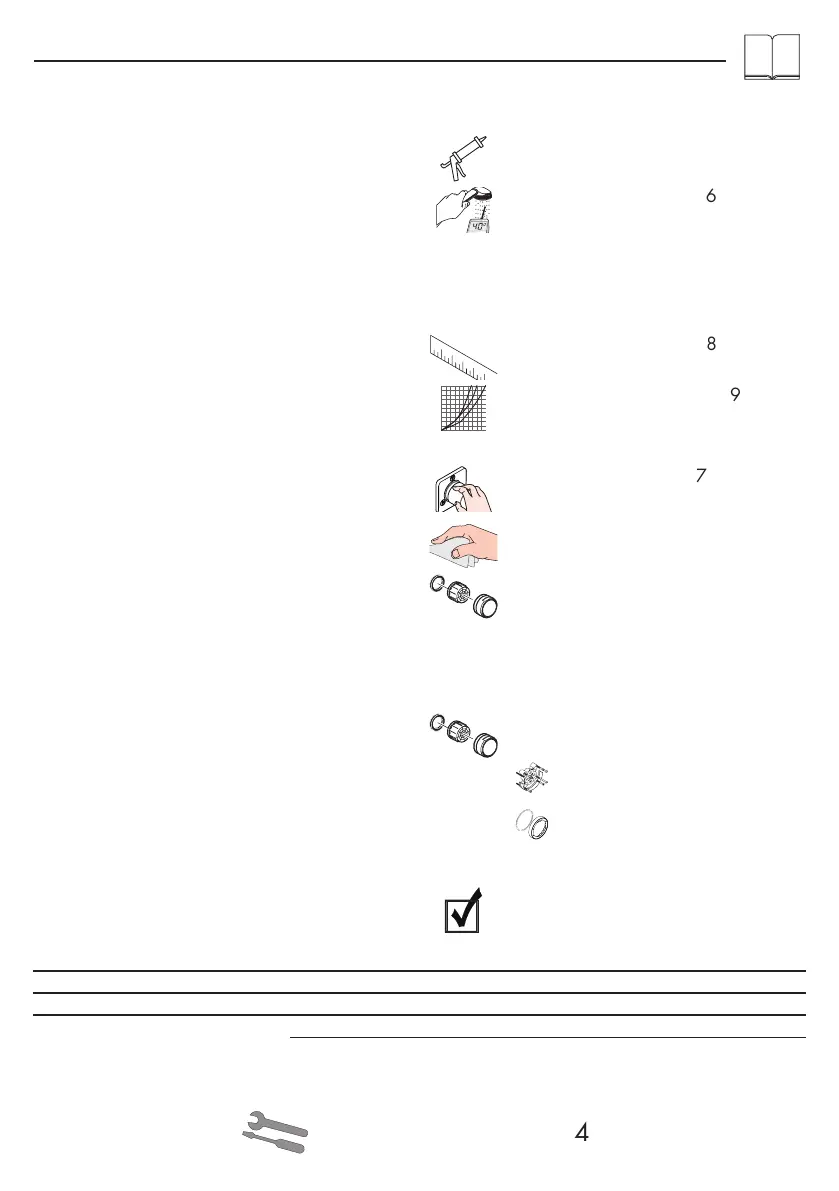

Symbol description
Cleaning (see page 10)
Fault Cause Remedy
Mixer stiff - Cartridge defective, calcified - Exchange cartridge
Mixer dripping - Cartridge defective - Exchange cartridge
Hot water temperature too low - Hot water limiter incorrectly set - Set hot water limiter
- Crossflow - Exchange cartridge
Do not use silicone containing acetic acid!
Adjustment (see page 6)
To adjust the hot water limiter. Using a hot
water limiter in combination with a continu-
ous flow water heater is not recommended.
Dimensions (see page 8)
Flow diagram (see page 9)
free flow
Operation (see page 7)
Spare parts (see page 10)
XX = Colors
00 = chrome plated
34 = Brushed Black Chrome
40 = white/chrome plated
95 = Brushed Brass
Test certificate (see page 16 )
