10
English

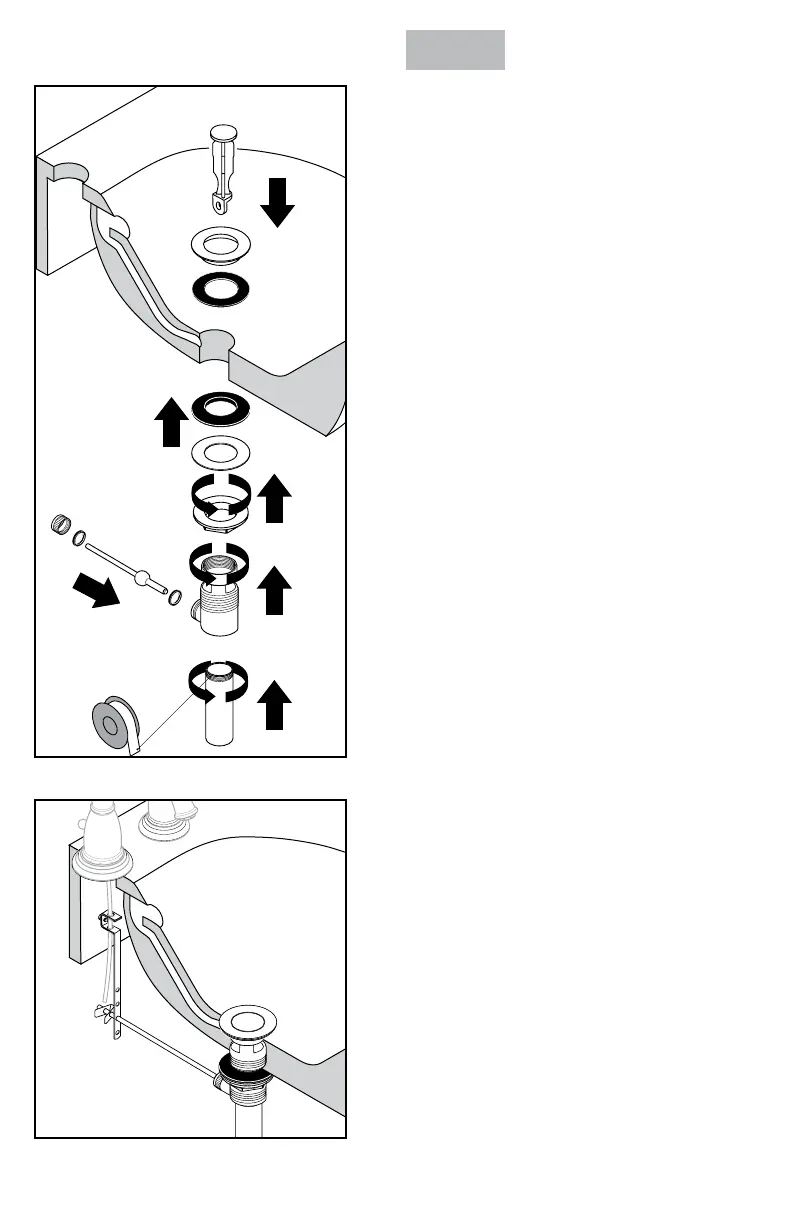

Install the pop-up drain
Remove the plunger.
Unscrew the drain outlet ange from the tee.
Unscrew the tailpiece from the tee.
Wrap the threads with Teon tape. Install the
tailpiece on the tee.
Install the sealing gasket on the ange.
Rest the ange in the sink outlet.
Install the mack gasket, friction ring, retainer nut,
tee, and tailpiece on the ange.
Tighten the retainer nut.
Place the plunger in the drain.
Install the two pivot ball seals on the ball rod.
Install the ball rod on the tee. The end of the rod
must go through the loop in the bottom of the
plunger.
Tighten the pivot ball nut.
Slide the link over end of pull rod. Tighten the
screw.
Test the drain. Reposition the link on the ball rod
if necessary.
When satised, install the spring clip on the ball
rod.
