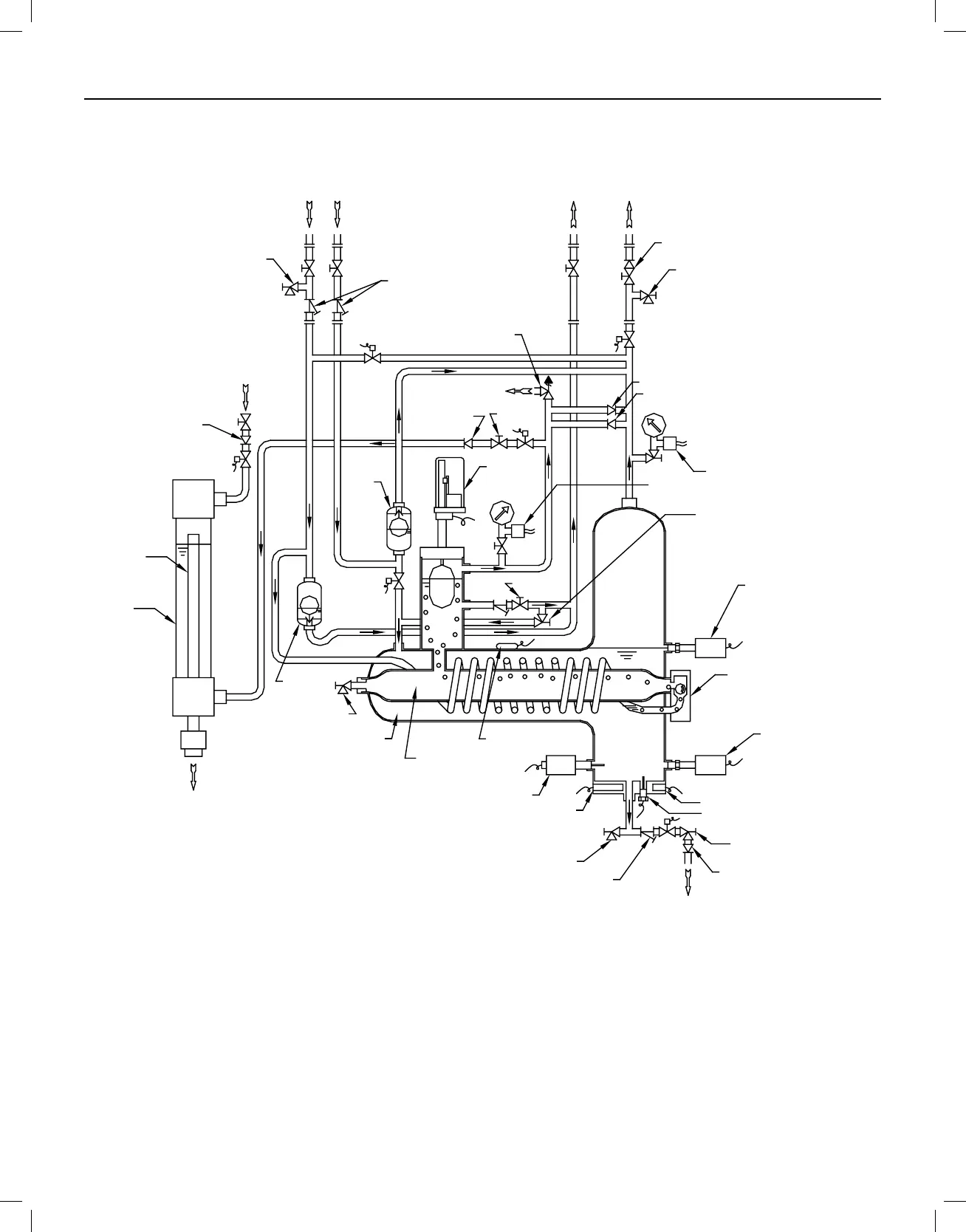

AUTO-PURGER PLUS APPT FLOW DIAGRAM
Figure 6
1" WATER BUBBLER
WATER
BUBBLER
OVERFLOW
TUBE
½" FOUL
GAS LINE
½" LOW-PRESSURE
PUMPED-LIQUID LINE
¾" SUCTION LINE
FILL LINE
D
B
C
FLOW REGULATOR
GAUGE VALVE
GAUGE VALVE
LIQUID MAKE-UP
LEVEL SENSOR
CHECK VALVE
LIQUID
DRAINER
OIL DRAIN AND PUMP OUT
HIGH PRESSURE
EVAPORATOR SHELL
FLOAT
SWITCH
1 PSID (0.07 BAR)
CHECK VALVE
½" LOW-PRESSURE
LIQUID RETURN LINE
STOP/CHECK VALVE
METERING
VALVE
HIGH SIDE PRESSURE TRANSDUCER
LEVEL SENSOR
LOW LIQUID
WATER CONCENTRATION SENSOR
ELECTRIC HEATERS
VAPOR
TRAP
TEMPERATURE SENSOR
PLATE HEATER TEMPERATURE SENSOR
LIQUID TEMPERATURE SENSOR
225 PSID (15.5 BAR) RELIEF CHECK VALVE
LOW SIDE PRESSURE TRANSDUCER
STRAINER
E
F
G
1 PSID (0.07 BAR) CHECK VALVE
AIR SEPARATOR
N.C.
OIL DRAIN AND PUMP OUT
FLOODED EVAPORATOR CHAMBER
1 PSID (0.07 BAR) RELIEF CHECK VALVE
WATER PURGE LINE
TO CUSTOMER SUPPLIED CONTAINER
GAS
RELIEF VALVE
300 PSI (20.7 BAR)
½" WATER BUBBLER
DRAIN LINE TO SEWER
RELIEF VALVE
VENT LINE
SOLENOID VALVES:
BLOW-PRESSURE PUMPED-LIQUID SOLENOID VALVE
CPURGE GAS SOLENOID VALVE
DWATER BUBBLER FILL LINE SOLENOID VALVE
ESUCTION LINE SOLENOID VALVE
FLOW-SIDE PRESSURE-ASSIST SOLENOID VALVE
GWATER PURGE LINE SOLENOID VALVE
ASSEMBLY
CHAMBER
HIGH SIDE TO LOW SIDE
BYPASS VALVE
(NORMALLY CLOSED)
WITH ORIFICE
PURGE
VALVE
WATER PURGE LINE
SHUT-OFF VALVE
NO ORIFICE
WATER PURGE LINE STRAINER
NO ORIFICE
1" WATER BUBBLER
WATER
BUBBLER
OVERFLOW
TUBE
½" FOUL
GAS LINE
½" LOW-PRESSURE
PUMPED-LIQUID LINE
¾" SUCTION LINE
FILL LINE
D
B
C
FLOW REGULATOR
GAUGE VALVE
GAUGE VALVE
LIQUID MAKE-UP
LEVEL SENSOR
CHECK VALVE
LIQUID
DRAINER
OIL DRAIN AND PUMP OUT
HIGH PRESSURE
EVAPORATOR SHELL
FLOAT
SWITCH
1 PSID (0.07 BAR)
CHECK VALVE
½" LOW-PRESSURE
LIQUID RETURN LINE
STOP/CHECK VALVE
METERING
VALVE
HIGH SIDE PRESSURE TRANSDUCER
LEVEL SENSOR
LOW LIQUID
WATER CONCENTRATION SENSOR
ELECTRIC HEATERS
VAPOR
TRAP
TEMPERATURE SENSOR
PLATE HEATER TEMPERATURE SENSOR
LIQUID TEMPERATURE SENSOR
225 PSID (15.5 BAR) RELIEF CHECK VALVE
LOW SIDE PRESSURE TRANSDUCER
STRAINER
E
F
G
1 PSID (0.07 BAR) CHECK VALVE
AIR SEPARATOR
N.C.
OIL DRAIN AND PUMP OUT
FLOODED EVAPORATOR CHAMBER
1 PSID (0.07 BAR) RELIEF CHECK VALVE
WATER PURGE LINE
TO CUSTOMER SUPPLIED CONTAINER
GAS
RELIEF VALVE
300 PSI (20.7 BAR)
½" WATER BUBBLER
DRAIN LINE TO SEWER
RELIEF VALVE
VENT LINE
SOLENOID VALVES:
BLOW-PRESSURE PUMPED-LIQUID SOLENOID VALVE
CPURGE GAS SOLENOID VALVE
DWATER BUBBLER FILL LINE SOLENOID VALVE
ESUCTION LINE SOLENOID VALVE
FLOW-SIDE PRESSURE-ASSIST SOLENOID VALVE
GWATER PURGE LINE SOLENOID VALVE
ASSEMBLY
CHAMBER
HIGH SIDE TO LOW SIDE
BYPASS VALVE
(NORMALLY CLOSED)
WITH ORIFICE
PURGE
VALVE
WATER PURGE LINE
SHUT-OFF VALVE
NO ORIFICE
WATER PURGE LINE STRAINER
NO ORIFICE
1
SECTION 4 AUTO-PURGER PLUS OPERATION
