Hansen GE2 - Maintenance - Gas Burner; Gas Burner Assembly and Checks

14 pages

To Next Page

To Previous Page

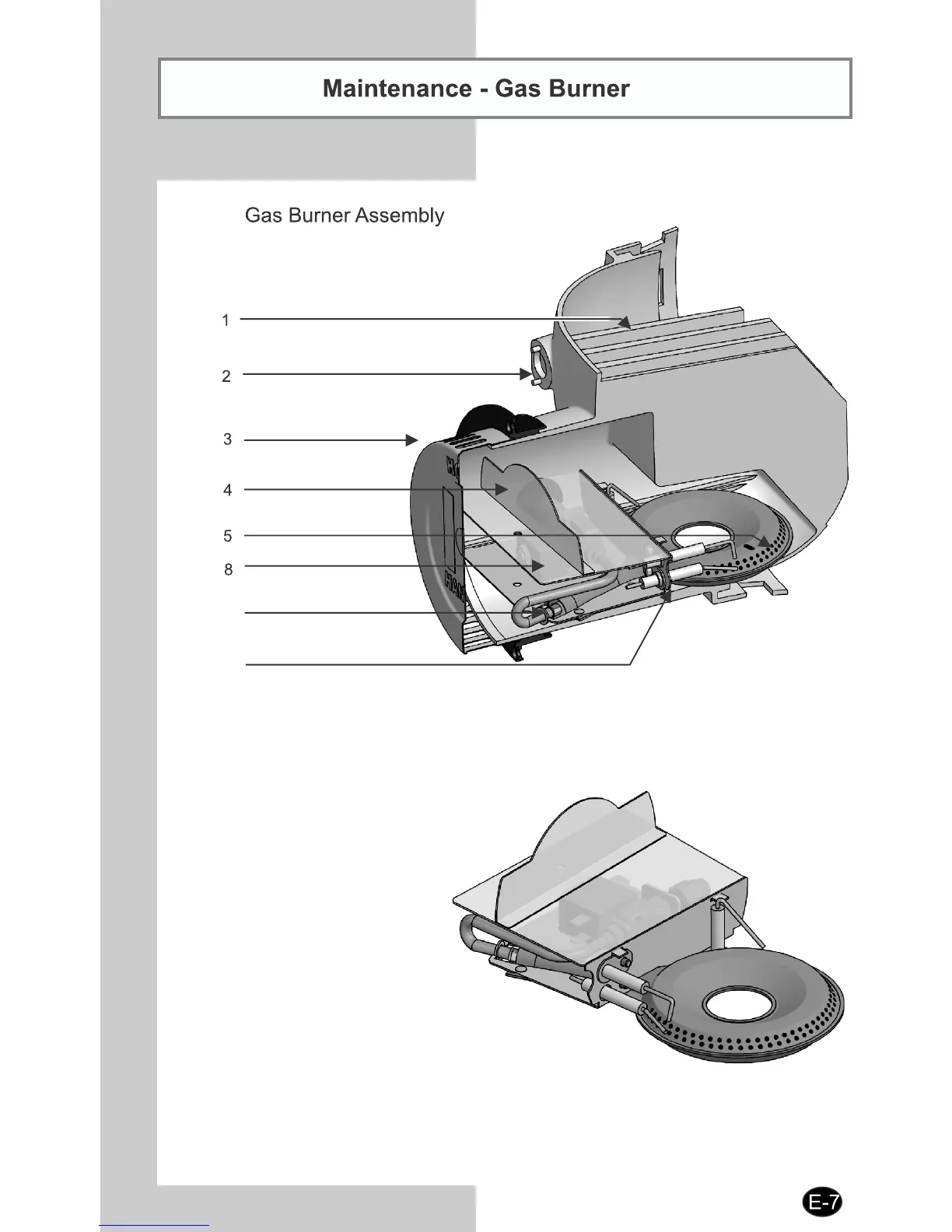

1) Heat exchanger body

2) Thermostat mounting

3) Exhaust Flue

4) Wind shield

5) Gas burner

6) Gas connection

7) Sealing grommet

8) Gas Solenoid valve

9) Gas Injector

10) Spark Electrodes

Checking the spark & flame sense

1) Remove the upper heat plate by

loosening the securing 7mm nut.

2) Inspect the ceramic electrodes

for cracks

3) The distance between the spark

electrodes must be between 4-5mm.

4) The distance from the sense electrode

and the burner must be 4-5mm.
