Hansen HA4AB - Installation Dimensions (5 & 6); Dimensions for Larger Regulators

HANSEN
P
12.75''
20.00''
20.40''
16.58''
6.40''
(324)
(508)
(163)
(421)
(518)

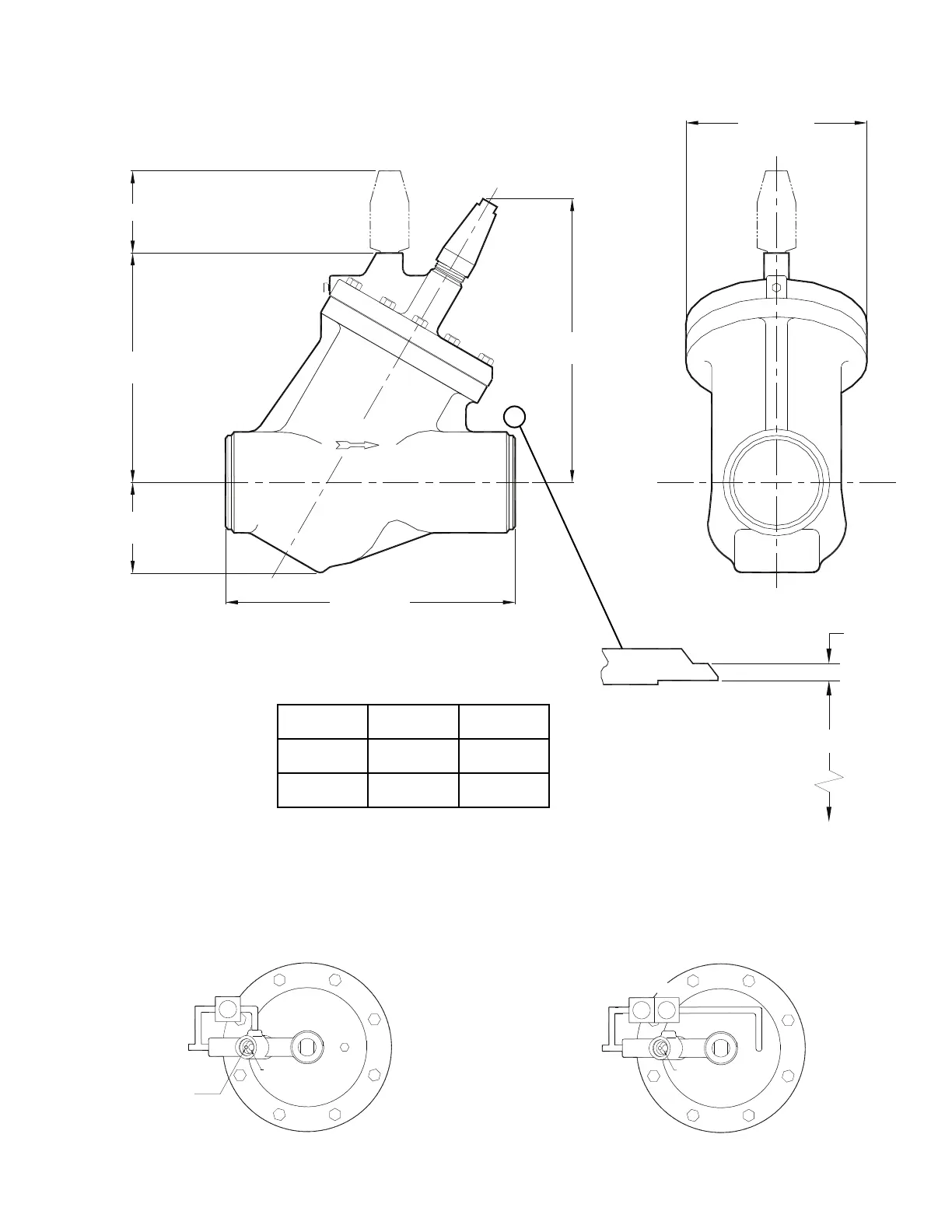

INSTALLATION DIMENSIONS (mm)
5" AND 6" REGULATORS
FOR SERIES AND PARALLEL ARRANGEMENT (AD)
SI, solenoid; SII & P pressure pilots
FOR SERIES ARRANGEMENT (AS)
SI, solenoid; SII pressure pilot
5" AND 6" PILOT PIPING (TOP VIEW)
WELD END DIMENSIONS (mm)
T
A DIA
(See page 8.)
SII
SI
PLUG
INTERNAL
SI SII
P
PORT SIZE A T
5"
(125)
5.05"
(128)
0.26"
(6.6)
6"
(150)
6.06"
(154)
0.28"
(7.1)
13
R429d
AUG 2015
