 @ is: LED indicator
2.2 Product view
The following sections introduce the appearance area of the front and rear of
Stellar-XXXXL E31 series.
2.2.1 Front area
The front area of Stellar-XXXXL is shown in Figure 2-1, and the function of each
area is shown in Table 2-2.

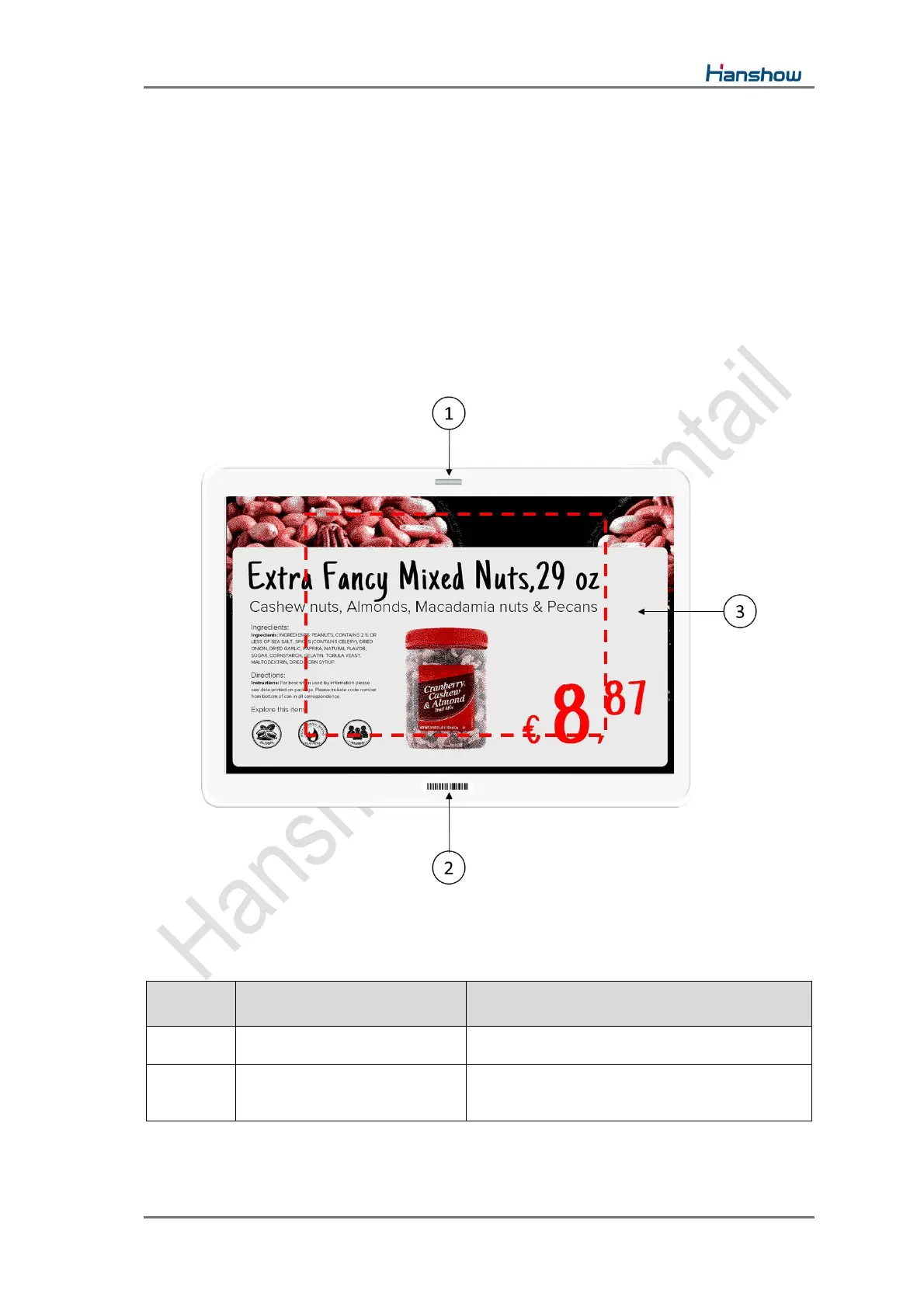

Figure 2-1 Front area of Stellar-XXXXL E31
Table 2-2 Description for front area of Stellar-XXXXL E31
No.
Name
Description
1
LED area
Support for RGB tricolor LED flashing
2
Remote controller sensing
area
Reed area
