User’s Manual8
Installation

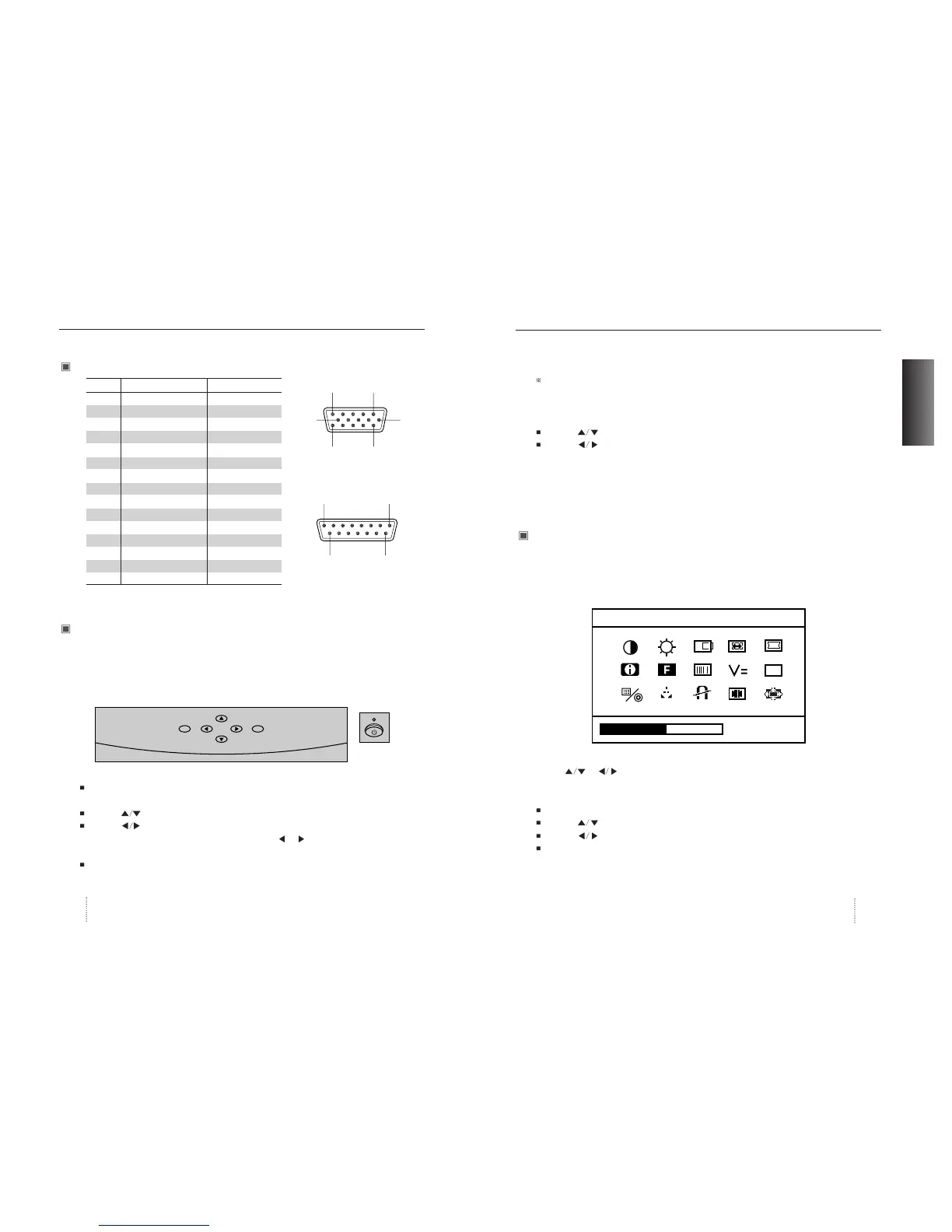

Pin assignment table D-Sub Mini 15pin connector
Function of controls
OSD Controls
“ON SCREEN MENU” controls include the following extended controls such as Size, Position,
Geometry Distortion, Color temp, Degauss, Moire on & off, Language, OSD-Position, Recall,
Cont & Brt, etc.
Function of OSD buttons on the front of the monitor
DO : In the main menu, proceeds to the selected menu .
In a submenu, proceeds to the control in that sub-menu.
Controls : Move the function to select one of the controls.
Controls : In the main menu, moves the fuction to select one of the controls.
In a submenu, moves the bar in the or direction to increase or
decrease the adjustment.
EXIT : In the main menu, exit the OSD controls. In a submenu, exit to the OSD main menu.
Pin No. 15 Pin D-Sub Macintosh
1 Red Video Red Ground
2 Green Video Red Video
3 Blue Video H/V Sync
4 Frame Ground Sense (0)
5 N.C Green Video
6 Red Ground Green Ground
7 Green Ground Sense (1)
8 Blue Ground N.C
9 N.C Blue Video
10 Sync. Ground Sense (2)
11 Ground Ground
12 SDA V-Sync.
13 H-Sync. Blue Ground
14 V-Sync. Ground
15 SCL H-Sync.
(15 Pin D-Sub)
(Macintosh Adaptor)
15
18
915
11 15
6
10
User’s Manual 9
ENGLISH
Additional up front controls
Power Switch : Turns the monitor power on or off, When the power is on, the LED is lit.
Accessing on screen menu
Press DO Button.
Controls : Direct Brightness access.
Controls : Direct Contrast access.
Turning off on screen menu
When in the main menu, press exit button.
When in submenus, press the exit button twice.
OSD Menus
Main Menu
“ON SCREEN MENU”s Main Menu of Controls gives you an overview of the selection of controls
available.
Use the or : Control buttons to scroll through all of the menus.
Main Menu control guide
EXIT : Exit the OSD controls.
Controls : Move the function to choose.
Controls
: Move the function to choose.
DO : Proceed to the selected menu choice.
Controls
To Next Page
