LV8 OWNER’S MANUAL LV8 OWNER’S MANUAL
10 11

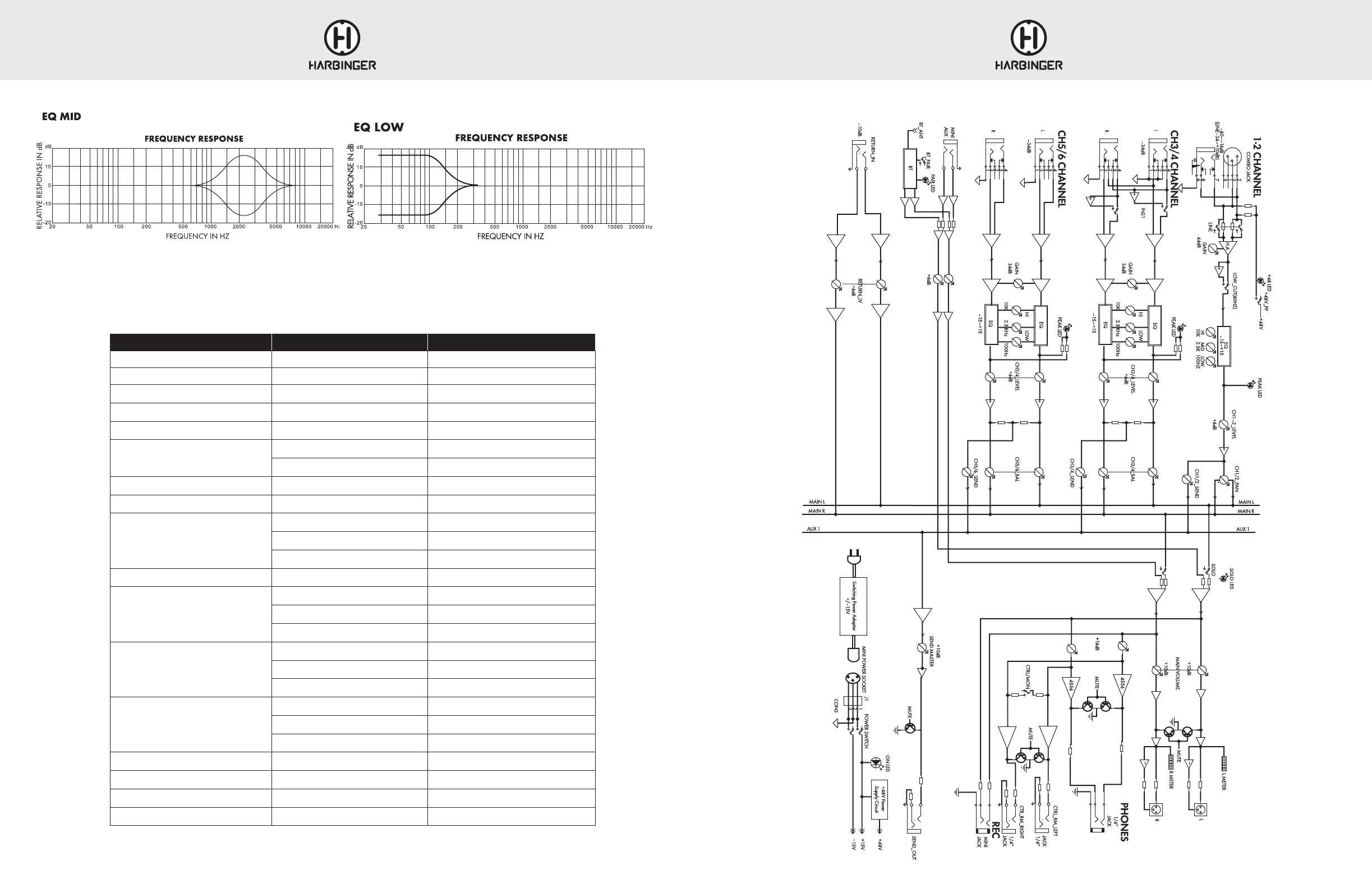

LV8 BLOCK DIAGRAM
Parameter Condition LV8
Frequency Response Mic In to Main Out (Trim at 0 db) 20 Hz – 22 kHz
THD Mic In to Main Out (20Hz to 20 kHz) 0.008%
Preamp Noise (EIN) 20 Hz to 20 kHz, (150 ohm sources) –127dB
Residual Output Noise All level controls @ minimum –91dB
Common Mode Rejection Ratio (CMRR) Maximum Gain >74dB @ 1 kHz
Crosstalk
Adjacent Channels –85dB
Same channel (stereo separation) –81dB
Input Gain Control Range +15dB to +63 dB
Phantom Power DC +/–48V
Equalization
Mono Channel, High ±12dB@ 10 kHz
Mono Channel, Mid ±15dB@ 2.5 kHz
Mono Channel, Low ±12dB@ 100Hz
Output Level Maximum +22 dBu
Maximum Input Levels
Mic +6dBu (with –26dB PAD)
Line Input +21dBu at Unity Gain
Aux Input +6dBu at 15dB Level max
Input Impedance
Mic 2kΩ, balanced
Line Input 10kΩ, balanced
Aux Input 10kΩ, balanced
Output Impedance
Main 120Ω
Control Room, Rec Out 120Ω
Headphones 100Ω
VU Meters 4 Segments Clip (+18), +5, +3, –6, –10 dB
AC Power Requirements 3-pin mini XLR connector ±15VDC @ 500 mA
Dimensions L x W x H (shown in Inches) 9.13”L x 7.63”W x 2.38”H
Weight (net) Without PSU 2.5 lbs
LV8 SPECIFICATIONS
The mid EQ is a peaking EQ, centered at 2.5kHz. This boosts or cuts
the high midrange of your signal. You might turn it up if your vocal
isn’t cutting through the mix, or turn it down if a percussion part is
too harsh.
This low EQ boosts or cuts everything from 100Hz or below. You might
bring it up for more bottom out of your kick or bass guitar, and turn it down
to reduce rumble from a vocal or wind instrument.
20394901 Harbinger LV8 Owners Manual_REV.indd 10-1120394901 Harbinger LV8 Owners Manual_REV.indd 10-11 5/26/21 3:23 PM5/26/21 3:23 PM
