Hand Brake Operation
1. To slow down or stop temporarily, squeeze the Handgrip [1 & 52] and the
Brake Loop [1A] together firmly.
2. To lock Wheels in position, push down on the Brake Loops until you hear a
‘click’ sound. See Fig. C.
3. To unlock Wheels, pull up on the Brake Loops as shown in Fig. D.
Fig. D, Wheels unlockedFig. C, Wheels in locked position

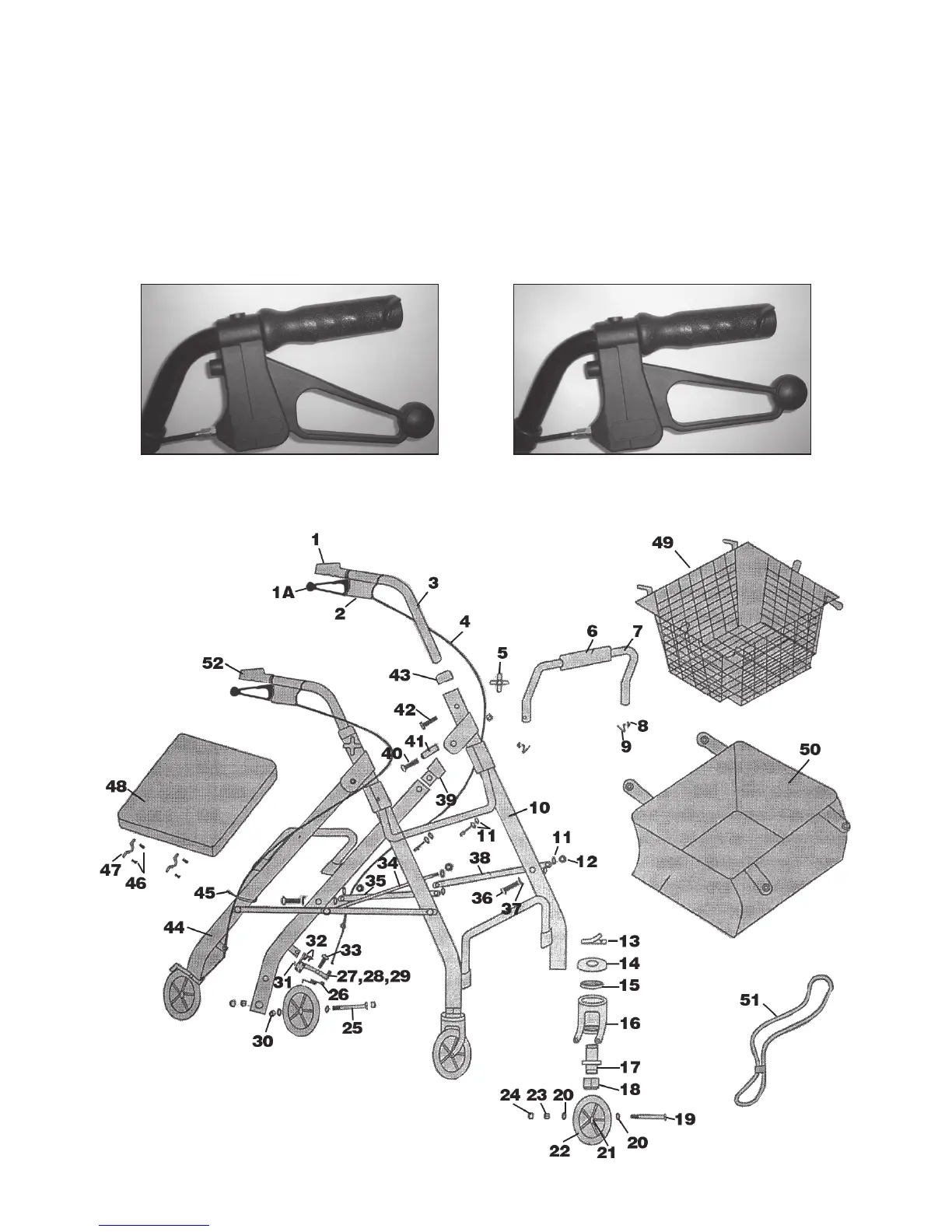

Assembly Drawing
REV 04h; 04j
