Harbor Freight Tools 43533 - Parts List; Assembly Drawing

Page 7For technical questions, please call 1-800-444-3353.SKU 43533
Part Description Q’ty
1 Left-handed Nut 1
2 Polishing Wheel 1
3 Wheel Pushing Ring 4
4 Washer 2
5 Bearing 1
6 Snap Ring 2
7 Rotor 1
8 Armature 1
9 Fan 1
10 Bearing 1
11 Sanding Wheel 1
12 Right Nut 1
13 Shaft Mounting Nut 1
14 Wheel Cover 1
15 Nut 6
16 Bolt 2
17 Wheel Cover 1
Part Description Q’ty
18 Clamp 1
19 Stator 1
20 Clamp 2
21 Wire Cover 2
22 Brush Holder 1
23 Wire Cover 2
24 Brush Screw 2
25 Brush Spring 2
26 Brush 2
27 Motor Housing 1
28 Wheel Cover 1
29 Circuit Board 1
30 Base Holder 1
31 Knob 1
32 Flex Shaft 1
33 Adaptor 1
34 Cord 1
Part Description Q’ty
35 Spring 1
36 Plug 1
37 Shaft Connector Nut 1
38 Tool Rest 1
39 Flex Shaft Hose 1
40 Spring 1
41 Chuck Cover 1
42 Bearing 1
43 Washer 1
44 Bearing 1
45 Spindle 1
46 Chuck 1
47 Fixing Nut 1
48 Mounted Stone Bit 1
49 Chuck Cover 1
50 Wrench 1
51 Plastic Safety Lens 1

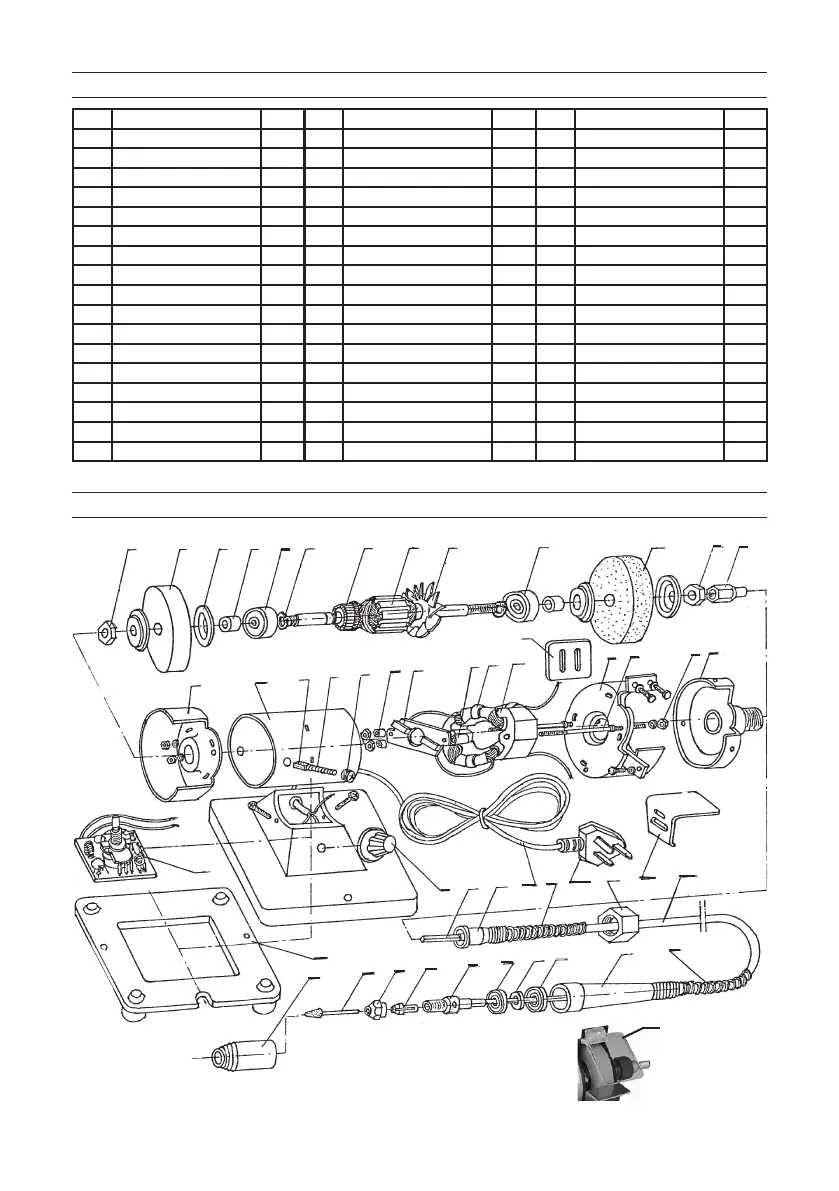

ASSEMBLY DRAWING
1 2 3 4 5 6 7 8 9 10
11 12 13
28
26 25
24
23 22
21 20
19
18
17 16
15
14
31 32
33
37
3635
34
38
39
41
40
42
45
44
43
29
49
30
48
47
46
27
PARTS LIST
REV 10c
51
