Page 18 For technical questions, please call 1-800-444-3353. Item 60239
NOTICE
Clean the Spray Gun IMMEDIATELY after use.
Delayed or inadequate cleaning will permanently clog the Spray Gun.
SAFETY OPERATION MAINTENANCESETUP
Part Description Qty
1A Air Cap W/Ring 1
2A Fluid Nozzle 1
3A Gun Body 1
4A Filter 1
5A Gasket 1
6A Cup 1
7A Cover 1
8A Drip Control Device 1
9A Hanger 1
10A Gasket 2
11A Fluid Needle Sleeve 1
12A Pattern Adjustment Knob 1
13A Fluid Needle 1
14A Fluid Needle Spring 1
15A Fluid Control Knob 1
Part Description Qty
16A Valve Sealing Gasket 2
17A Valve Needle Sealing Screw 1
18A Valve Stem 1
19A Valve Spring 1
20A O-Ring 1
21A Air Valve Nut 1
22A Air Inlet 1
23A Air Control Knob 1
24A E-Ring 2
25A Trigger Stud 1
26A Gasket 2
27A Trigger 1
28A Nut 1
29A Gasket 1

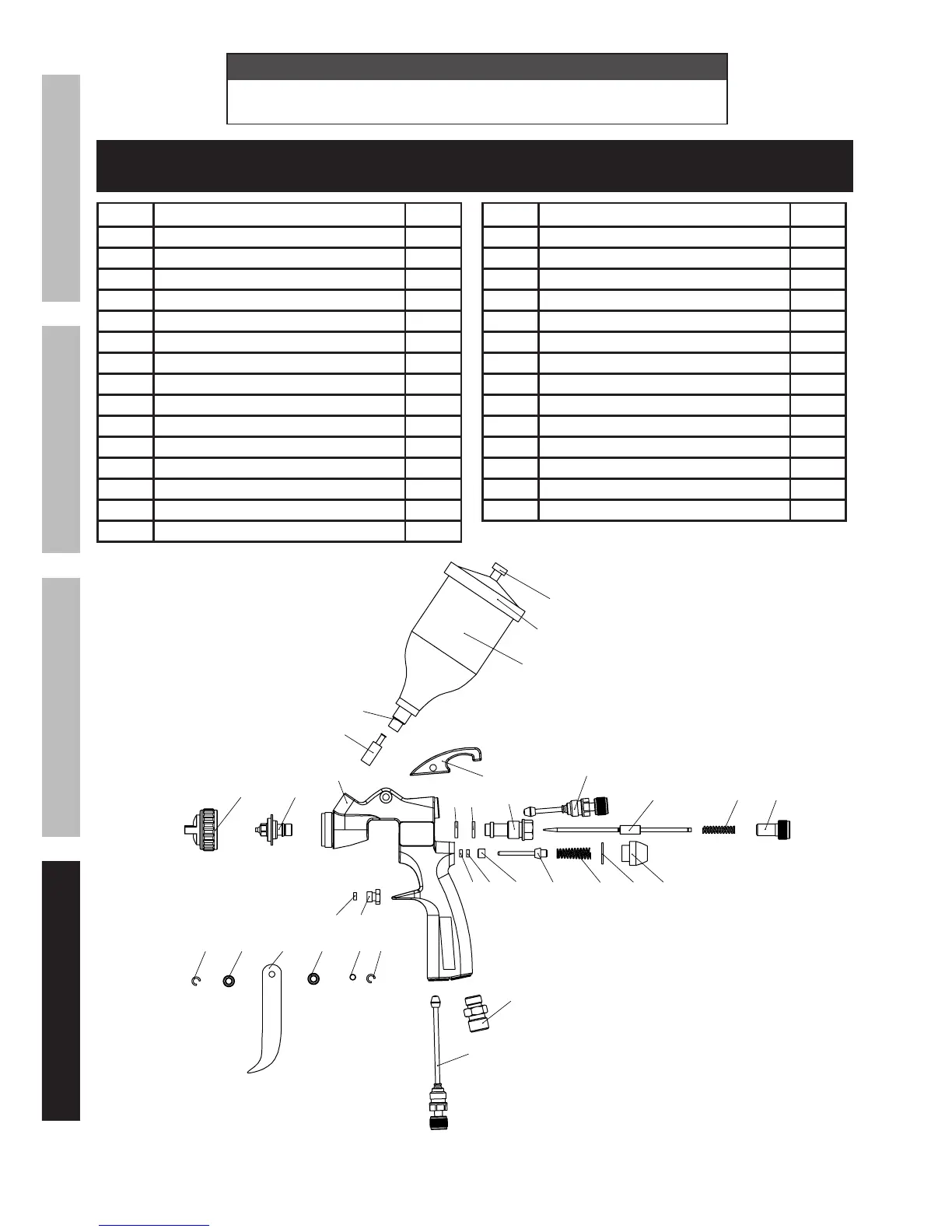

Parts List and Assembly Diagram for Large Spray Gun
8A
6A
7A
4A
5A
3A
9A
12A
11A
10A10A
13A 14A 15A
21A19A18A17A16A
28A29A
24A 26A 27A 26A 25A 24A
23A
22A
20A
1A
16A
2A
