Page 19For technical questions, please call 1-800-444-3353.Item 60239
NOTICE
Clean the Spray Gun IMMEDIATELY after use.
Delayed or inadequate cleaning will permanently clog the Spray Gun.
SAFETYOPERATIONMAINTENANCE SETUP
Part Description Qty
1 Air Cap W/Ring 1
2 Fluid Nozzle 1
3 Gun Body 1
4 Cup 1
5 Cover 1
6 Hanger 1
7 Gasket 2
8 Fluid Needle Sleeve 1
9 Pattern Adjustment Knob 1
10 Fluid Needle 1
11 Fluid Needle Spring 1
12 Fluid Control Knob 1
13 Valve Sealing Gasket 2
Part Description Qty
14 Valve Needle Sealing Screw 1
15 Valve Stem 1
16 Valve Spring 1
17 O-Ring 1
18 Air Valve Nut 1
19 Air Inlet 1
20 Air Control Knob 1
21 E-Ring 2
22 Trigger Stud 1
23 Gasket 2
24 Trigger 1
25 Nut 1
26 Gasket 1

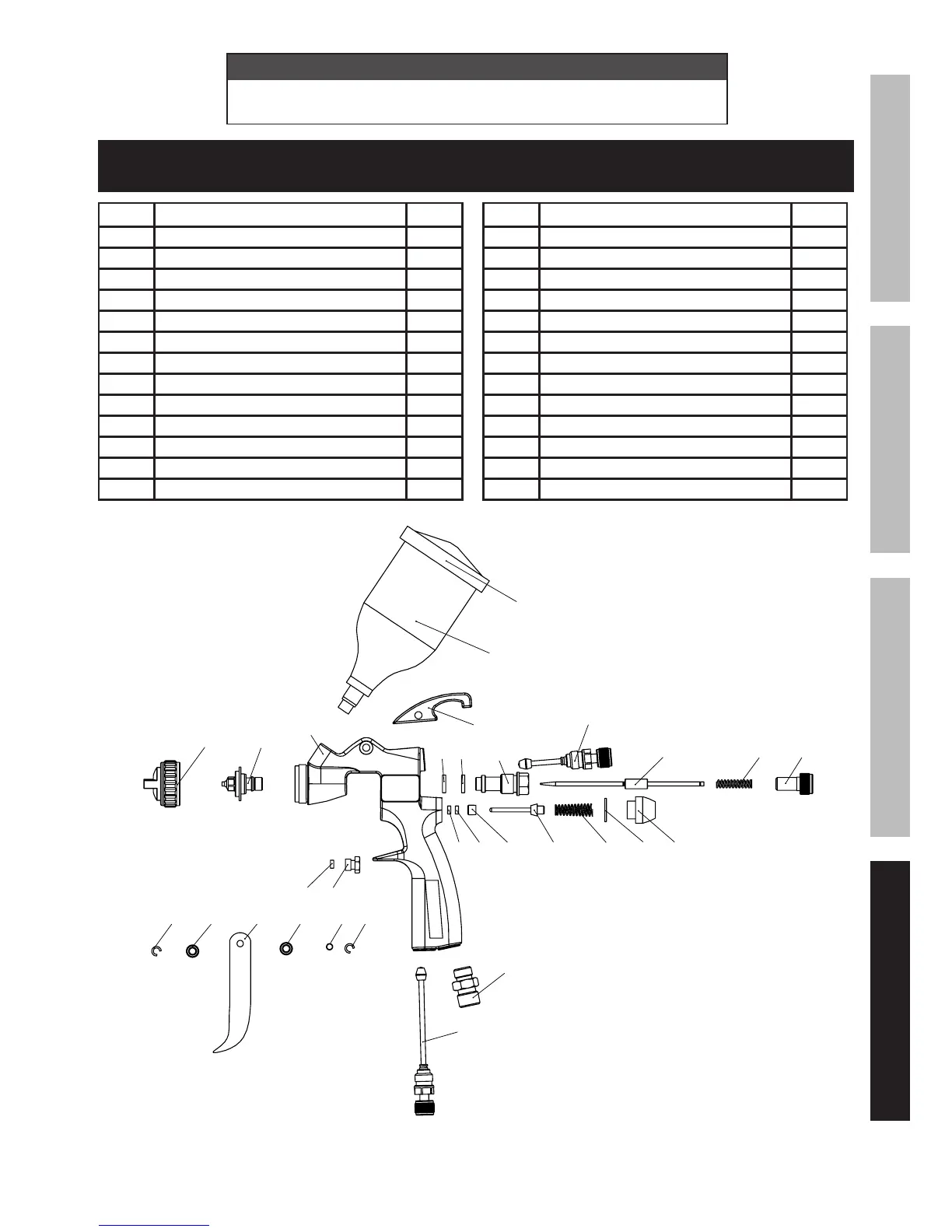

Parts List and Assembly Diagram for Detail Spray Gun
3
6
9
8
7
7
10 11 12
1816151413
2526
21 23 24 23 22 21
20
19
17
1
13
2
4
5
