SKU 90106 PAGE 4
2. Tighten the Frame Assembly (#1) with Bolt (#20). Center the assembly to insert Bolt (#20).
See Figure A and B.
3. Handlebar (#10) needs to be secured into the Front Assembly with the Stem Cap (#11)
with4 Bolts (#21). Tighten each Bolt 1/2 turn past snug. Adjust Handlebar (#10) to proper
angle and tighten each bolt completely making sure the torque is even.
4. Lubricate all moving metal parts that come in contact with other metal parts. Use a light
weight all-purpose oil. Do not oil plastic or nylon parts.
5. The tires are Pneumatic (air inflated) tires. After much riding or storage through winter,
inflate tires to tire pressure written on the side of the tires. First fill the tires to 1/2 the
recommended pressure, then check the alignment of the tire to see if it is seated
correctly. Fill the tires to full recommended pressure when you establish that they are
seated correctly.

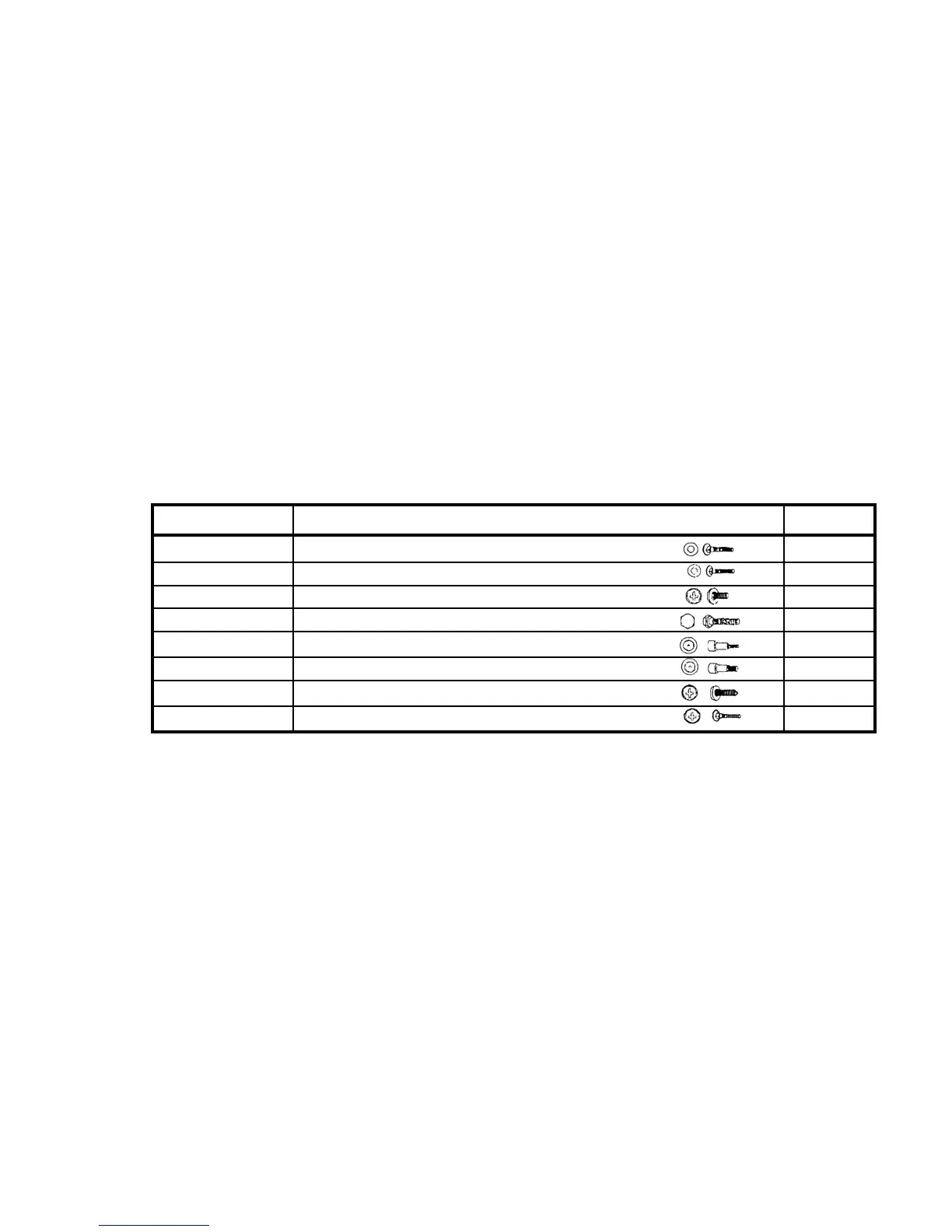

HARDWARE PARTS LIST
PART # DESCRIPTION QTY
14 M6 X 42mm with 1 Nut & 6 Washers 1
16 / 17 M6 X 32/M6 X 55mm with 3 Nuts & 6 Washers 3
18 M5 X 8mm with 5 Washers 4
19 M8 X 32mm with 2 Nuts & 8 Washers 2
20 8 X 125mm 1
21 M6 X 22mm 4
22 ST4.2 X 10mm with 5 Washers 3
23 M6 X 42mm with 2 Nuts & 6 Washers 2
To Next Page
