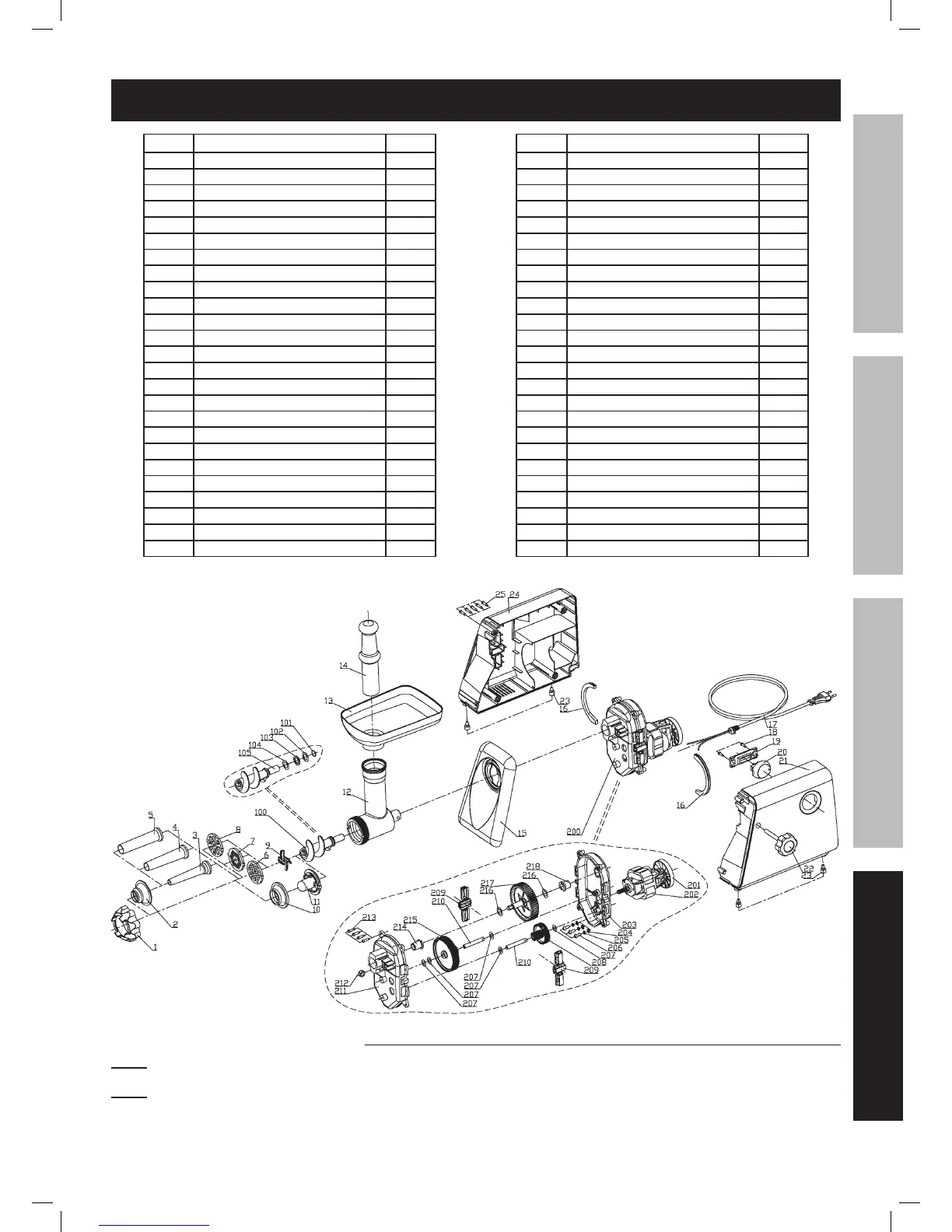

Parts List and Diagram
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Part Description Qty
1 Cap 1
2 Sausage Maker Adapter 1
3 Small Sausage Maker 1
4 Medium Sausage Maker 1
5 Large Sausage Maker 1
6 Medium Cutting Plate 1
7 Fine Cutting Plate 1
8 Coarse Cutting Plate 1
9 Cutting Blade 1
10 Kubbe Attachment A 1
11 Kubbe Attachment B 1
12 Head 1
13 Hopper Plate 1
14 Food Pusher 1
15 Housing Opening 1
16 Rubber Half-Ring 2
17 Power Cord 1
18 Self-Tapping Bolt (M4×16) 2
19 Switch Holder 1
20 Switch 1
21 Left Motor Housing 1
22 Locking Knob 1
23 Rubber Underlay 4
24 Right Motor Housing 1
25 Self-Tapping Bolt (M4×20) 5
Part Description Qty
100 Feed Screw 1
101 Wire Loop 1
102 Washer (M14×0.8) 1
103 POM Washer 1
104 Washer (M14×0.2) 1
105 Feed Screw Base 1
200 Gearbox 1
201 Fan 1
202 Motor 1
203 Rear Gearbox 1
204 Washer (M5) 3
205 Spring Washer (M5) 3
206 Bolt (M5×12) 3
207 Washer (M8×0.2) 5
208 Gear C 1
209 Rubber Shroud 6
210 Small shaft 2
211 Front Gearbox 1
212 Nut (M8) 1
213 Self-Tapping Bolt (M4×18) 4
214 Bushing A 1
215 Gear A 1
216 Washer (M12×0.2) 2
217 Gear B 1
218 Bushing B 1
