BBaatttteerryy
correct
Wrong
IMPORTANT !
Before tightening the 4 bolts for the diaphragm cover
(B) the diaphragm must be positionned between centre
and top to ensure correct sealing between diaphragm
pump housing and diaphragm cover. Turn crank shaft if
necessary
To obtain a long life of the battery and ensure that the machine always is ready for use, the battery should be
recharged regularly.
To prevent any risk of damage to electrical and electronic components or cause severe personal
injury , take the following precautions:
WARNING
- Wear rubber gloves and goggles
- Never disconnect the battery terminals while the engine is running
- Never charge a frozen battery, it may be explode (minimum temperature : 16°).
- Check the density of electrolyte. (see DEUTZ notes).
- Check the polarities before reconnecting the terminals.
- Disconnect the terminals of the battery and place the latter in a well ventilated place, free from any source of sparks and flames
(no smoking), before charging it.
- Disconnect the battery terminals and the alternator before to carry out electric welding on the machine
- A defective battery can damage electronic equipment
- Clean the battery terminals if necessary

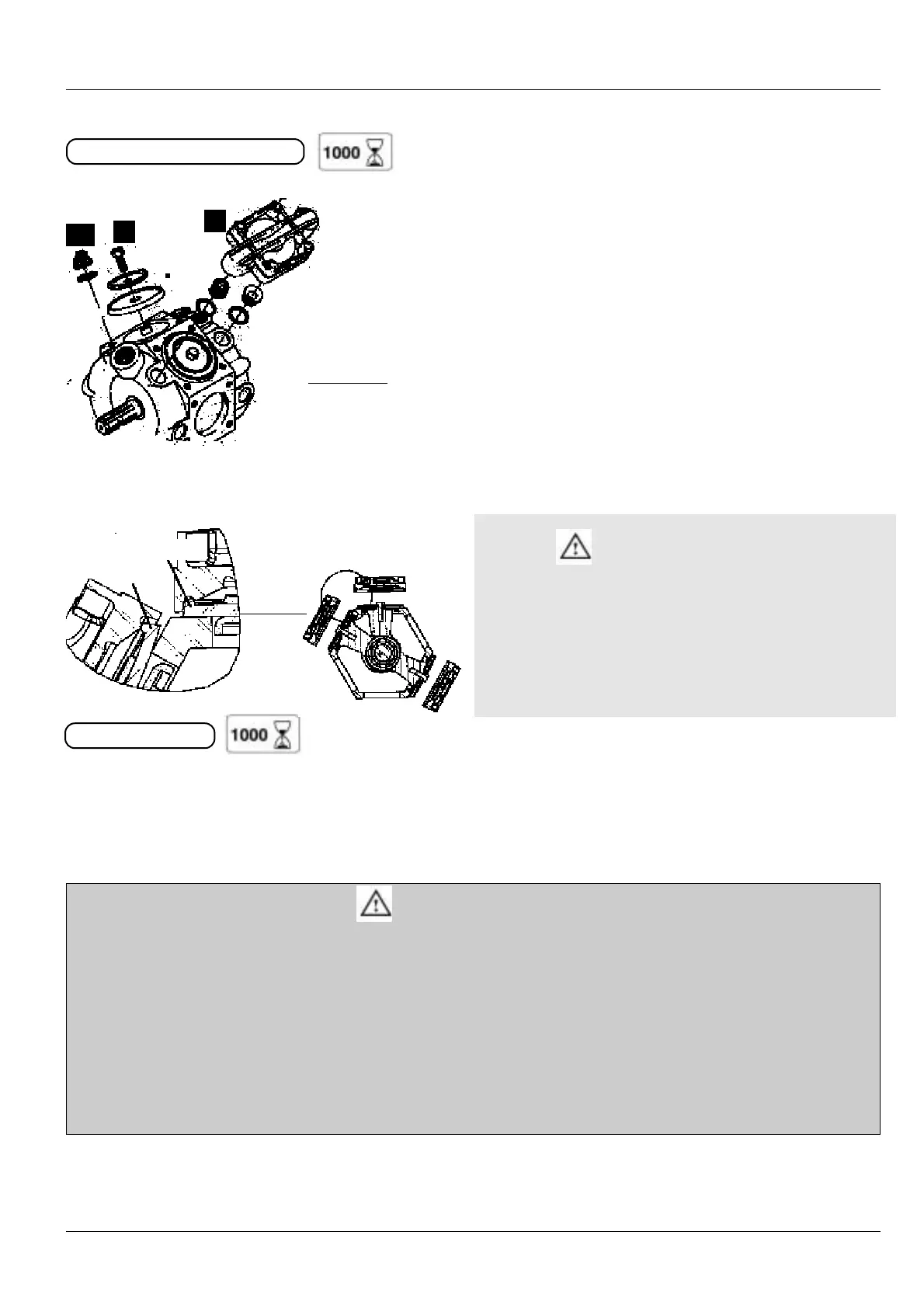

- Remove valve cover
((11))
before changing the valves
((22))
- Note their orientation so they are replaced correctly !
One special valve
((22AA))
is used. It has to be placed in the valve opening
shown
- It is recommended to use new gaskets
((33))
when changing or chec-
king the valves.
- Tighten the bolts with the torque setting (
9900
Nm)
- Remove the diaphrams cover
((44))
.
- If fluids have reached the crankcase, re-grease the pump thoroughly. Also
check that the drain hole at the bottom of the pump is not blocked.
- Reassemble with the torque setting (
9900
Nm)
11
44
22AA
DDiiaapphhrraammss
VVaallvveess aanndd ddiiaapphhrraaggmmss
ALPHA PLUS HARDI NOVA
MM AA II NN TT EE NN AA NN CC EE
CHAPTER
55-
17
