(C2040)

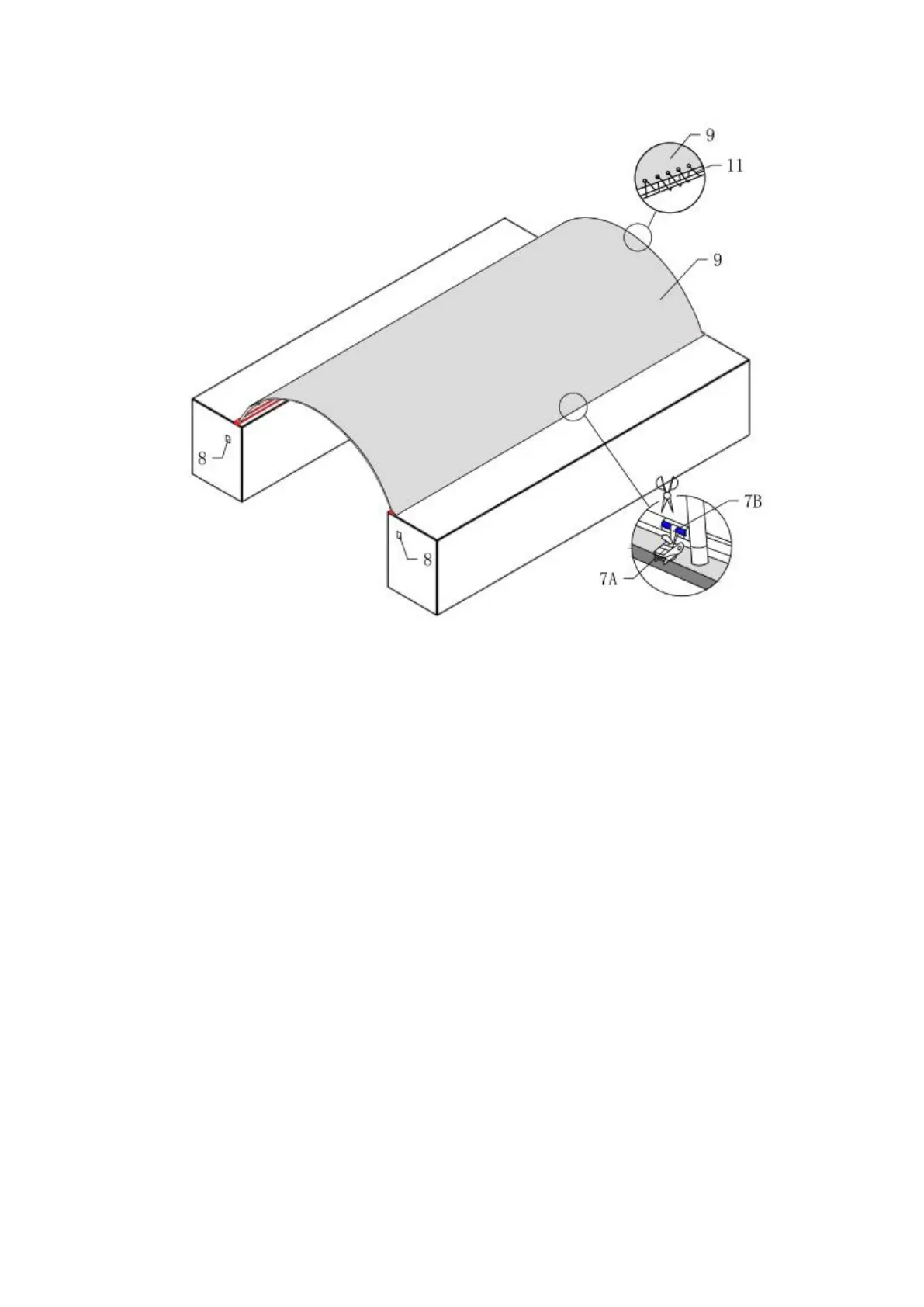

Figure 5
Install the Roof Cover
NOTE: DO NOT install the cover onto the frame of your building in high wind
conditions. A slight breeze is the most advantageous for cover installation. To take
advantage of the breeze, pull the cover up over the arches with the breeze blowing in
the cover like a sail filled with air.
1. Put the Roof cover (No. 9) EVENLY, CARFULLY AND SLOWLY on the
frame. Adjust the cover so that it is square and evenly centered on the frame.
2. Weld the Angle seats (No. 8) on each container and use Rope (No. 11)
to knit the cover on the two side arches, finally tie the Roof cover to the Angle
seats.
3. Cut pockets according to the position of the base plates and put the Lower
Tension tubes for roof cover (No. 7) into the pocket of roof cover. Then
use the Rope (No. 11) to tie down the Lower tension tubes like the Figure
4. Finally install the Plastic plug for base rail section (part code 10) into two
