B--FRAME INSTALLATION
(C2020)

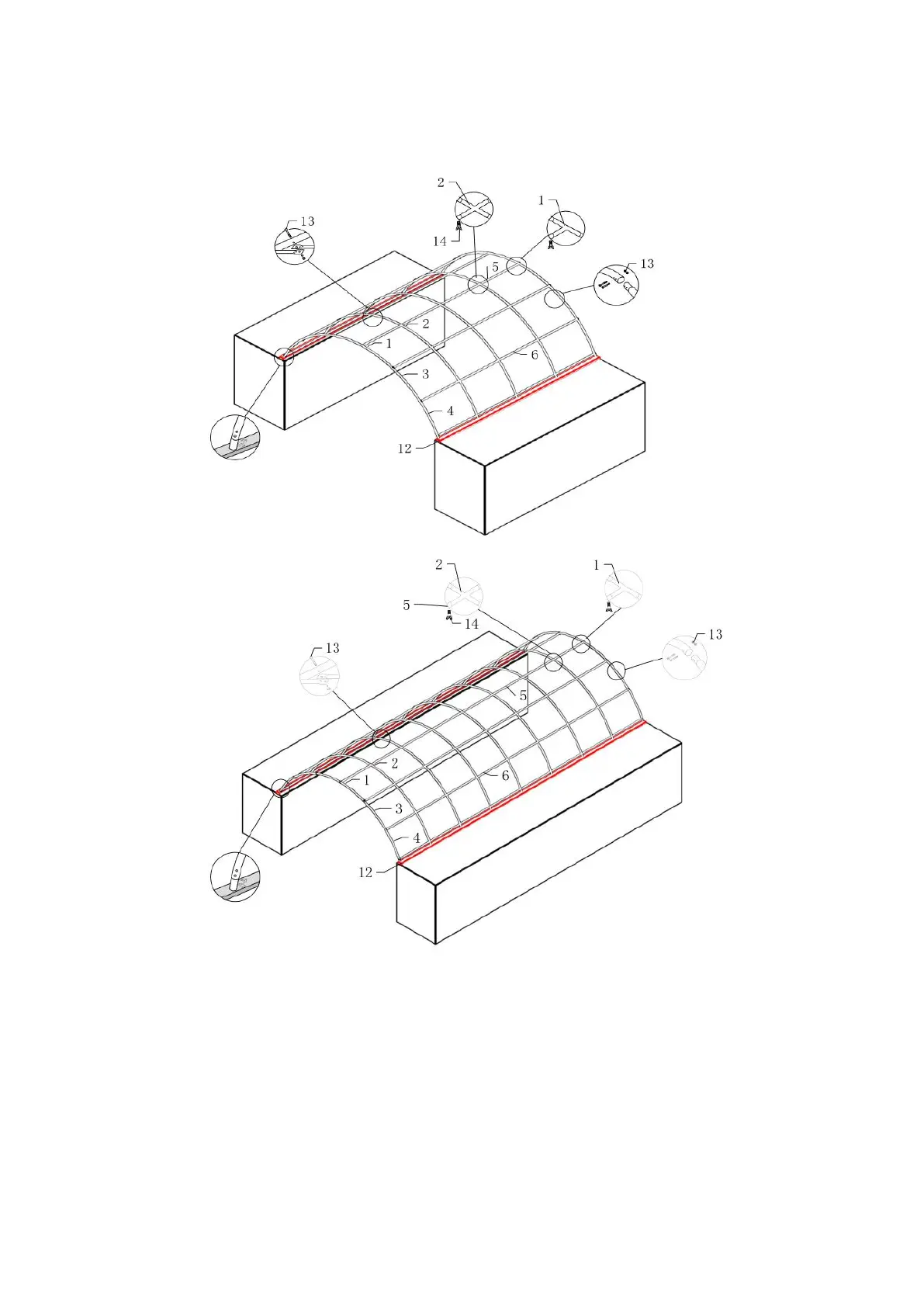

Figure 2 ( C2040)
1. As Figure 2 shown find one piece of Three-way fitting (No. 1), two pieces of Top
bent tube (No. 3) and two pieces of Sidewall bent tubes (No. 4). To connect them by
Screw M8x70mm
（
No. 13
）
.Which makes one group of arch. Please NOTE the
direction of the screw. DO NOT install the screws on the top of the truss where the
fabric will rest.
2. Life an assembled arch into one base plate and force the other end of the arch into
the opposite base plate.
