Hardlife Utility C2040H User Manual

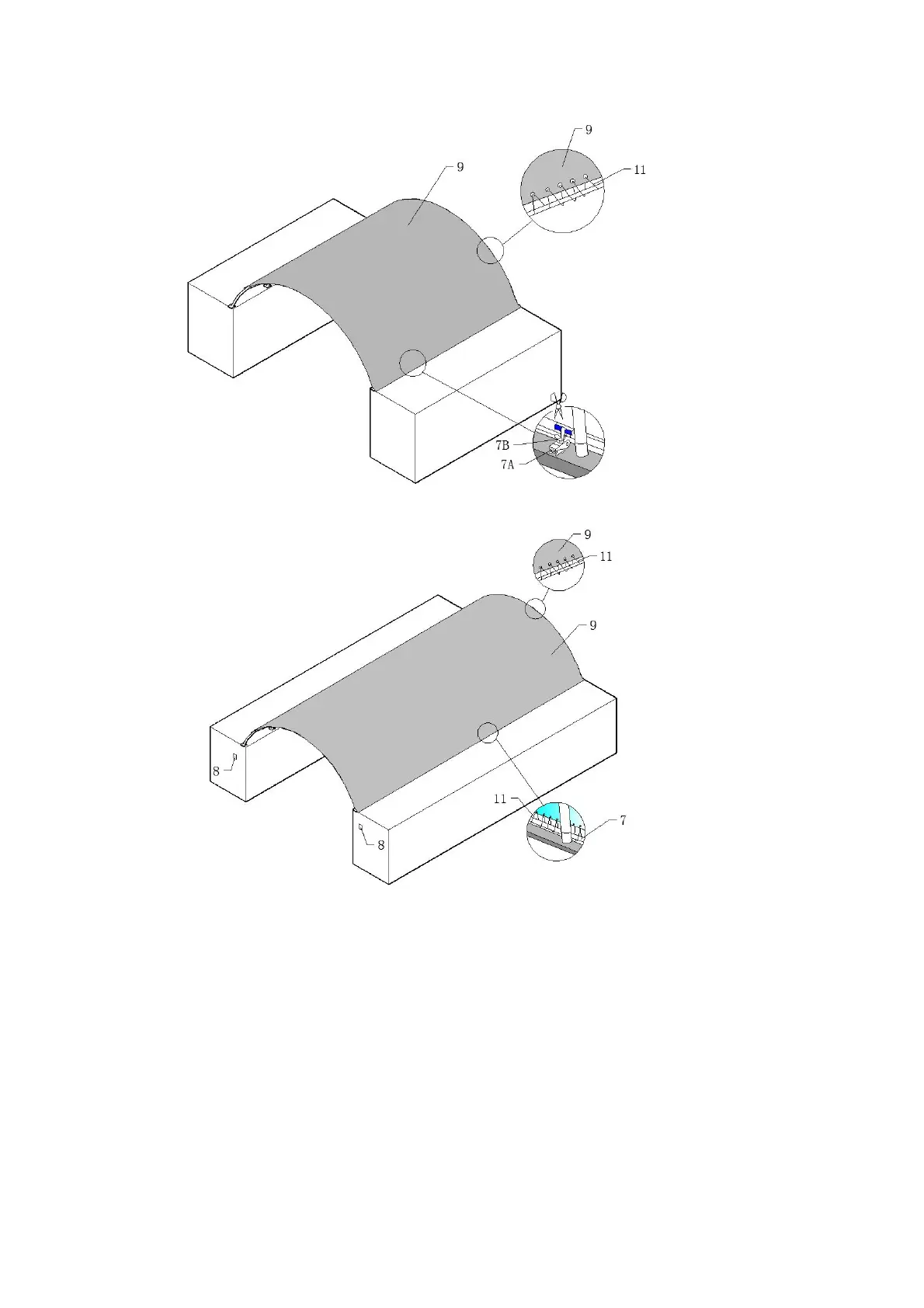

1. Put the Roof cover (part code 9) EVENLY, CARRFULLR AND SLOWLY on the
frame. Adjust the cover so that it is square and evenly centered on the frame.
2. Weld the Angle seats (part code 8) on each container and use Rope (part code 11)
to knit the front & back ends of the cover to the end arches..
3. Cut pockets above the rachet(No.14B) according to the position of the base plates
and put the Lower Tension tubes for roof cover (part code 7) into the pocket of roof
cover. Then use the Rachet Straps (part code14A) to tie down the Lower tension tubes
like the Figure.
3. Finally install the∮25mm Plastic plug for base rail section (part code 10) into two
end of the Lower tension tubes.

Hardlife Utility C2040H Specifications

General

Brand	Hardlife Utility
Model	C2040H
Category	Shelters
Language	English
