8. Use the ropes (component code 11) to lace the roof cover grommet aps around the front and rear arches
of the frame, as shown in Figures 13 and 14. Start at the top middle of each arch, and lace down to the
sides. You can add rope length by tying pieces together or cutting the rope as necessary.
9. Finally, for the C2620 shelter, tie the roof cover to the angle seats, as shown in Figure 15.
NOTE:
Ensure that you do not over tighten the lacings.
10. Your assembly is now complete.
WARNING
Never leave the roof cover unattached under any circumstances until the nal assembly and tighten-
ing have been completed.

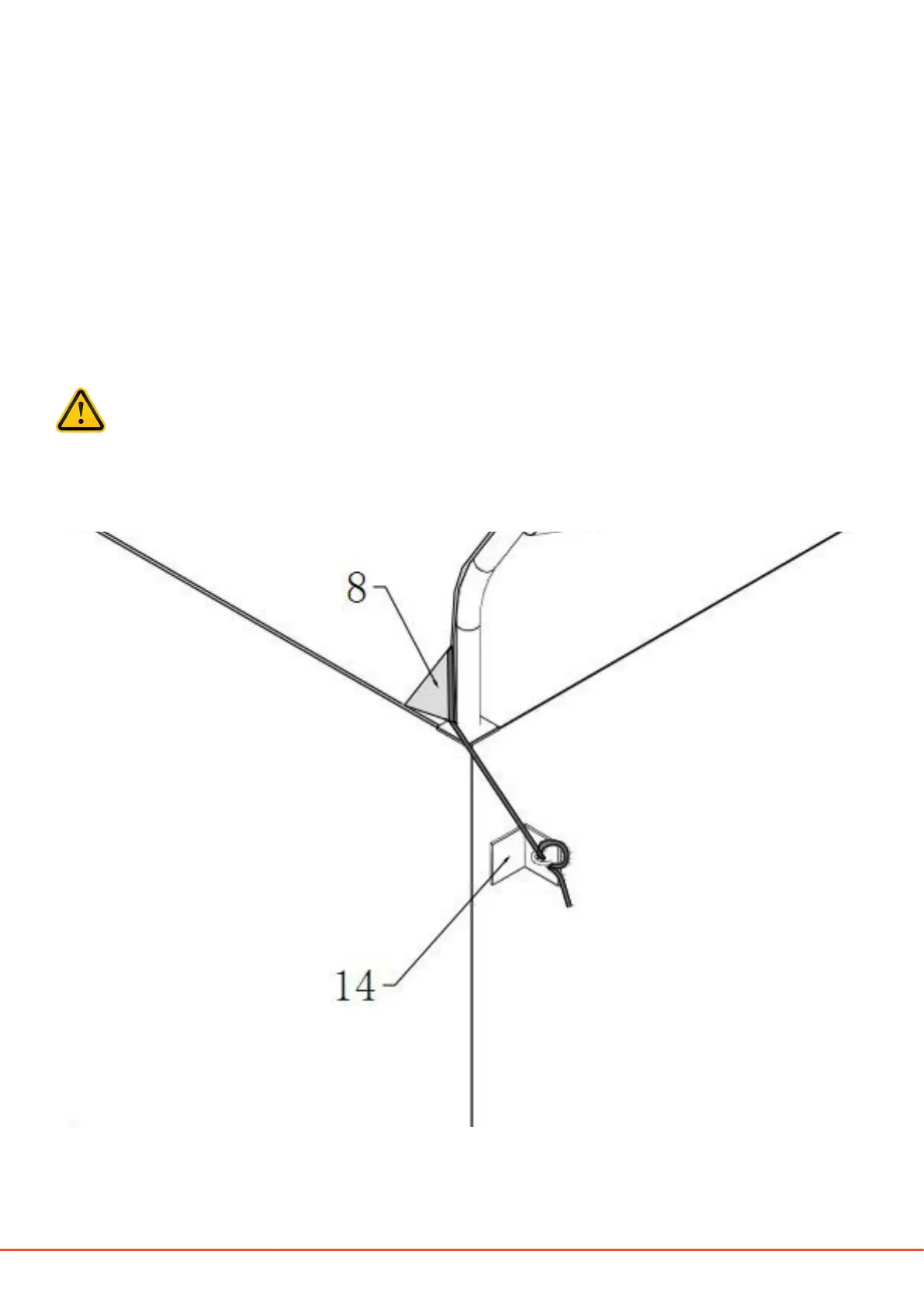

Figure 15 (C2620)
