ESMT Preliminary F49L320UA/F49L320BA
Elite Semiconductor Memory Technology Inc. Publication Date : Jan. 2008
Revision: 0.4 2/54

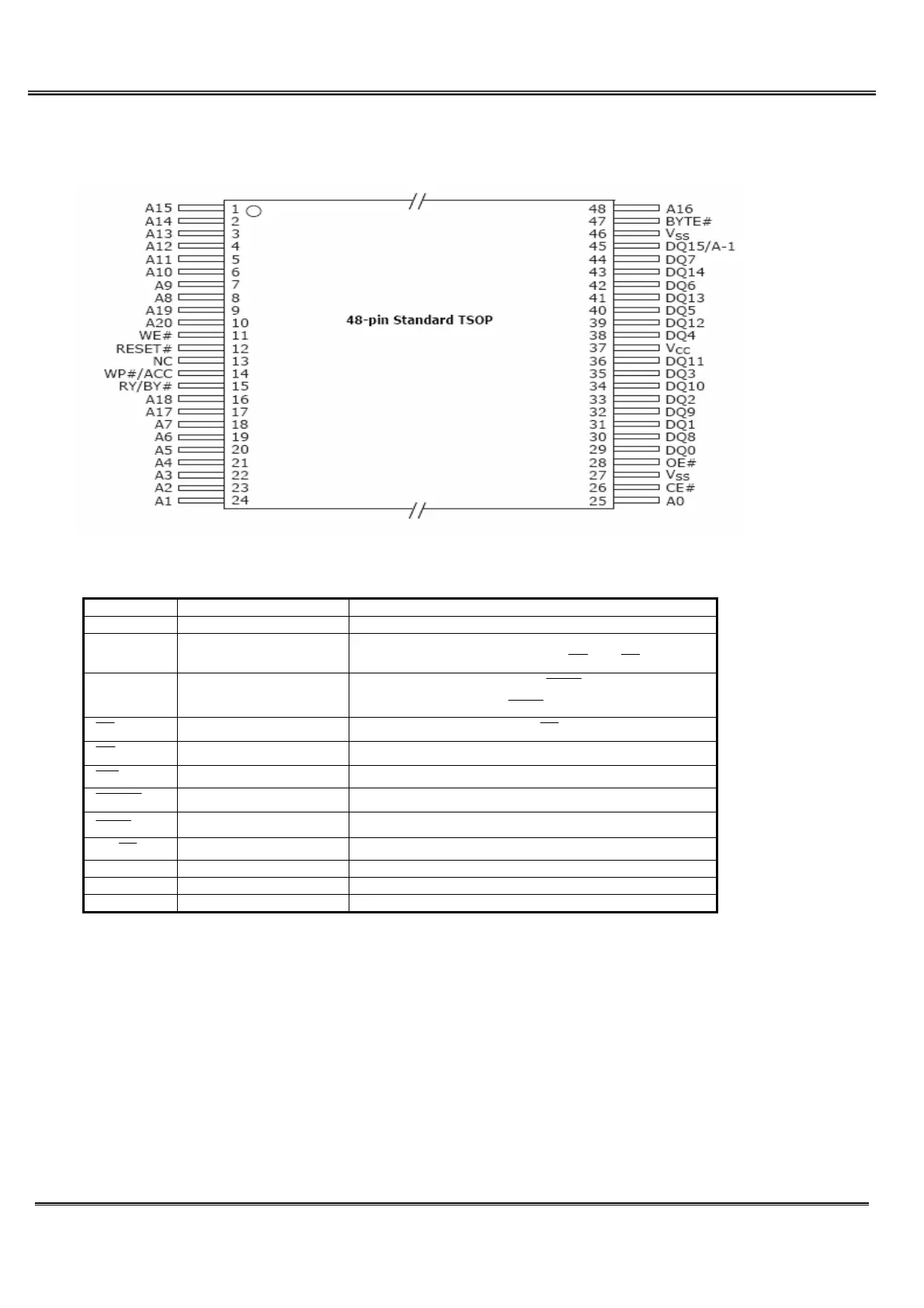

4. PIN CONFIGURATIONS
4.1 48-pin TSOP
4.2 Pin Description
Symbol Pin Name Functions
A0~A20 Address Input To provide memory addresses.
DQ0~DQ14 Data Input/Output
To output data when Read and receive data when Write.
The outputs are in tri-state when
OE or CE is high.
DQ15/A-1
Q15 (Word mode) /
LSB addr (Byte Mode)
To bi-direction date I/O when
BYTE is High
To input address when
BYTE
is Low
CE
Chip Enable
To activate the device when CE is low.
OE
Output Enable To gate the data output buffers.
WE
Write Enable To control the Write operations.
RESET
Reset Hardware Reset Pin/Sector Protect Unprotect
BYTE
Word/Byte selection input To select word mode or byte mode
RY/ BY
Ready/Busy To check device operation status
V
CC
Power Supply To provide power
GND Ground
NC No connection
harman/kardon
AVR 360/230 Service Manual
Page 64 of 138

Harman Kardon AVR 360 Specifications

General

Impedance	8 Ω
Receiver type	Surround
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.07 %
Power output per channel (1KHz@6 Ohm)	130 W
Power output per channel (20-20KHz@8 Ohm)	55 W
Headphone outputs	1
Headphone connectivity	-
HDMI in	4
Digital audio optical in	3
Product color	Black, Silver
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD, DTS-HD Master Audio
Handheld remote control	No
Apple docking compatibility	Not supported
Connectivity technology	Wired
Supported radio bands	AM, FM
Preset stations quantity	30

Weight and Dimensions

Depth	382 mm
Width	440 mm
Height	165 mm
Weight	13400 g
