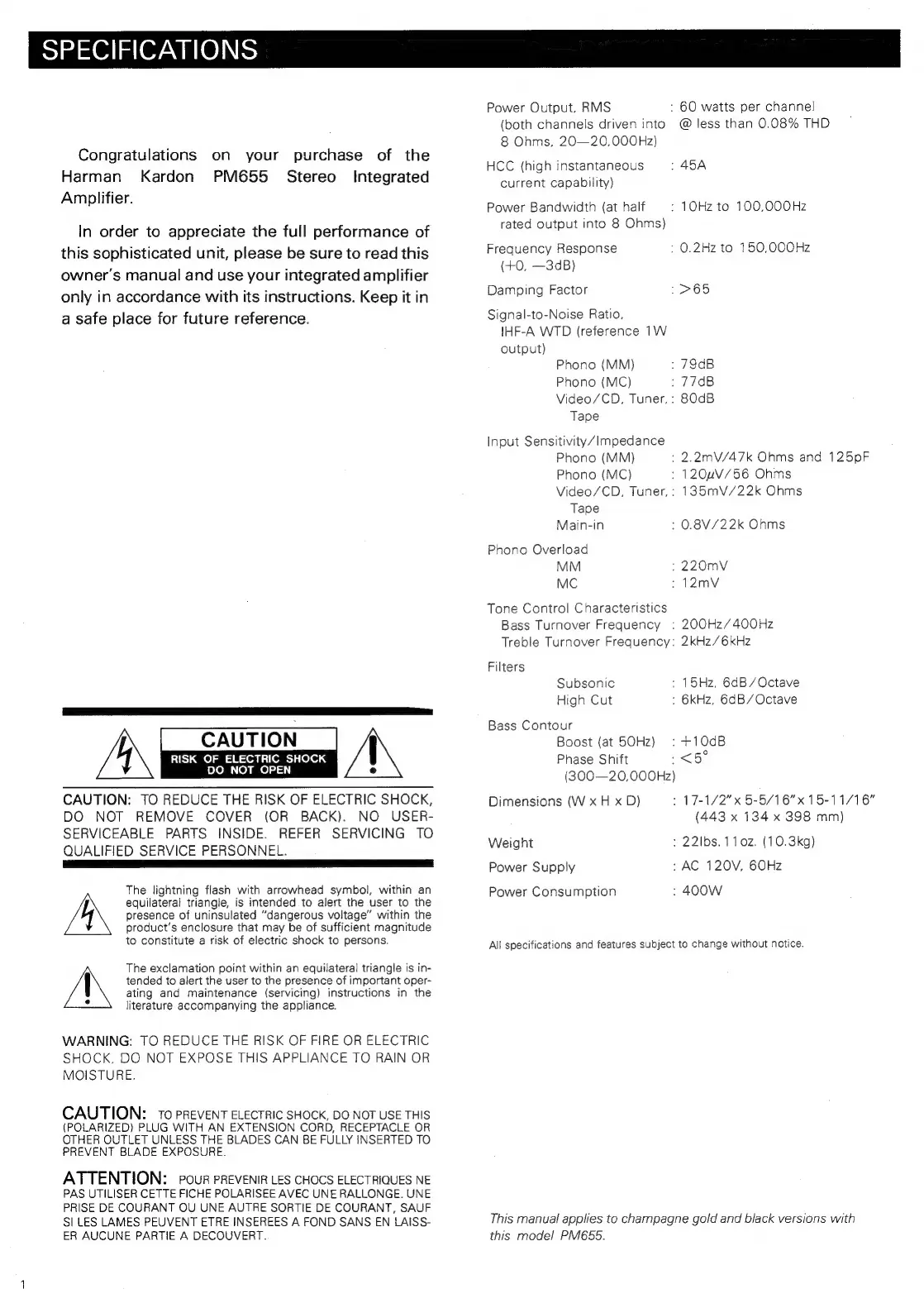

SPECIFICATIONS
Congratulations on your purchase of the
Harman Kardon PM655_ Stereo Integrated
Amplifier.
In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owner’s manual and use your integrated amplifier
only in accordance with its instructions. Keep it in
a safe place for future reference.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is in-
tended to alert the user to the presence of important oper-
ating and maintenance (servicing) instructions in the
literature accompanying the appliance.
camea
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION: to PREVENT ELECTRIC SHOCK, DO NOT USE THIS
(POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.
ATTENTION: pour PREVENIR LES CHOCS ELECTRIQUES NE
PAS UTILISER CETTE FICHE POLARISEE AVEC UNE RALLONGE. UNE
PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT, SAUF
S| LES LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISS-
ER AUCUNE PARTIE A DECOUVERT.
Power Output, RMS
(both channels driven into
8 Ohms, 20—20,000Hz)
HCC (high instantaneous
current capability)
Power Bandwidth (at half
rated output into 8 Ohms}
Frequency Response
(+0, —3dB)
Damping Factor
Signal-to-Noise Ratio,
{HF-A WTD (reference 1W
output)
Phono (MM)
Phono (MC)
Video/CD, Tuner, :
Tape
Input Sensitivity/Impedance
Phono (MM)
Phono (MC)
Video/CD, Tuner, :
Tape
ain-in
Phono Overload
M
c
Tone Control Characteristics
Bass Turnover Frequency
Treble Turnover Frequency:
Filters
Subsonic
High Cut
Bass Contour
Boost (at 50Hz)
Phase Shift
(300—20,000Hz)
Dimensions (W x H x D)
Weight
Power Supply
Power Consumption
: 60 watts per channel!
@ less than 0.08% THD
: 4BA
: 10Hz to 100,000Hz
: 0.2Hz to 150,000Hz
/>65
: 79dB
: 77dB
80dB
» 2.2mV/47k Ohms and 125pF
: 120uV/56 Ohms
135mV/22k Ohms
: 0.8V/22k Ohms
> 220mV
: 12mV
: 2O00Hz2/400Hz
2kHz/6kHz
: 15Hz, 6dB/Octave
: 6kHz, 6dB/Octave
: +10dB
-<6°
: 17-172” x 5-5/16”x 15-11/16"
(443 x 134 x 398 mm)
: 22\lbs. 110z. (10.3kg)
: AC 120V, 60OHz
: AOOW
All specifications and features subject to change without notice.
This manual applies to champagne gold and black versions with
this model PM655.
