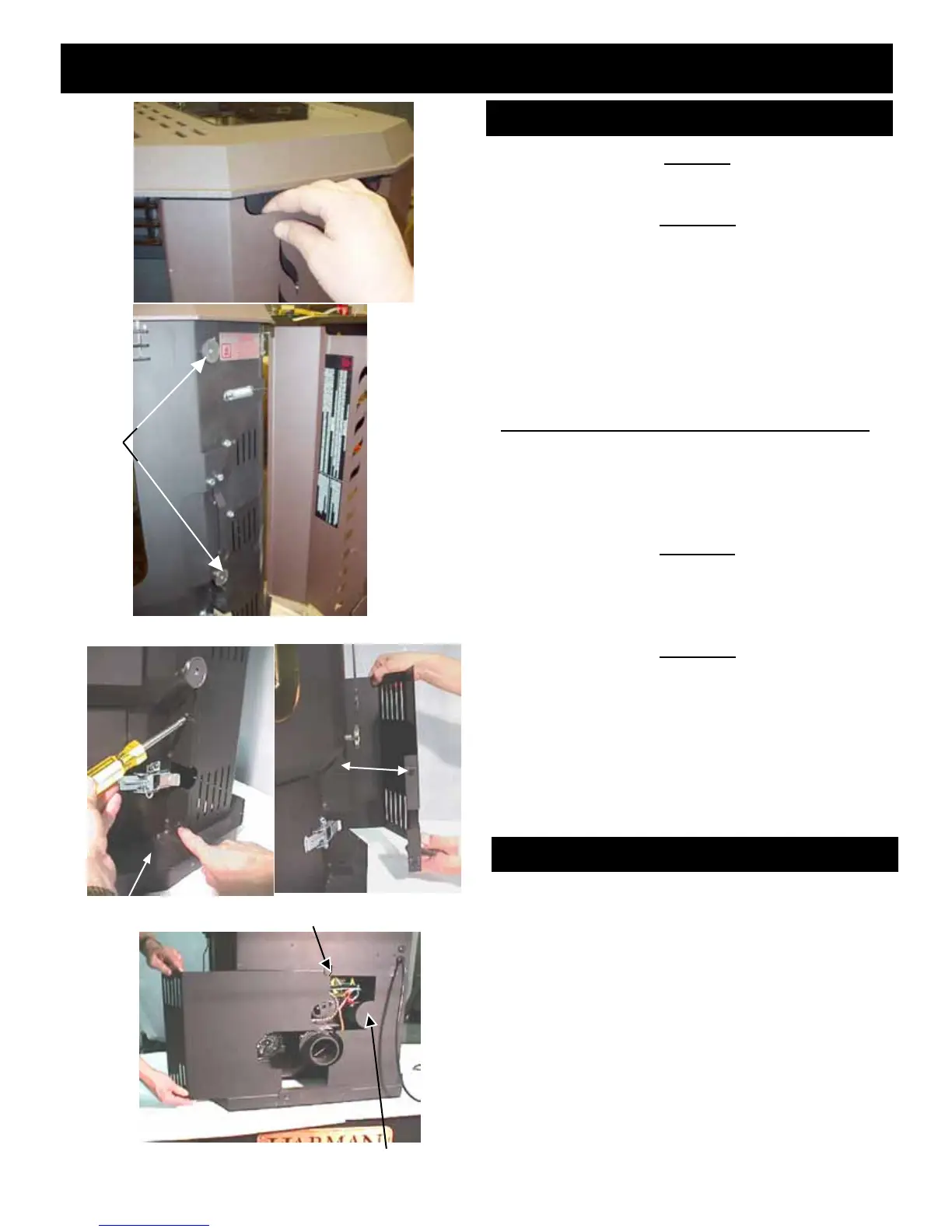

Fig. 9
Fig.10
Fig.11
Fig.12
Fig.13
Side Door
Magnets
Use hand hole to swing open side doors to at least
90
o
.
Remove side doors by lifting upward on the door until
the bottom pin is out of its hole. Move the bottom of
the door out and away from the pedestal base about
1/2". Allow the door to slide downward until the top
door pin is out of its top hole.
There are (2) #10 hex head screws holding each rear
shield. Using a 5/16" nut driver or socket, loosen the
(2) screws about 4 or 5 turns.
Slide the rear shields straight outward until the
ends come out of the rear retaining clips, as seen in
Fig.13.
There are two bolts holding the stove to the pallet (see
Fig. 11) Remove the bolts to move the stove.
1. When replacing the shields, always insert the top
and bottom ends of the sheet metal into the retaining
clips rst.
2. Slide the shields straight inward until the (2) hex
head screws are fully inserted into the stove slots.
3. Make sure the top edges of the shield are against
the hopper bottom and tighten screws
.
The rear shields are split around the ue tail pipe
and outside air knockout. This allows removal and
installation of the rear shields with the unit completely
installed.
Rear Shield Retaining clip
Outside Air
Knockout
Pallet Hold Down Bolts
Side
Door
Side Door
Rear
Shield
Rear
Shield
Rear
Shield
