Basslink Mini
EN

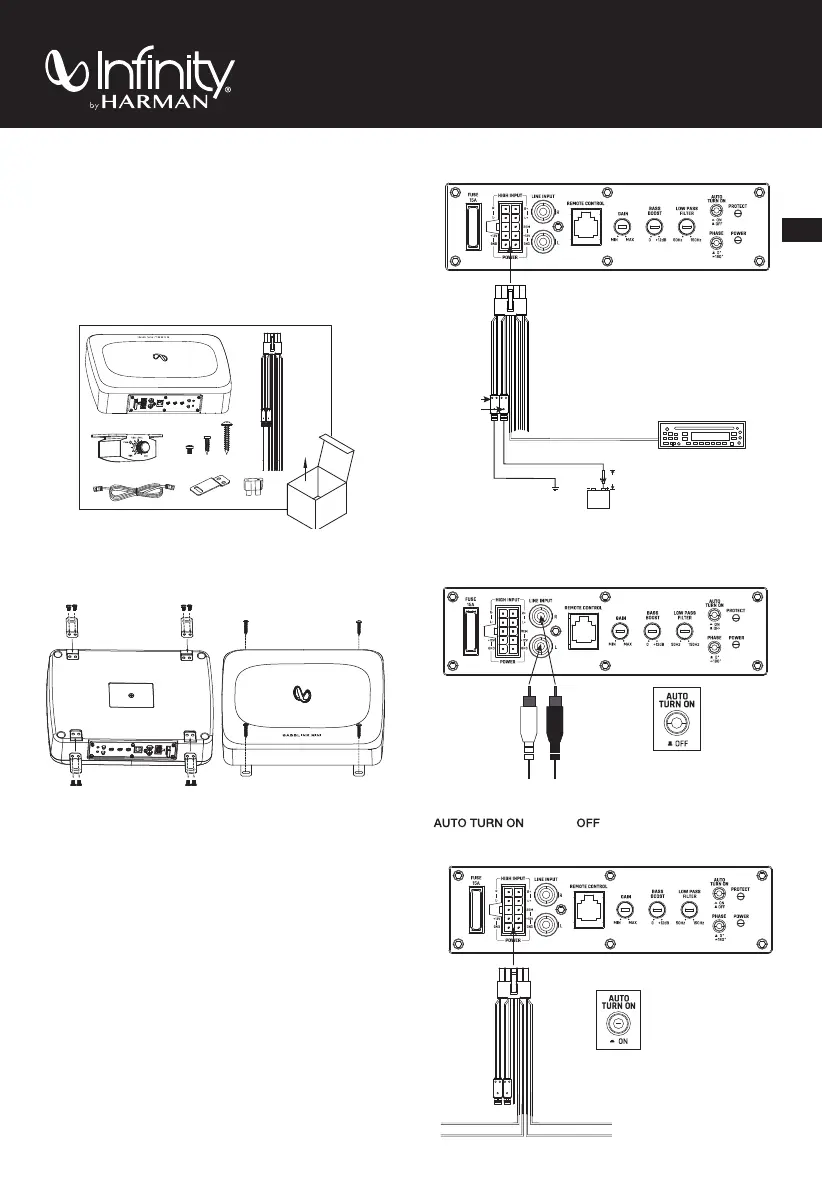

WIRING FOR POWER AND GROUND
Remote turn-on (blue) to
aftermarket stereo REM out
+12V
(red)
Ground
(black)
Fuse holder, 15A fuse
Chassis
ground (–)
Battery
18” (46cm)
WIRING FOR AUDIO SIGNAL
Line-level from aftermarket stereo
Right line output
(from stereo)
Left line output
(from stereo)
NOTE: When connecting an aftermarket stereo to the Infinity
BassLink MINI’s line-level inputs and remote turn-on wire, set the
button to .
Speaker-level from factory or aftermarket stereo
Right + (from stereo)
Right – (from stereo)
Left – (from stereo)
Left + (from stereo)
ABOUT THE MANUAL
This manual displays general Owner’s Manual guideline. However,
please note that proper installation of mobile audio components
requires qualified experience. If you do not have the knowledge
and tools to successfully perform this installation, we strongly
recommend consulting an authorized Infinity dealer about your
installation options. Keep all instructions and sales receipts for
reference.
WHAT’S IN THE BOX
1X
1X
1X
1X
2X 4X8X
4X
1X
MOUNTING THE BASSLINK MINI
Recommended location: under the passenger seat
NOTE: Before securing the BassLink MINI with mounting screws,
check beneath the mounting surface to ensure you will not
puncture fuel lines, brake lines, or any vehicle wires. Also ensure
that the BassLink MINI will not interfere with seat operation or
wiring, or block underseat heater/air conditioning vents.
