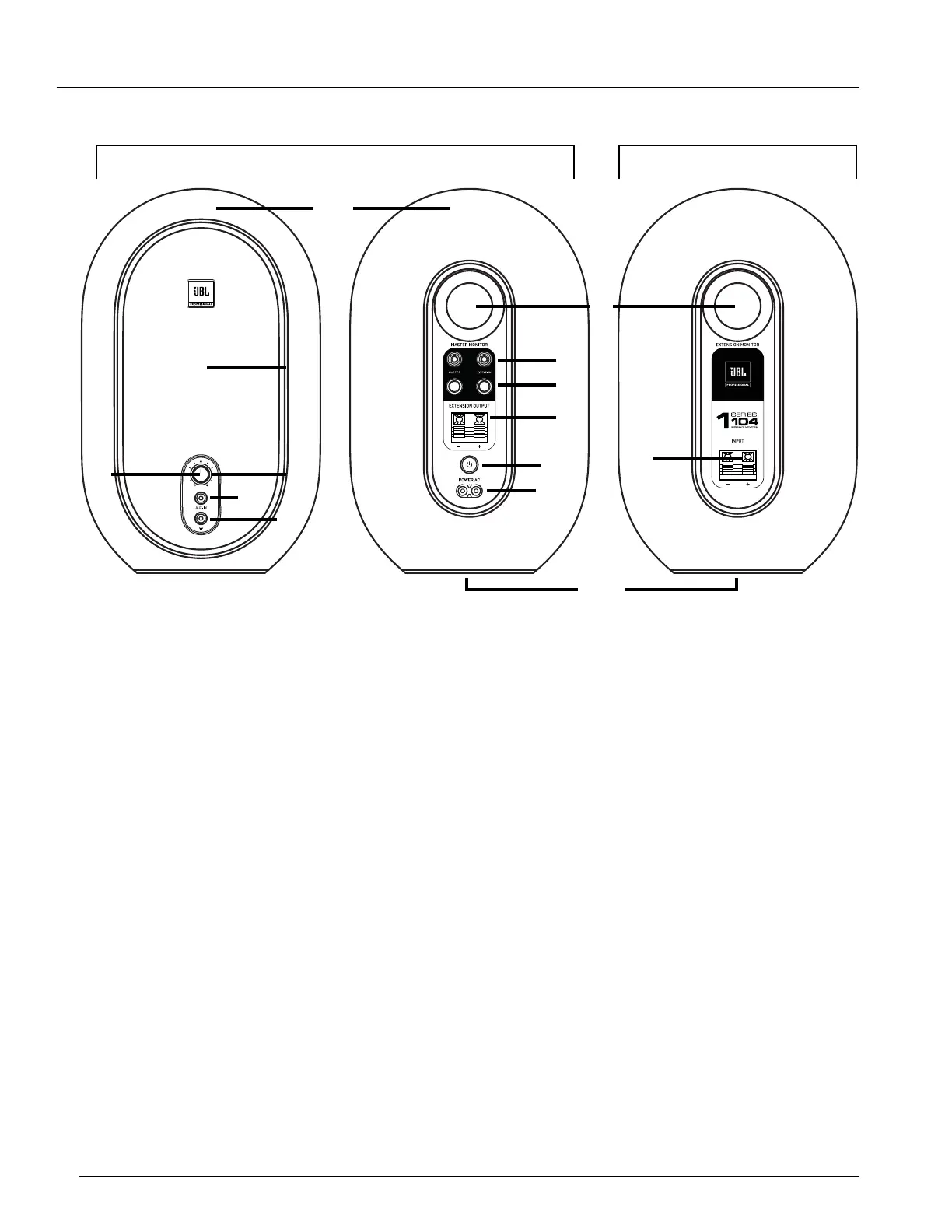

1. COAXIAL TRANSDUCER (SPEAKER) – Separate high and low frequency transducers are mounted in a
single frame to create a full range speaker that reproduces the entire audio range.
2. POWER INDICATOR – Illuminates when power is connected and the POWER switch is set to ON.
NOTE: The POWER indicator appears partially illuminated when the MASTER MONITOR is in Standby
Mode.
3. VOLUME CONTROL – Use this control to set the maximum listening level. This control is also used to
enable and disable Standby Mode.
4. AUX INPUT– Connect equipment with a 3.5 mm (1/8") stereo connector, such as personal music players
and smart phones, to this input.
5. HEADPHONE OUTPUT – Connect headphones with a 3.5 mm ( 1/8") stereo connector to this output.
NOTE: Connecting headphones to the HEADPHONE output will mute the speakers.
6. LOW FREQUENCY PORTS – The patented Slip Stream™ Port works in conjunction with the transducer
to provide accurate low frequency performance.
7. RCA INPUTS – Connect consumer equipment to these inputs using unbalanced RCA cables.
NOTE: Signal connected to the RCA input labelled "MASTER" will be reproduced by the MASTER
MONITOR. Signal connected to the RCA input labelled "EXTENSION" will be reproduced by the
EXTENSION Monitor. These inputs are designed to accept signals with -10 dBV nominal level.
