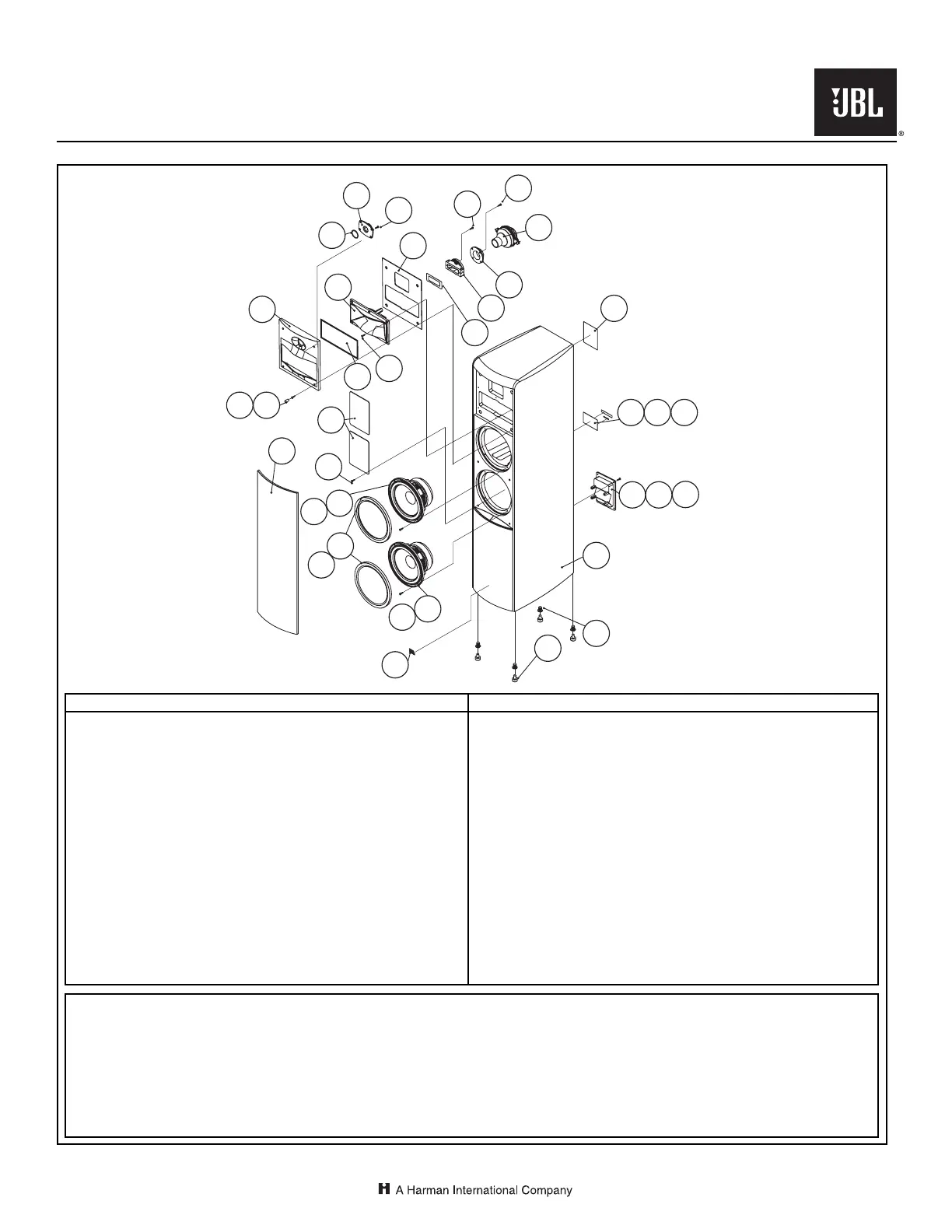

EXPLODED VIEW
Technical Manual
LS60
LS60
7/08
Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, New York 11797
ITEM PART NO. DESCRIPTION QTY.
Screw, Woofer 4 x 25FA 8
Screw, Crossover Network 3 x 20BA 12
Screw, Terminal Cup 3 x 15BA 4
28 P07980000 Grille Cup 8
29 P08170000 Gasket, UHF 1
30 Not for Sale Label 1
31 Not for Sale Label 1
32 P08660000 Foot 4
33 P05930003 Terminal Cup w/Binding Posts 1
34 Visit www.jbl.com LS series Owner’s Manual 1
35 P00490002 Warranty Card 1
36 M00050006 Spike Foot Set 1
37 M00050007 Coasters (Set) 1
38 M00050013 Packing Set 1
39 P08520000 Outer Carton 1
40 CS06-6 Shorting Straps (Right/Left Pair) 1
SERVICE NOTES
1) Remove the grille.
2) Access to the woofer and crossover network is accomplished by gently prying the woofer trim ring out of the counterbore, which is attached with a friction fit,
using a small, flat-blade screwdriver or similar tool. The four Phillips screws will then be visible.
3) Access to the HF/UHF sections is accomplished by first extracting the upper four rubber grille retainers. This can be accomplished by a) inserting a long screw
with coarse threads into the cup hole, thread the screw, and extract the cup, or b) carefully pulling them out of their cavities with long-nosed pliers or a similar
tool. It’s possible each grille cup could be damaged since the cups are affixed with RTV (silicon seal). Each cavity should be cleaned out with a 1/4" drill bit
before the Phillips head screw is turned. (Power tools are not recommended here). Remove the four screws, then pull off the faceplate with the UHF driver
attached to it.
4) Access the LF, UHF tweeter, or crossover network as needed.
5) Woofer Replacement: Make sure the woofer is exactly centered in the counterbore, otherwise the trim ring will not fit in place.
ITEM PART NO. DESCRIPTION QTY.
1 U00700001 UHF Tweeter 1
2 U00600000 HF Tweeter 1
3 U00670001 6-1/2" Woofer 2
4,5 M00050008 LF/UHF Faceplate w/Gasket 1
6–12 M00050009 HF Horn Assembly 1
13,14 M00050010 Trim Ring, Woofer w/Felt Gasket 2
15 Not for Sale Label 1
16 Not for Sale Label 1
17 P08610000 Front Grille 1
18 Not for Sale LS60 Cabinet 1
19 P02780000 Insert Nut 4
20 P05750023 Crossover Network 1
21 P08150000 JBL Logo 1
22–27 M00050012 Screw Set Includes the Following: 1
Screw, UHF #6-32 x 3/8BM 4
Screw, LF Horn 4 x 20BA 6
Screw, LF/UHF Faceplate 3 x 12PA 4
