9.

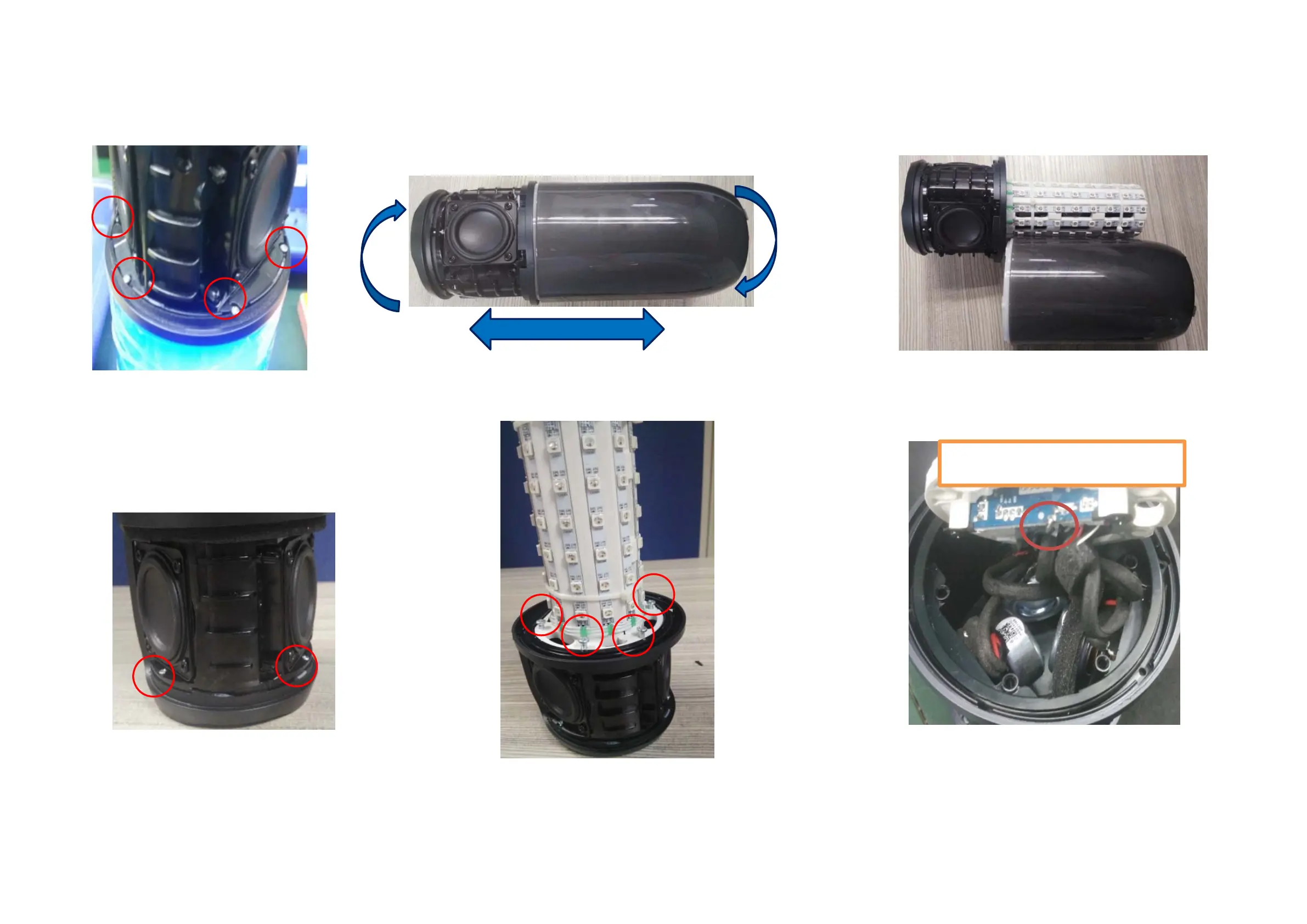

Remove the
3PCS screws as
shown
7. Remove the
6PCS screws
as shown
8-1. Turn
around
form left to right
to
make diffuser
loose
8-2. Pull
out the diffuser
on horizon
direction
10.
Remove the 6PCS screws
as
shown
11.
Pull
out all speaker
lines from
sockets and
Mic soldering point
Mic
soldering
point
8
10
Table of Contents
Features and Benefits
3
Product Specifications
3
Important Safety Instructions
4
Safety Precautions
6
Leakage Current Check
6
Tool List
7
Layout Diagram - Main Board
17
Revision List
25
