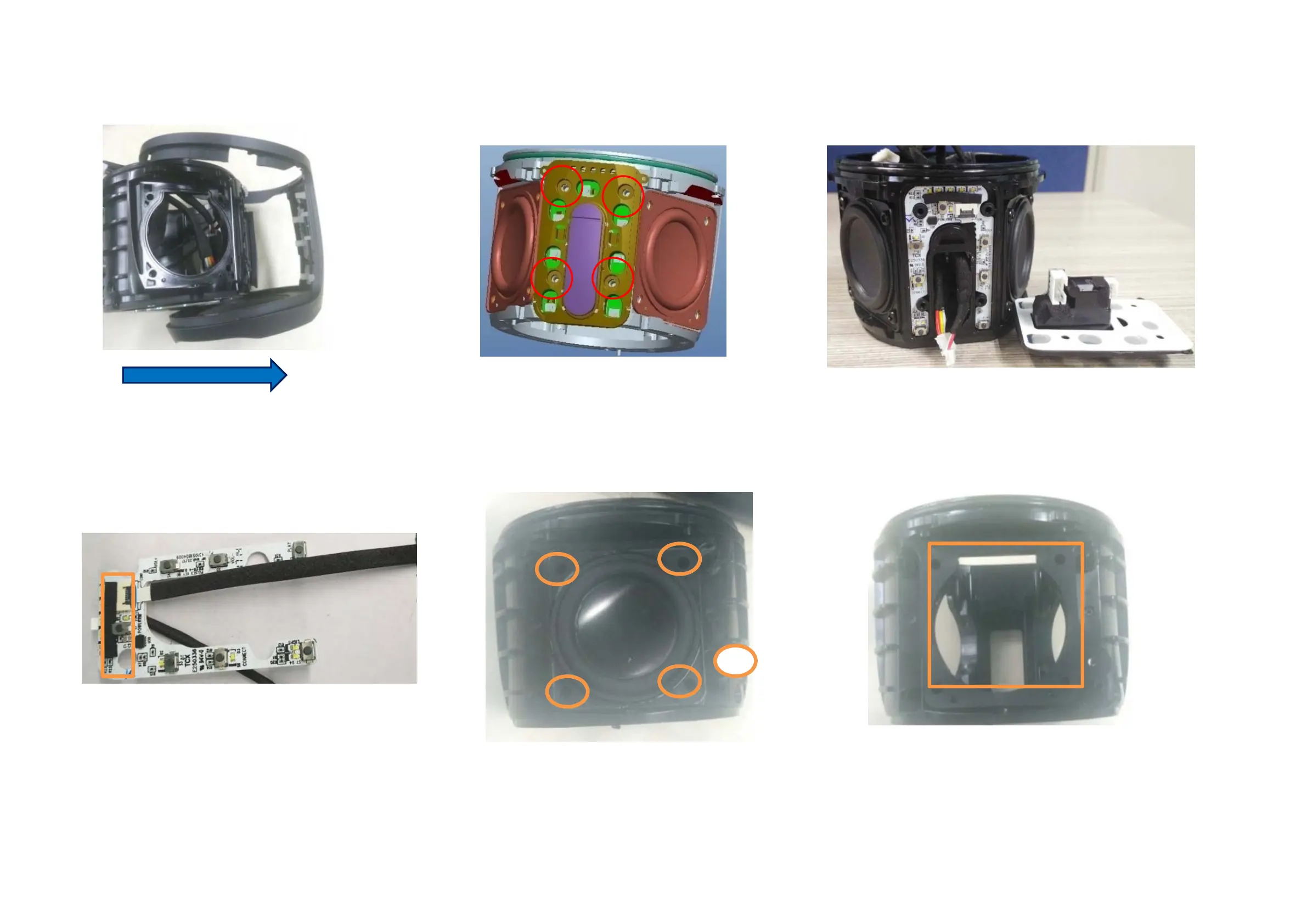

14. Pull out Key board ,
Note: EVA can’t cover LED
13-1. Remove the 4PCS screws
15-1. Remove speaker screws as
shown, especial attention:
12. Pull out the core body as shown
15-2. lay a seal rubber pad as shown
13-2. Pull out USB line and AUX line from sockets
and take out I/O cover as shown
To Next Page
