Harman JBL PULSE 3 - Page 11

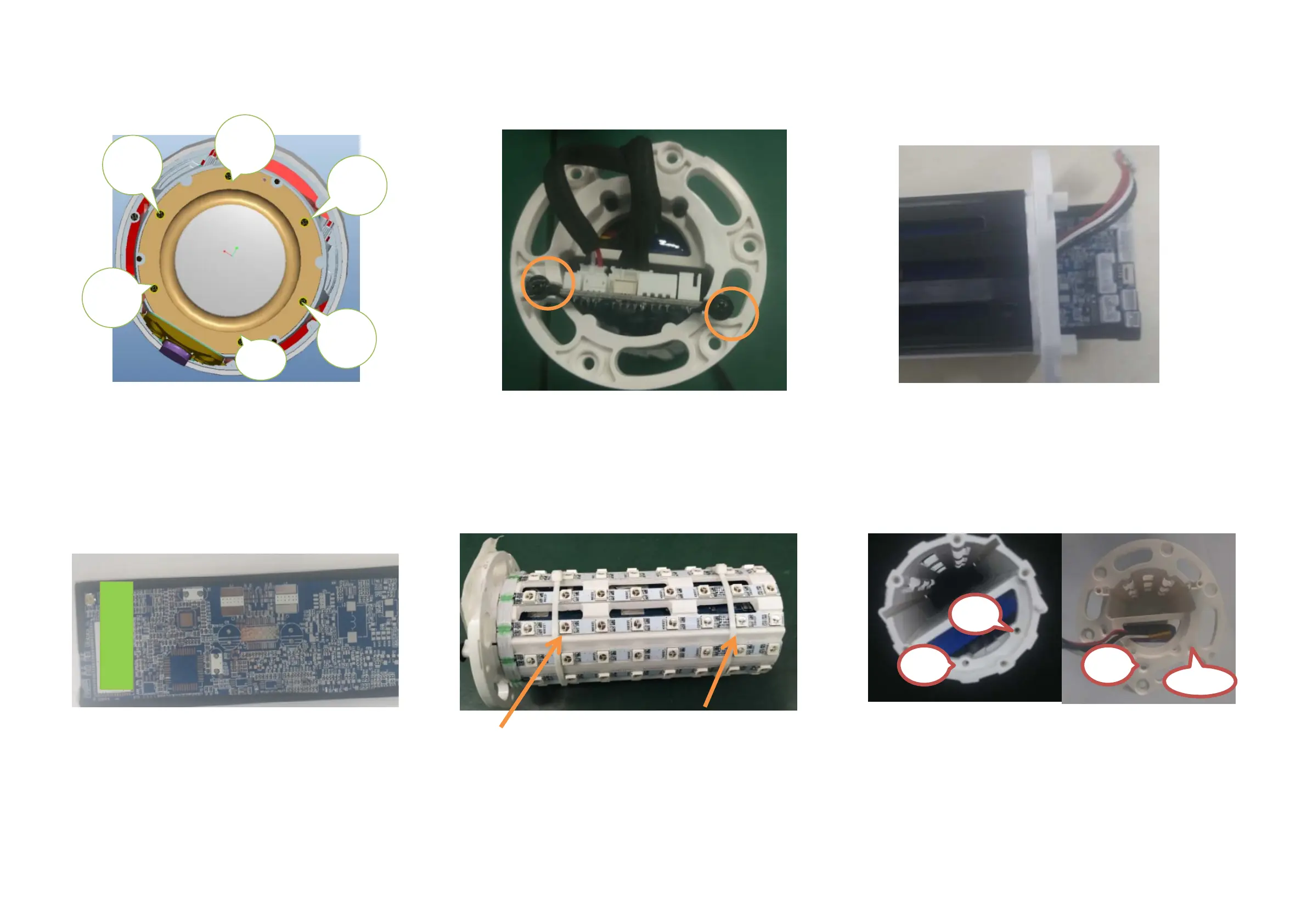

18-2. 2PCS EVA as shown
18-1. Pull out line from sockets
as shown
19. Cut the cable tie as shown
16. Remove the 6PCS screws for PR
20. Remove 4 screws as shown
17. Remove the 2 screws as shown
1
5
4
3
2
6
