Harman JBL PULSE 3 - Page 12

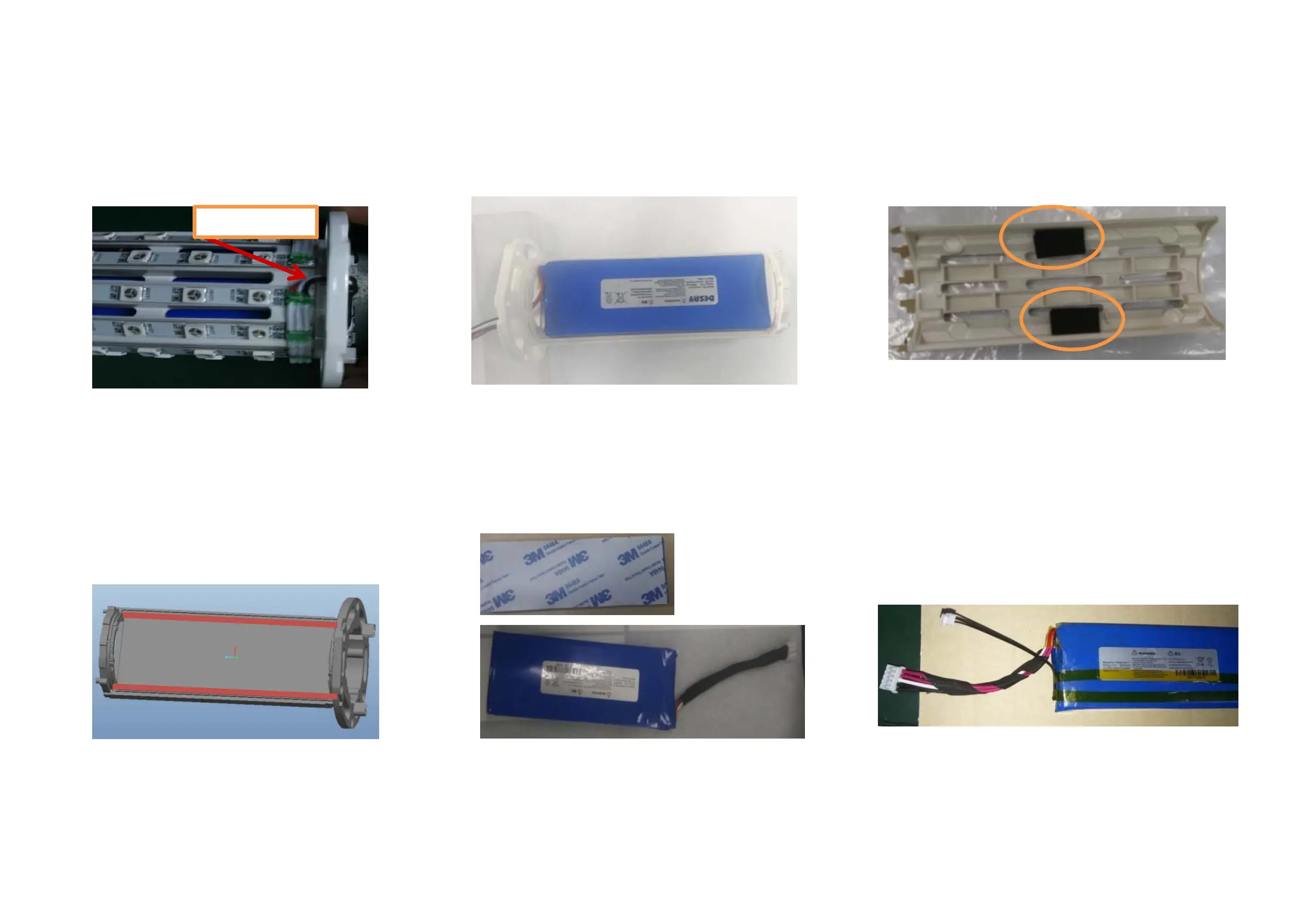

22-3. Dip seal glue as shown
22-2. 2PCS EVA as shown
23-1. Stick 3M glue on battery
21. Take away LED board, the LED board
can’t be used when re-assembled
23-2. NTC was attached with special
glue tape
22-1. Open the battery top cover
Start point
