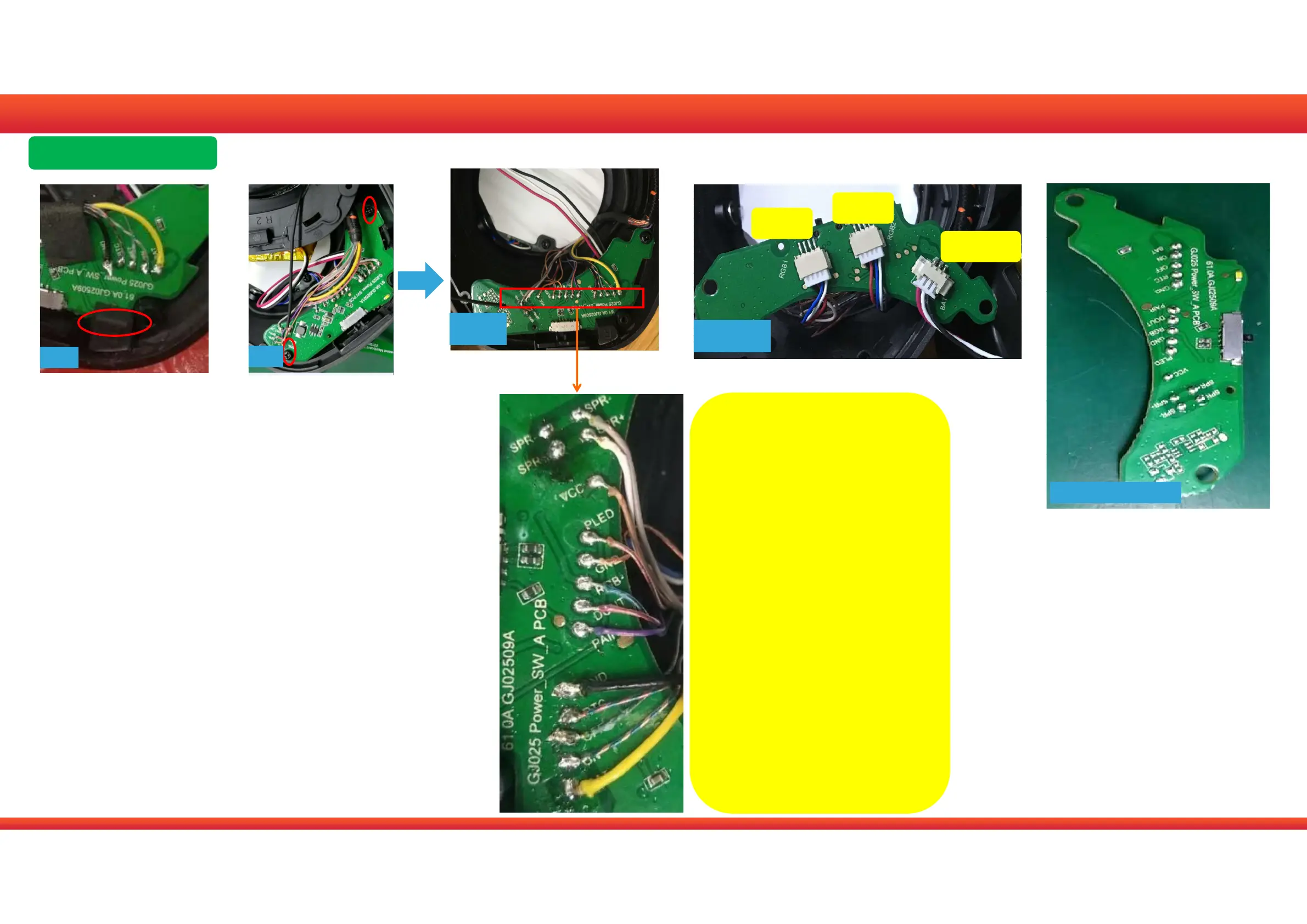

Page #7 background imageLoading...
Page #7 background image
SPR gray
SPR+ white
VCC tangerine color
PLED red copper
GND coppery
RGB blue
DOUT red
PAIR purple
GND black
RTC red and blue
OFF green
ON copper blue
BAT yellow
UPPER
SIDE
RGB1
RGB2
Battery
BOTTOM
SIDER
15.Unplug the rgb1 and rgb2 battery sockets
14.Welding right PCBA head belt
line
POWER PCBA
R side-Power PCBA
R
R
12.Dismantle the
lampshade & lamp by
tweezers from R side
13. Remove the EVA and
screws from R side
Q600 dismantle instruction
