Magnare Series Coal Stoves5
3-90-70746R12_10/13
1. Safety Considerations:
1.1 KEEP CHILDREN AWAY - MAY CAUSE SERIOUS
BURNS.
1.2 FUEL / FIRING INFORMATION.
DANGER! FIRE HAZARD! DO NOT USE CHEMICALS
OR FLUIDS TO START OR “FRESHEN UP” A FIRE.
SEVERE BODILY INJURY AND/OR A FIRE IN THE HOME
MAY RESULT. DO NOT BURN GARBAGE, GASOLINE,
THINNERS, KEROSENE, OR FUEL OIL, ETC. AN
EXPLOSION, A HOUSE FIRE OR PERSONAL INJURY
COULD RESULT. KEEP ALL SUCH LIQUIDS WELL
AWAY FROM THE STOVE WHILE IN USE.
1.3 CURING PAINT.
MOBILE HOMES.
2. Assembly & Installation:
2.1 UNPACKING AND INSPECTION OF PARTS.
2.2 LOCATING THE STOVE.

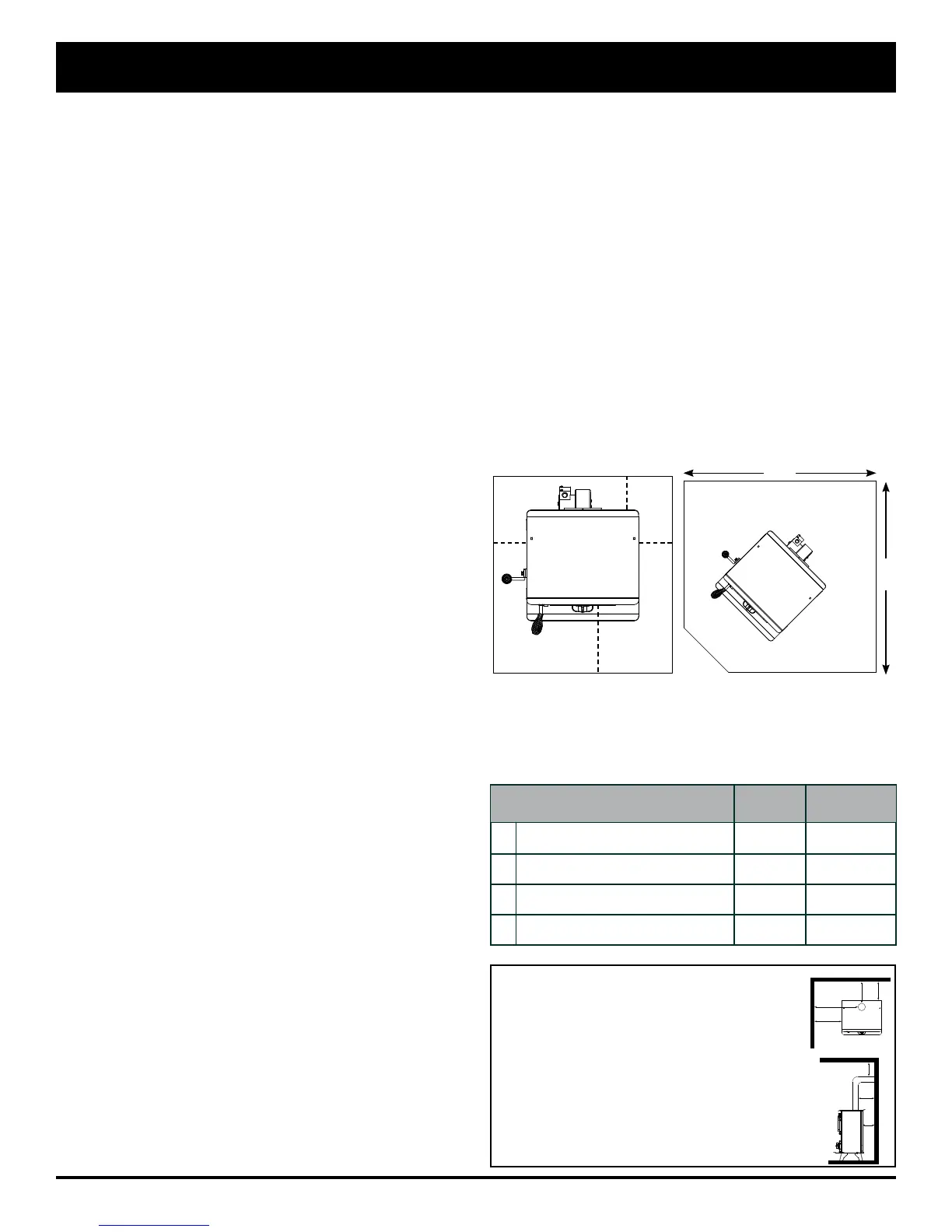

Installation
Alternate oor protector dimension may be used as long as they satisfy
the measurement requirements shown below.
Minumum size oor protection for a corner installation hearth pad is
48" x 48" (USA ONLY).
8” 8”
16”
8”
48"
48"
L
J
Floor Protection
Requirements
L
K
BACKWALL
SIDEWALL
A
C
BD
STOVE
H
D
B
CLEARANCE TO COMBUSTIBLE SURFACES
A - Unit to Sidewall 33”
B - Unit to Backwall 24”
C - Single Wall Chimney Connector to Sidewall 42”
D - Single Wall Chimney Connector to Sidewall 18”
E - Floor Protector, Side and Rear 8”
F - Floor Protector, Front 16”
H - Pipe Connector to Ceiling 18”*
* Not Tested - NFPA Guidelines
