VENTING

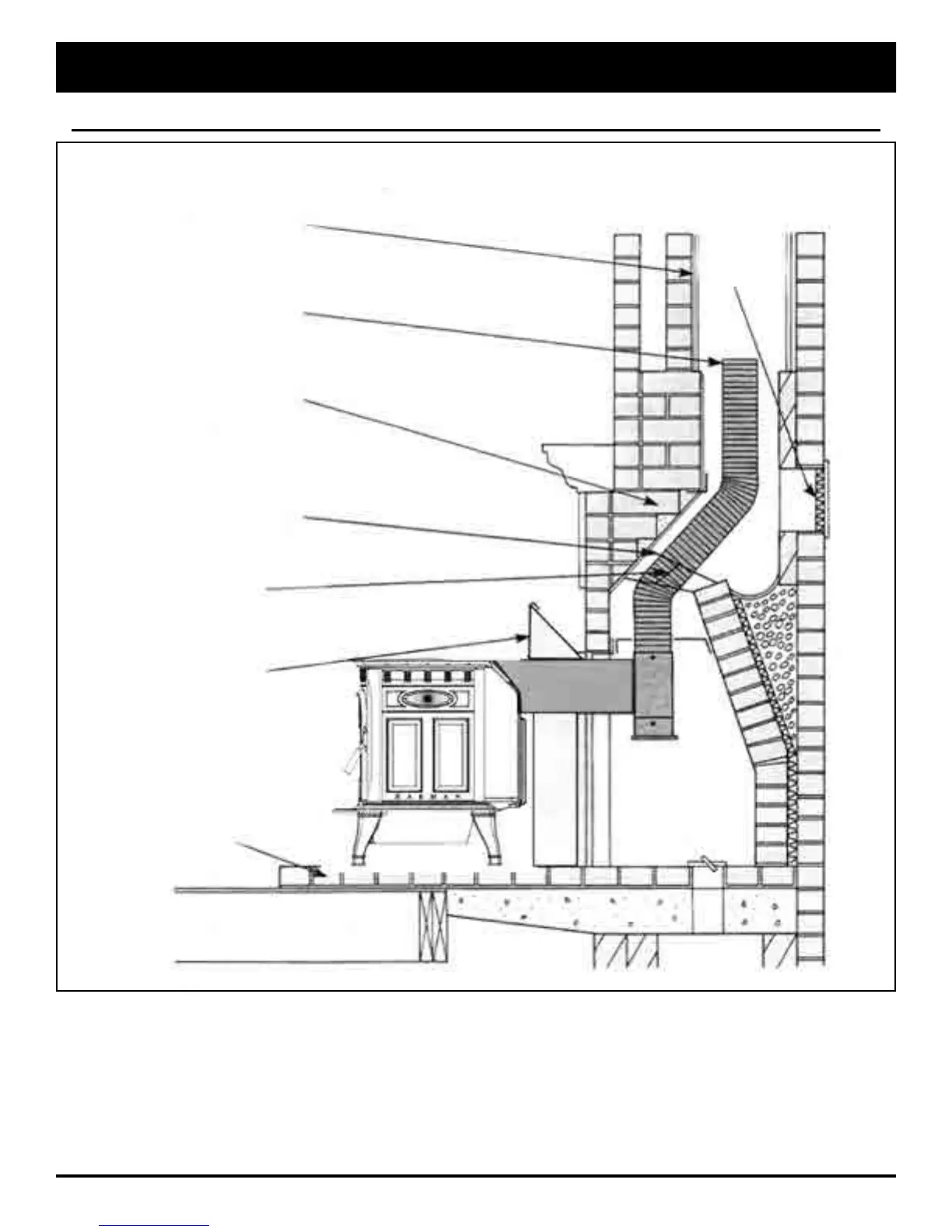

Oakwood to Flue Fireplace Conversion (Minimum NFPA 211 Liner Connection)
Flue Liner with Required
Air Space
Stainless Steel Chimney
Connector Must Extend to
Flue Liner
Minimum 8" Masonry
Thickness in Front of
Smoke Chamber
Use Damper Adapter
or Seal with Non-
Combustible Material
*Floor Protection in Accordance with Solid Fuel Appliance Listing
Airtight
insulated
Clean-Out
Damper Plate is Removed
or Fastened in Open
Position
Listed Fireplace Trim
Protection for Reduced
Clearance
Floor Protection*
Combustible Floor
