Service Parts
Oakwood
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or
distributor.
Hearth and Home Technologies does not sell directly to consumers. Provide
model number and serial number when requesting service parts from your dealer or distributor.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
32.1 Combustion Package 3-40-06999 Y
Gasket, Base Pkg of 2 3-44-06949-2 Y
Gasket Package, Side & Top 3-44-06997
Gasket, Brick Air Pkg of 4 3-44-2500202-4 Y
Package Cover 2-00-06996B Y
32.2 Inlet Brick Right 3-40-00104
Y
32.3 Logo Brick 3-40-00101
Y
32.4 Inlet Brick Left 3-40-00103
Y
32.5 Upper Brick Clip Pkg of 2 1-00-249172
Y
32.6 Rear Brick Clip Pkg of 2 1-00-249153
Y
32.7 Cast Left Inside Plate w/Gasket 1-10-249117A
Y
32.8 Grate 2-00-249122
Y
32.9 Cast Right Inside Plate w/Gasket 1-10-249118A
Y
32.10 Rear Brick Retainer Pkg of 2 1-00-249135
32.11 Shoe Brick 3-40-00100
Y
Gasket, shoe Brick 10 Ft 1-00-11862
Y
32.12 Side Brick Qty 2 req 3-40-00102
Y
Brick Insulation Qty 2 req 3-40-00250
Touch Up Paint
Pre 008427121 3-42-1990
Post 008427121 3-42-19905
Hardware Packages
Bolt, 5/16-18 x 2" Zinc Plated Carriage Pkg of 25 3-30-4001-25
Y
Bushing 3/8 OD X 1/4" OAL Pkg of 5
3-50-00058-5 Y
Nut,1/4"-20 Zinc Plated Finished Hex Pkg of 100 3-30-8004-100
Y
Screw, 5/16"-18 x 3/8" Alloy Steel Black Oxide Knurled Point SSS
Pkg of 25 3-30-2004-25
Y
Screw,1/4"-20 x 1" Alloy Steel Black Oxide Socket Head Cap Pkg of 50 3-30-3004-50
Y
Screw,1/4"-20 x 3/8" Alloy Steel Black Oxide Button Head Cap Pkg of 100 3-30-3014-100
Y
Washer, 1/4" Zinc Plated USS Flat Pkg of 100 3-30-0202-100
Y
Washer, 5/16" Zinc Plated SAE Flat
Pkg of 50 3-30-0205-50
Y
Washer-D 5/16 Pkg of 4
3-30-0400311-4
32.1
32.3
32.2
32.4
32.5
32.6
32.7
32.8
32.9
32.10
32.11
32.12

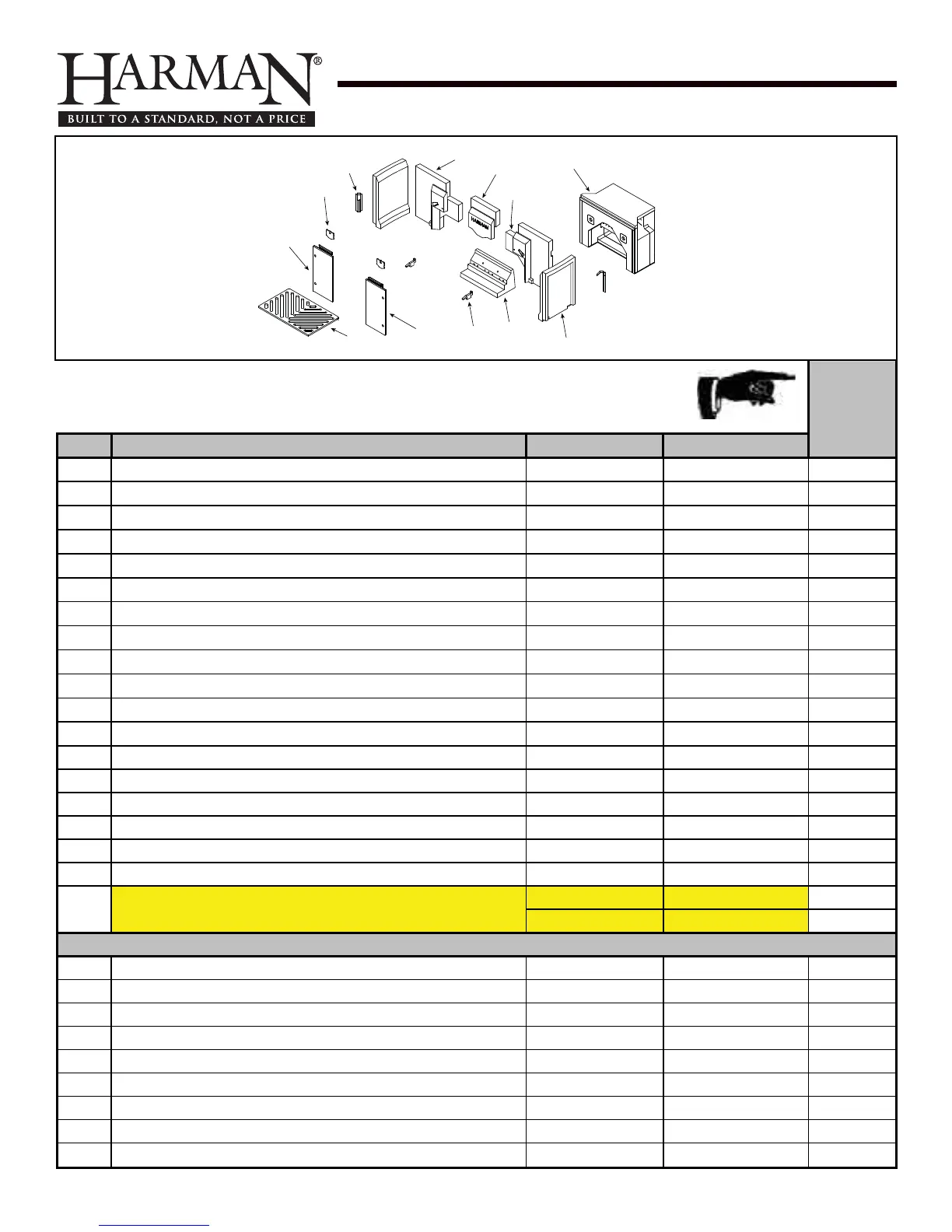

#32 Firebox Assembly
