Harman P43 Installation & Operating Manual

3-90-04301R18_03/13
37
P43 Pellet Stove
Service Parts
P43 Pellet
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM Description COMMENTS PART NUMBER
2 Feeder Assembly 1-10-09535A
2.1
Pellet Feeder Gear Motor, 4RPM 3-20-60906 Y
2.2
UL Feeder Cam Bearing 3-31-3014 Y
2.3
Feeder Crossover Kit 1-00-67900 Y
9MM Silicone Tube 5 Ft 1-00-511427 Y
2.4
Pellet Air Intake Assembly 1-10-06810A
2.5
Gasket Feeder Air Intake Pkg of 6 3-44-72224-6 Y
2.6
UL Feeder Air Intake 1-10-72222
2.7
Gasket Ultra Air Intake Pkg of 10 3-44-677160-10 Y
2.8
Ultra Feeder Weldment 1-10-724132 Y
2.9
UL Feeder Pusher Arm 1-10-677187W Y
2.10
Fines De ector No longer available 2-00-677138-10
2.11
Gasket, UL Feeder 1-00-677122 Y
2.12
Slide Plate Assembly 1-10-677121A Y
2.13
UL Feeder Auger Assembly 3-50-00565 Y
2.14
Bearing Flange w/Hardware 1-00-04035 Y
2.15
UL Feeder Gear Motor Bracket w/Grommet 1-00-247406 Y
2.16
UL Feeder Cam Block 3-00-677154 Y
Hopper Switch Feeder Fitting Pkg of 2 1-00-142818 Y
Motor Bracket Grommet Pkg of 12 3-31-2761-12
Pillow Block Pkg of 4 3-31-3614087-4 Y
Silicone Tubing, 1/8" 5 Ft 1-00-5113574 Y
Airwash O-Rings Pkg of 10 1-00-939639
Y
Arrow Burn Pot Scraper Pkg of 10 2-00-773850-10
Cradle Assembly
Igniter Holder, Cradle, & Flat Bottom
3 Sets 1-00-06620
Y
Additional service parts on following page.
2.7
2.6
2.5
2.4
2.3
2.2
2.1
2.15
2.16
2.8
2.9
2.10
2.11
2.12
2.13
2.14

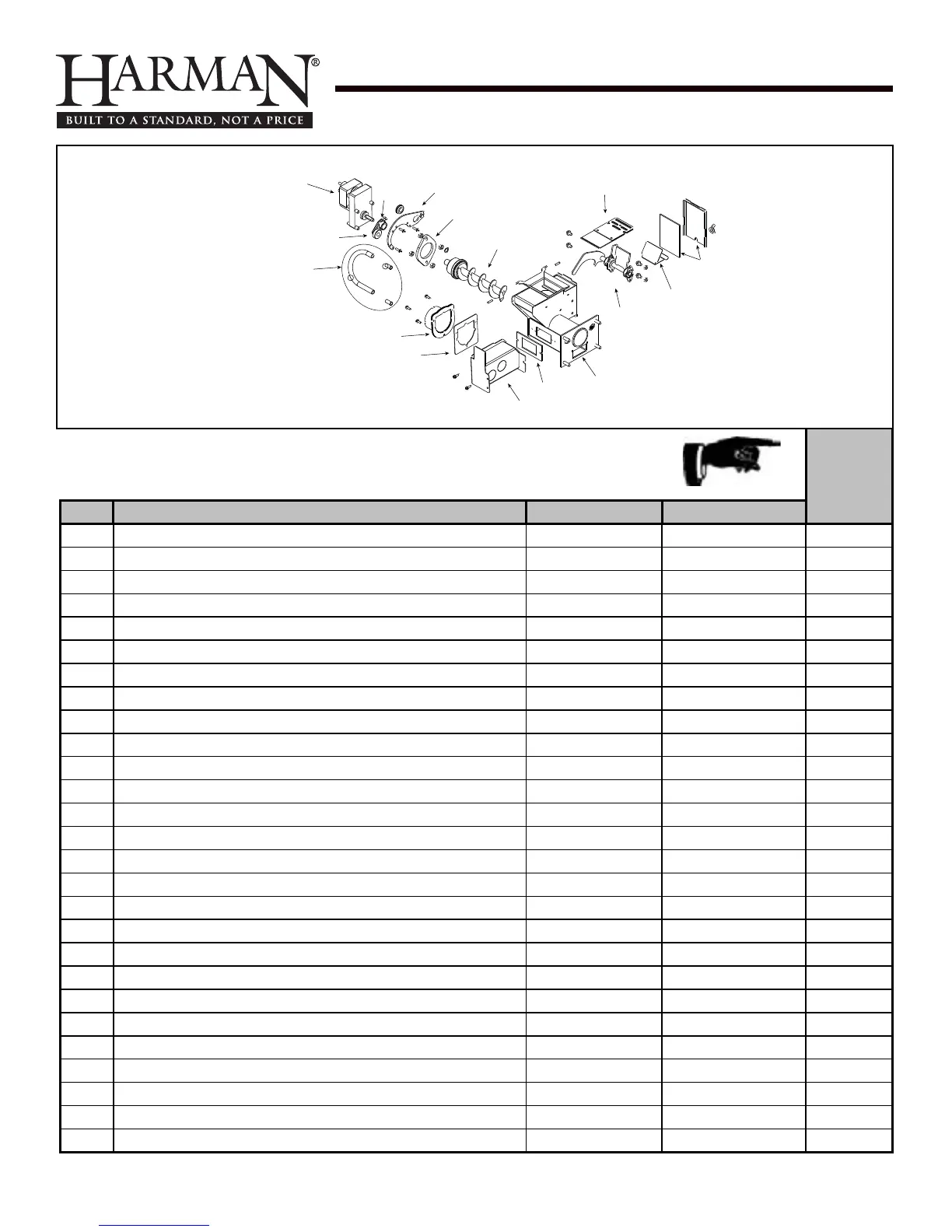

#2 Feeder Assembly
